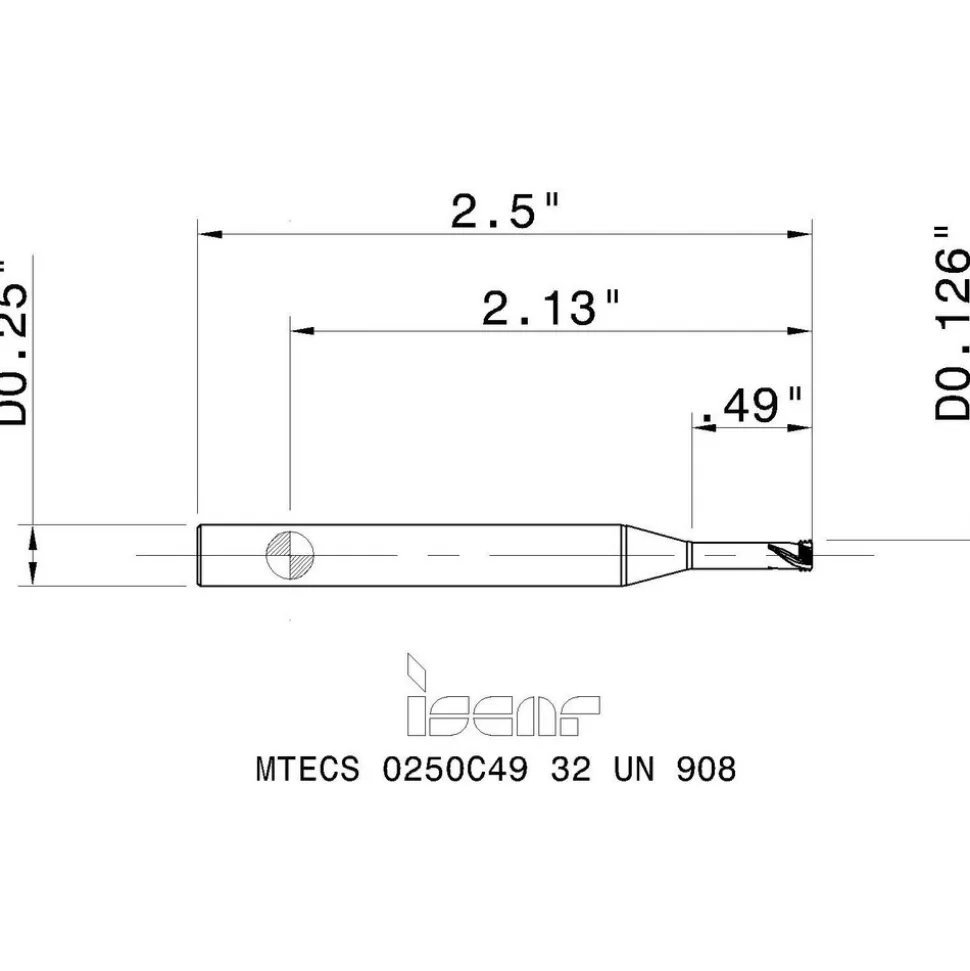

Helical Flute Thread Mill: #10#8, Internal, 3 Flute, 0.2500" Shank Dia, Solid Carbide

Helical Flute Thread Mill: #10#8, Internal, 3 Flute, 0.2500″ Shank Dia, Solid Carbide

124,89 $

SKU: SKUxy75nqB0Oo Categories: Shop All Products, Thread Mills, Threading Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Thread Type: Internal	Thread Size (Inch): #10;#8
Number Of Flutes: 3	Material: Solid Carbide
Coating/Finish: TiAlN	Length Of Cut (Decimal Inch – 4 Decimals): 0.4900
Overall Length (Decimal Inch): 2.5000	Shank Diameter (Decimal Inch): 0.2500
Cutting Diameter (Decimal Inch): 0.1260	Thread Standard: UNC; UNF
Flute Direction: Right Hand	Coolant Through: No
Teeth Per Inch: 32	UNSPSC Code: 23242117
Country of Origin: Israel
Thread Type: Internal
Thread Size (Inch): #10;#8
Number Of Flutes: 3
Material: Solid Carbide
Coating/Finish: TiAlN
Length Of Cut (Decimal Inch – 4 Decimals): 0.4900
Overall Length (Decimal Inch): 2.5000
Shank Diameter (Decimal Inch): 0.2500
Cutting Diameter (Decimal Inch): 0.1260
Thread Standard: UNC; UNF
Flute Direction: Right Hand
Coolant Through: No
Teeth Per Inch: 32
UNSPSC Code: 23242117
Country of Origin: Israel
