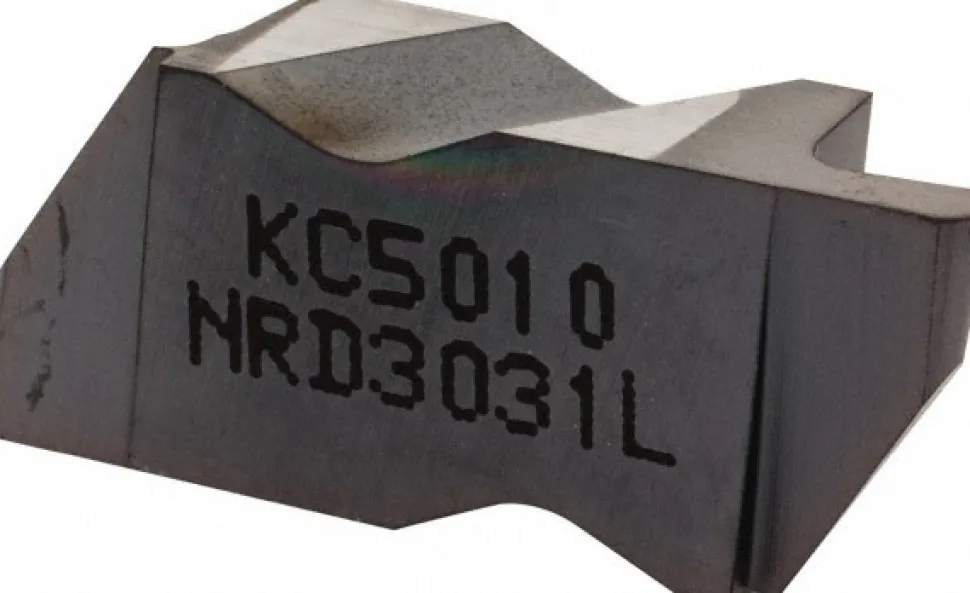

Grooving Insert: NRD3031L KC5010, Carbide

30,89 $

Specifications

Insert Style: NRD	Cutting Width (Decimal Inch): 0.0622
Cutting Width (mm): 1.58	Insert Hand: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.1252	Maximum Depth of Cut (mm): 3.18
Insert Material: Carbide	Manufacturer Grade: KC5010
Full Radius: Yes	Corner Radius (Decimal Inch): 0.0311
Corner Radius (mm): 0.79	Rake: Neutral
Measurement Type: Metric	Insert Size: 3031
Material Grade: C3; C4	Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 3.00 to 4.00	Multi-use Tool: No
Series: Top Notch	Coating Process: PVD
UNSPSC Code: 23242105	MSC/Manufacturer Number: NRD3031L

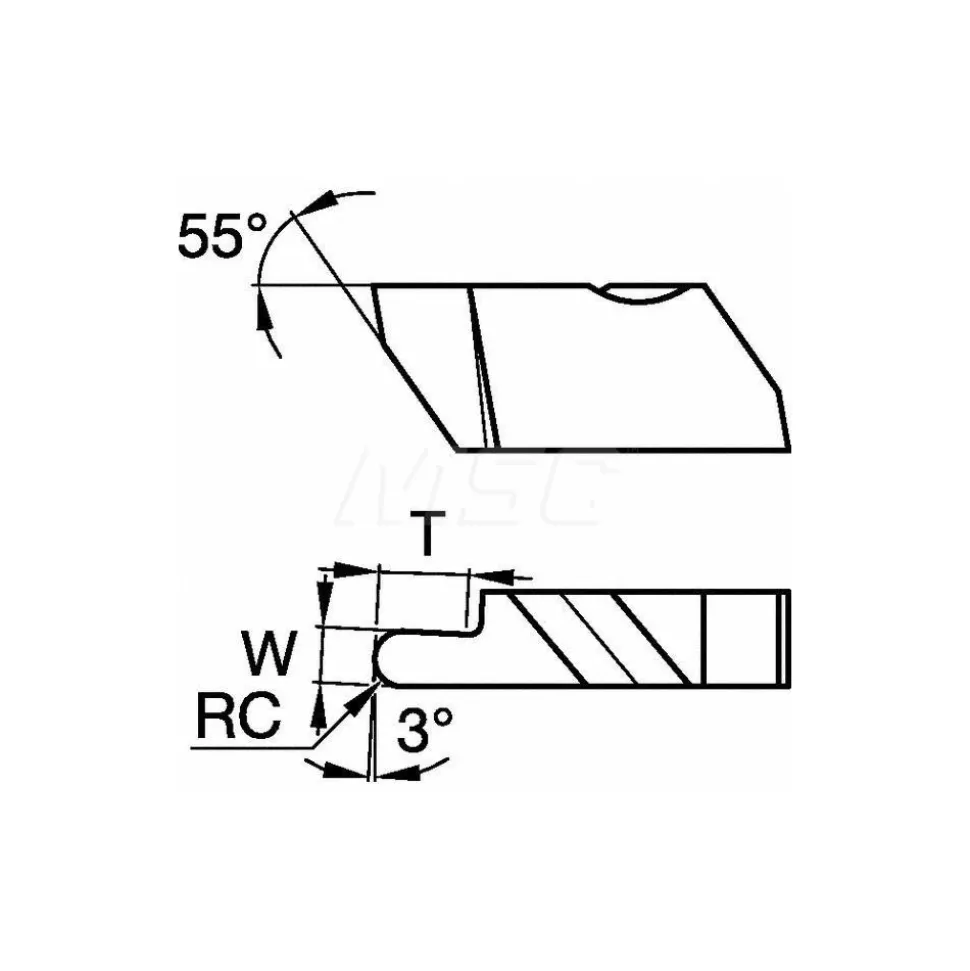

Included Angle Degree: 55	Coating/Finish: TiAlN
Country of Origin: UNITED STATES
Insert Style: NRD
Cutting Width (Decimal Inch): 0.0622
Cutting Width (mm): 1.58
Insert Hand: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.1252
Maximum Depth of Cut (mm): 3.18
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: Yes
Corner Radius (Decimal Inch): 0.0311
Corner Radius (mm): 0.79
Rake: Neutral
Measurement Type: Metric
Insert Size: 3031
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 3.00 to 4.00
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
UNSPSC Code: 23242105
MSC/Manufacturer Number: NRD3031L
Included Angle Degree: 55
Coating/Finish: TiAlN
Country of Origin: UNITED STATES
