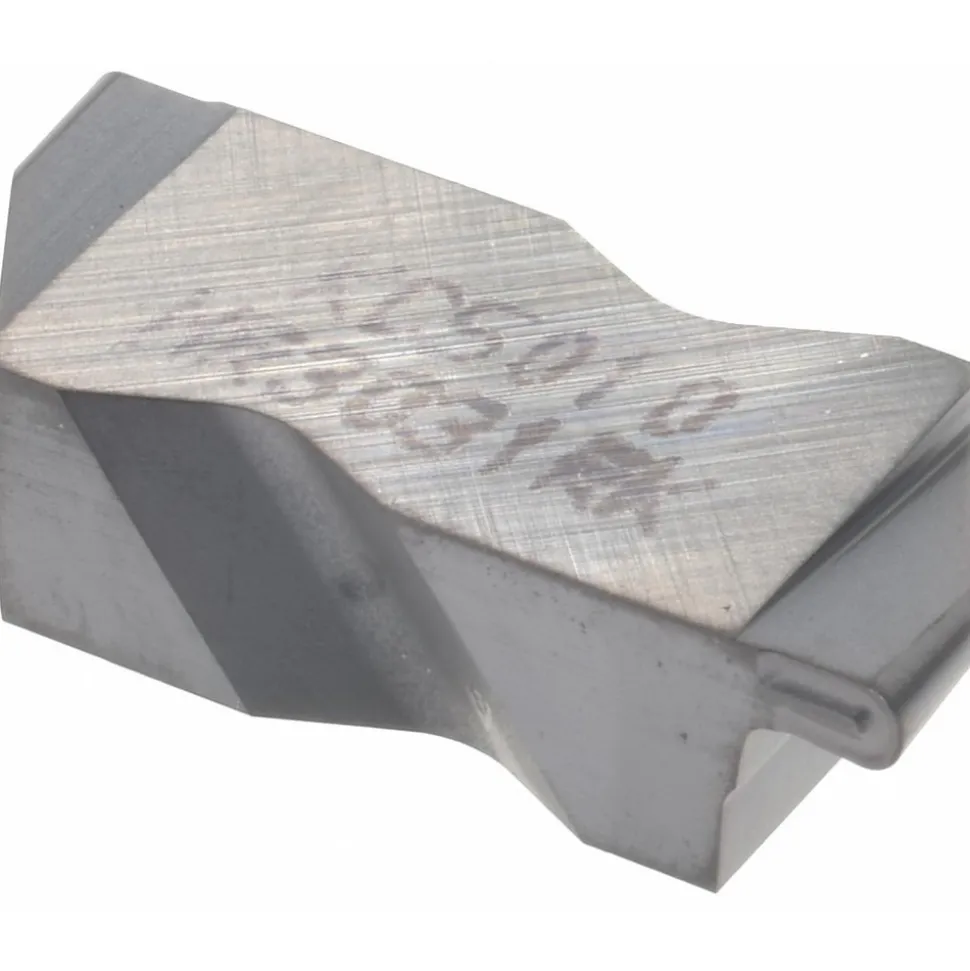

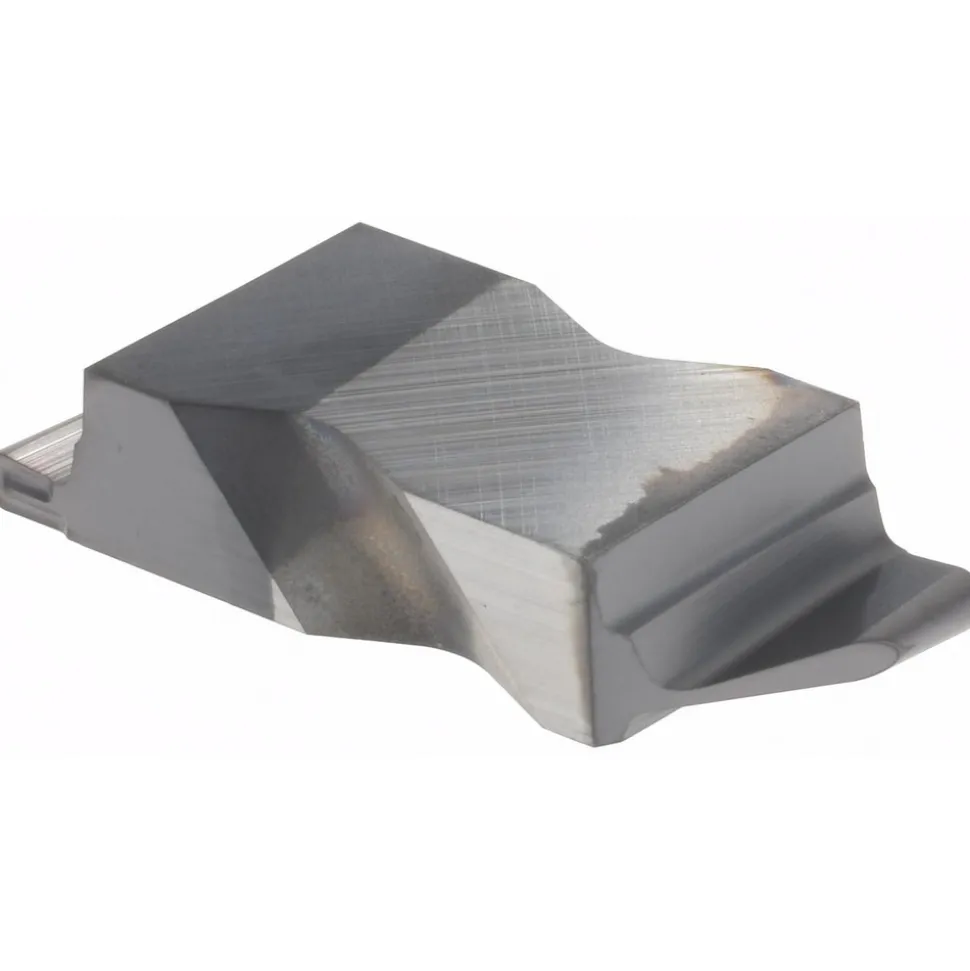

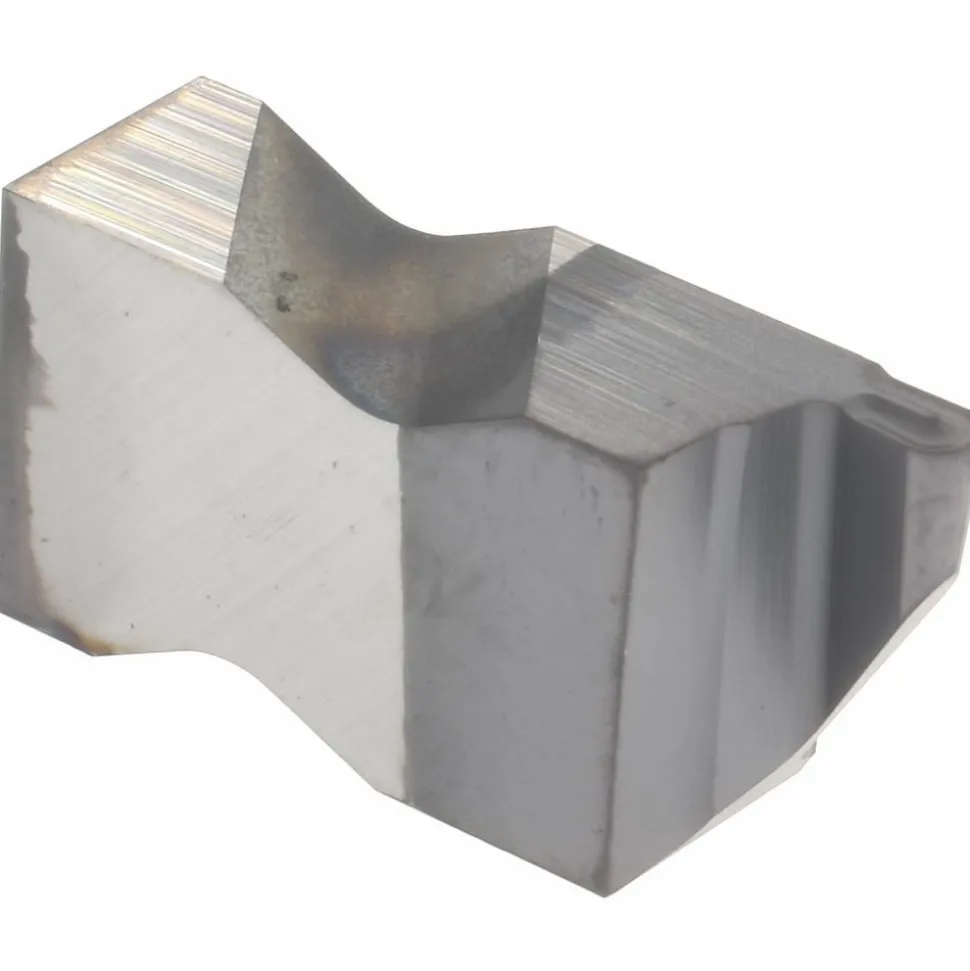

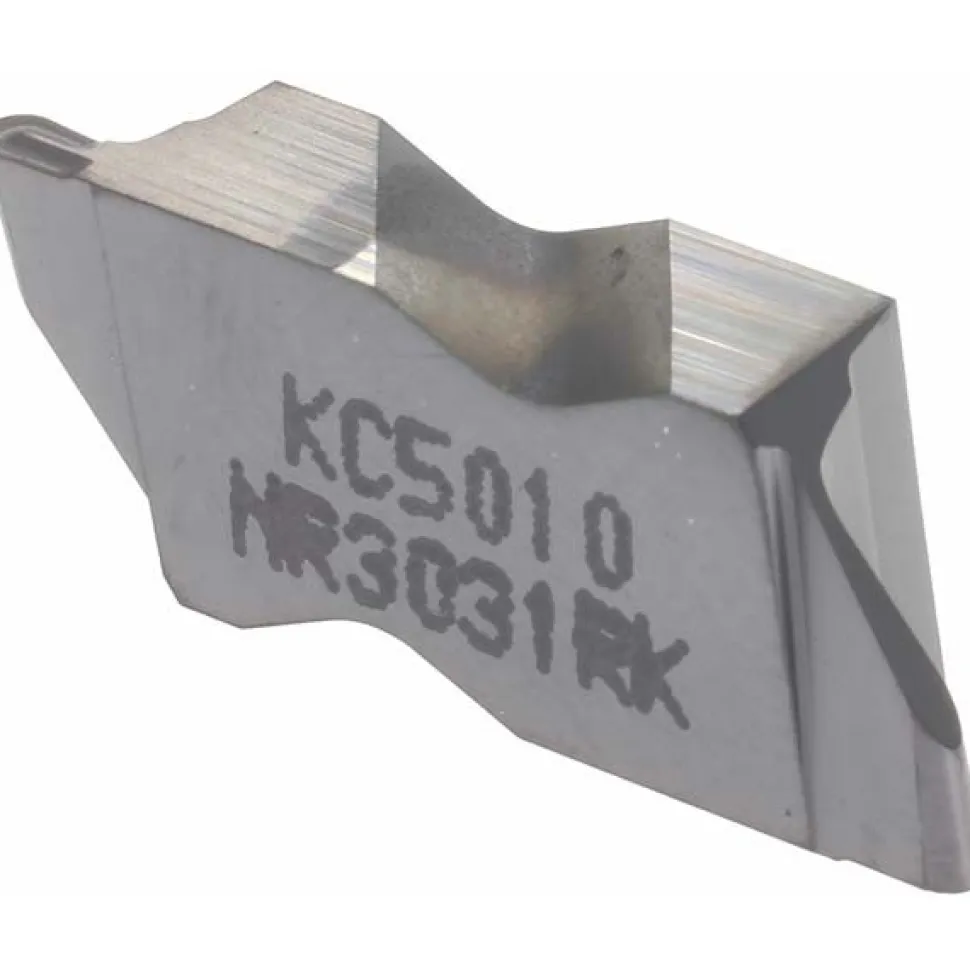

Grooving Insert: NR3031RK KC5010, Carbide

30,89 $

Specifications

Insert Style: NR	Cutting Width (Decimal Inch): 0.0622
Cutting Width (mm): 1.58	Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0941	Maximum Depth of Cut (mm): 2.39
Insert Material: Carbide	Manufacturer Grade: KC5010
Full Radius: Yes	Corner Radius (Decimal Inch): 0.0311
Corner Radius (mm): 0.79	Rake: Positive
Measurement Type: Metric	Insert Size: 3031
Material Grade: C3; C4	Maximum Depth Of Cut Range (Decimal Inch): 0.0750 to 0.1000
Maximum Depth Of Cut Range (mm): 2.00 to 3.00	Multi-use Tool: No
Series: Top Notch	Coating Process: PVD
Rake Angle: 10.000	UNSPSC Code: 23242105
Chip Breaker: K	MSC/Manufacturer Number: NR3031R/LK
Insert Height (Decimal Inch): 0.3440	Included Angle Degree: 55
Coating/Finish: TiAlN	Country of Origin: UNITED STATES
Insert Style: NR
Cutting Width (Decimal Inch): 0.0622
Cutting Width (mm): 1.58
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0941
Maximum Depth of Cut (mm): 2.39
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: Yes
Corner Radius (Decimal Inch): 0.0311
Corner Radius (mm): 0.79
Rake: Positive
Measurement Type: Metric
Insert Size: 3031
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.0750 to 0.1000
Maximum Depth Of Cut Range (mm): 2.00 to 3.00
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
Rake Angle: 10.000
UNSPSC Code: 23242105
Chip Breaker: K
MSC/Manufacturer Number: NR3031R/LK
Insert Height (Decimal Inch): 0.3440
Included Angle Degree: 55
Coating/Finish: TiAlN
Country of Origin: UNITED STATES
