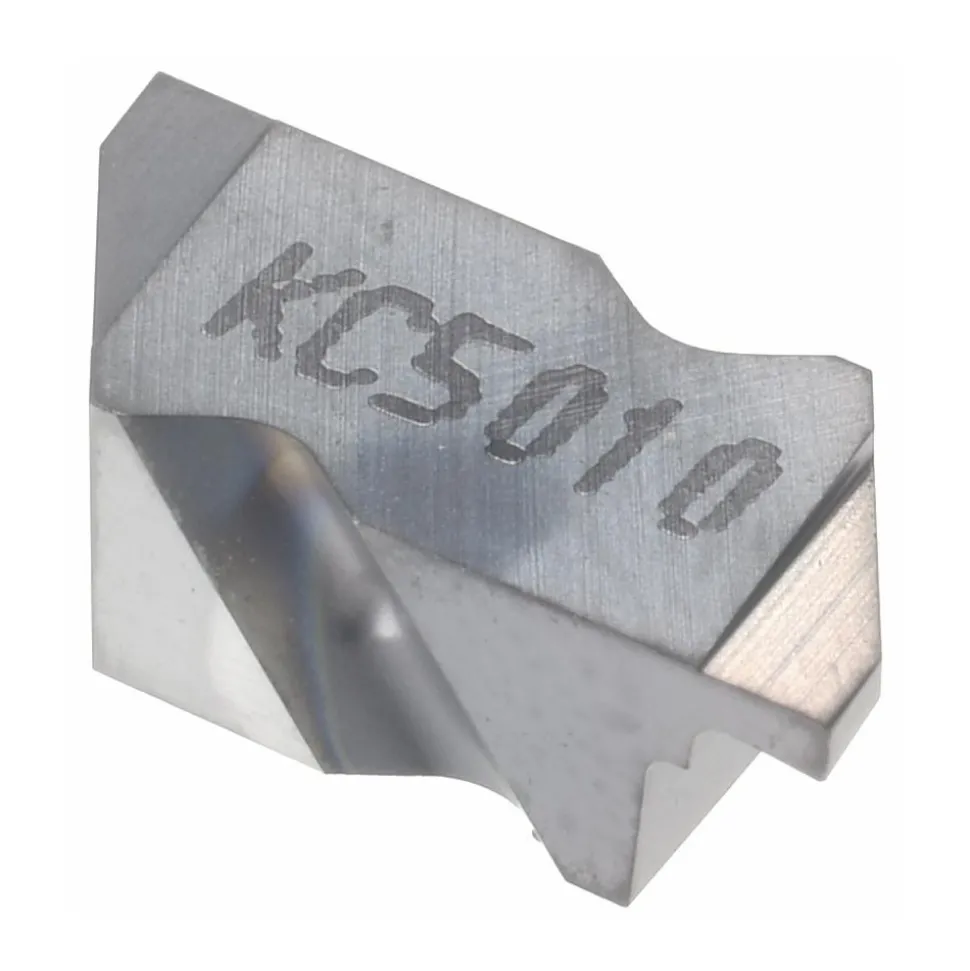

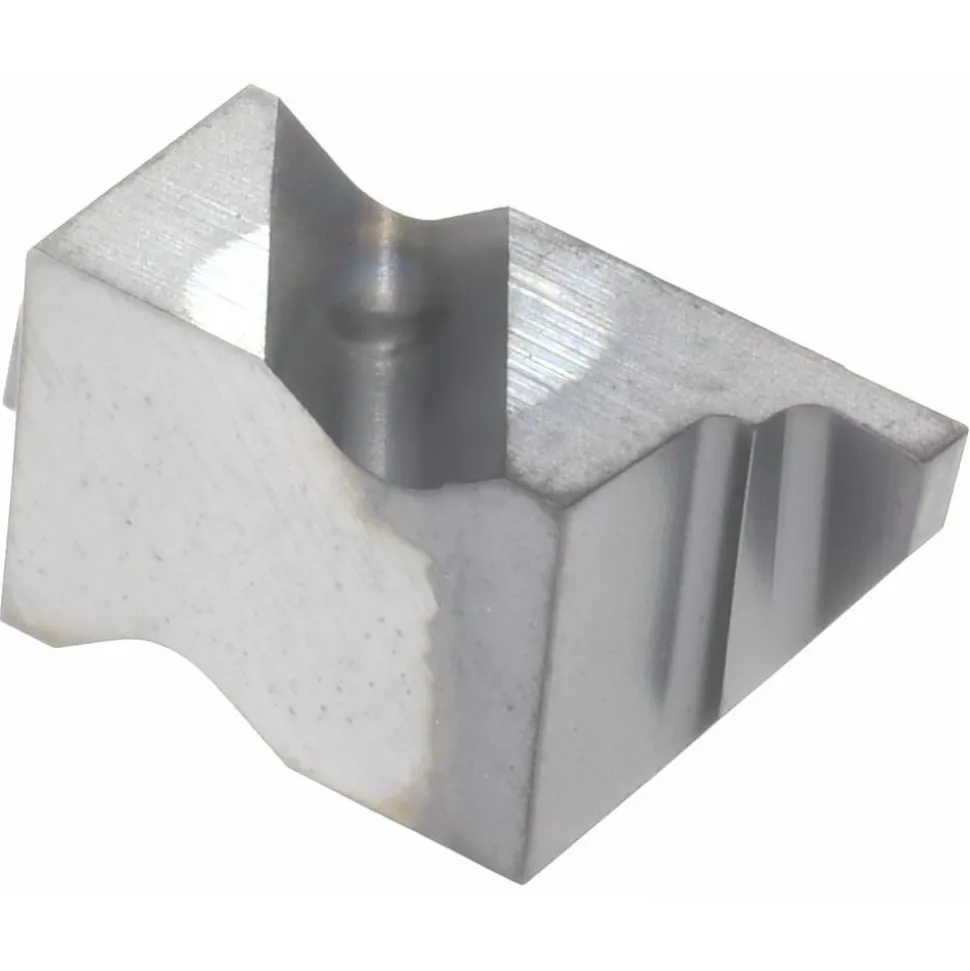

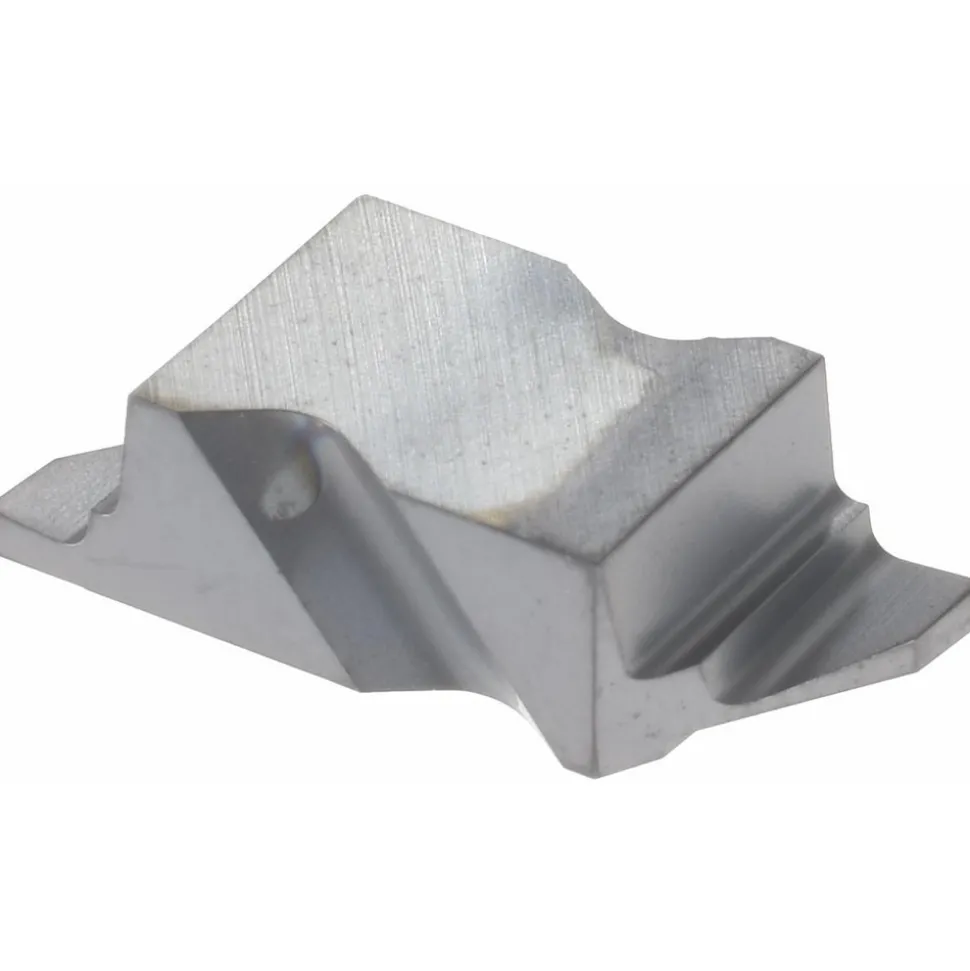

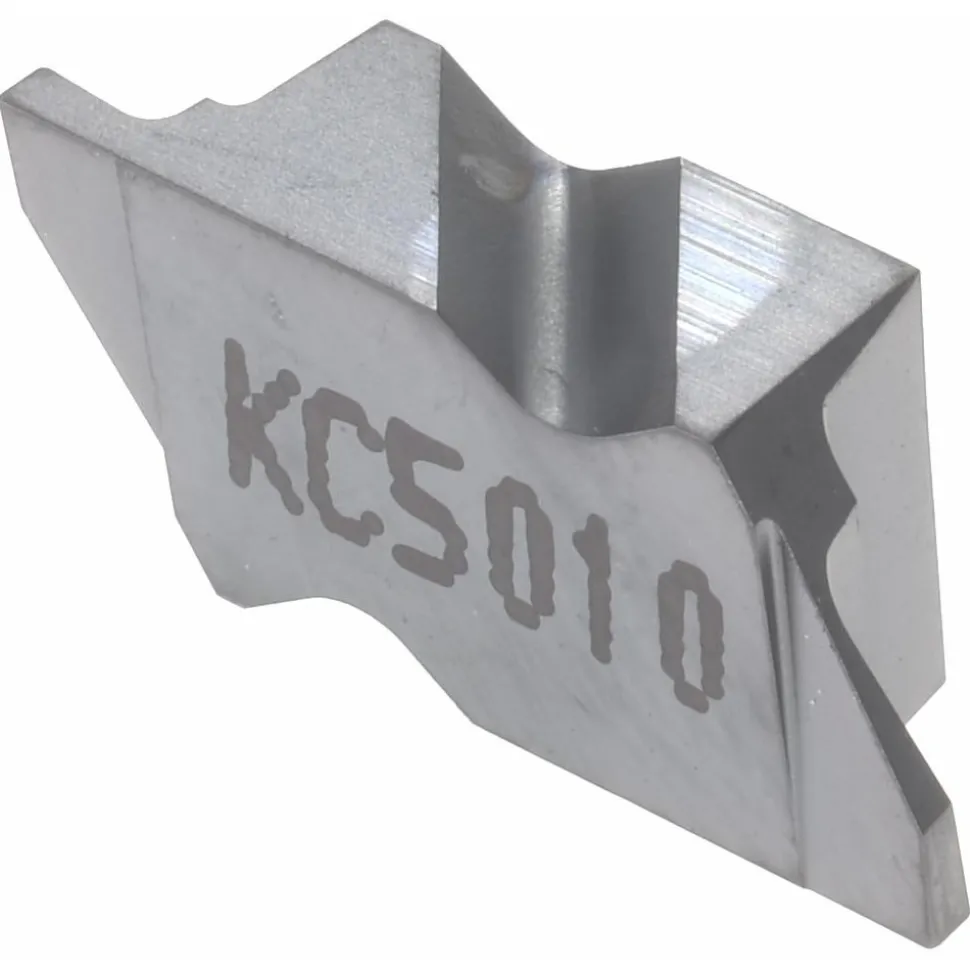

Grooving Insert: NG2031R KC5010, Carbide

30,99 $

Specifications

Insert Style: NG	Cutting Width (Decimal Inch): 0.0311
Cutting Width (mm): 0.79	Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0500	Maximum Depth of Cut (mm): 1.27
Insert Material: Carbide	Manufacturer Grade: KC5010
Full Radius: No	Corner Radius (Decimal Inch): 0.0035
Corner Radius (mm): 0.09	Rake: Neutral
Measurement Type: Metric	Insert Size: 2031
Material Grade: C3; C4	Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750
Maximum Depth Of Cut Range (mm): 0.00 to 2.00	Lead Angle: 3.000
Multi-use Tool: No	Series: Top Notch
Coating Process: PVD	UNSPSC Code: 23242105
MSC/Manufacturer Number: NG2031R/L	Insert Height (Decimal Inch): 0.2190

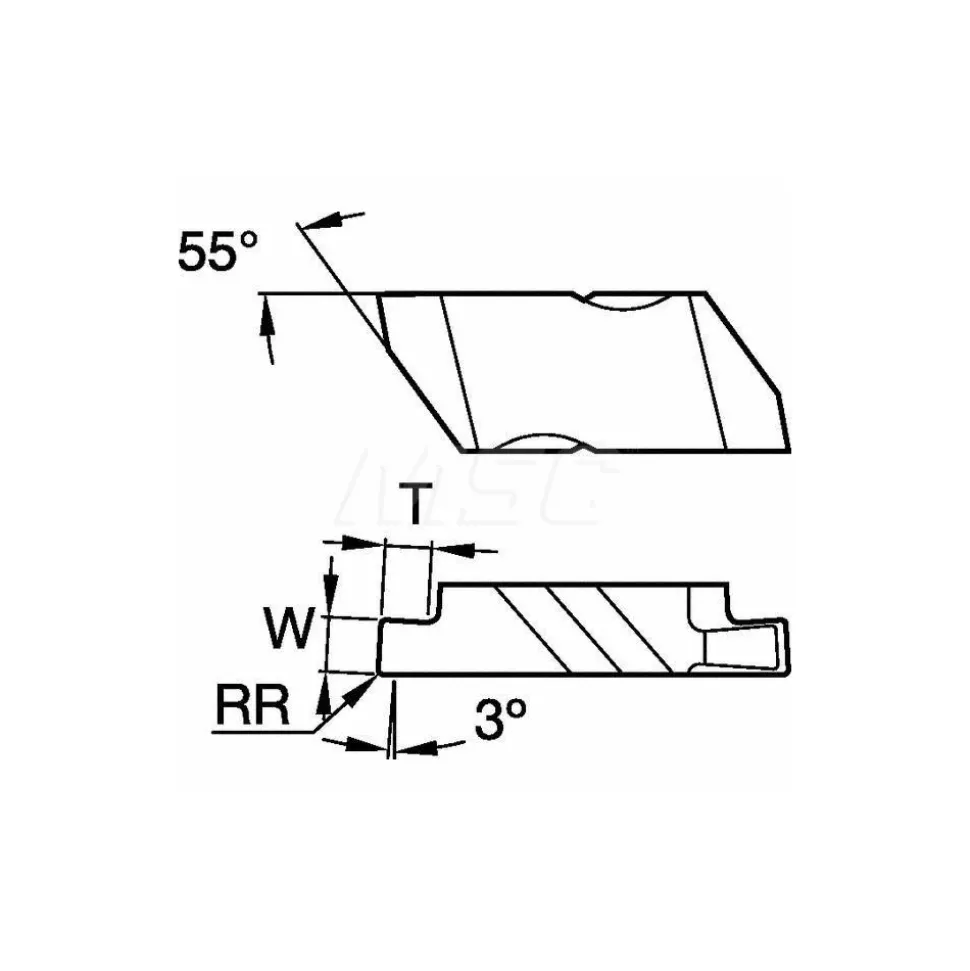

Included Angle Degree: 55	Coating/Finish: TiAlN
Country of Origin: UNITED STATES
Insert Style: NG
Cutting Width (Decimal Inch): 0.0311
Cutting Width (mm): 0.79
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0500
Maximum Depth of Cut (mm): 1.27
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: No
Corner Radius (Decimal Inch): 0.0035
Corner Radius (mm): 0.09
Rake: Neutral
Measurement Type: Metric
Insert Size: 2031
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750
Maximum Depth Of Cut Range (mm): 0.00 to 2.00
Lead Angle: 3.000
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
UNSPSC Code: 23242105
MSC/Manufacturer Number: NG2031R/L
Insert Height (Decimal Inch): 0.2190
Included Angle Degree: 55
Coating/Finish: TiAlN
Country of Origin: UNITED STATES
