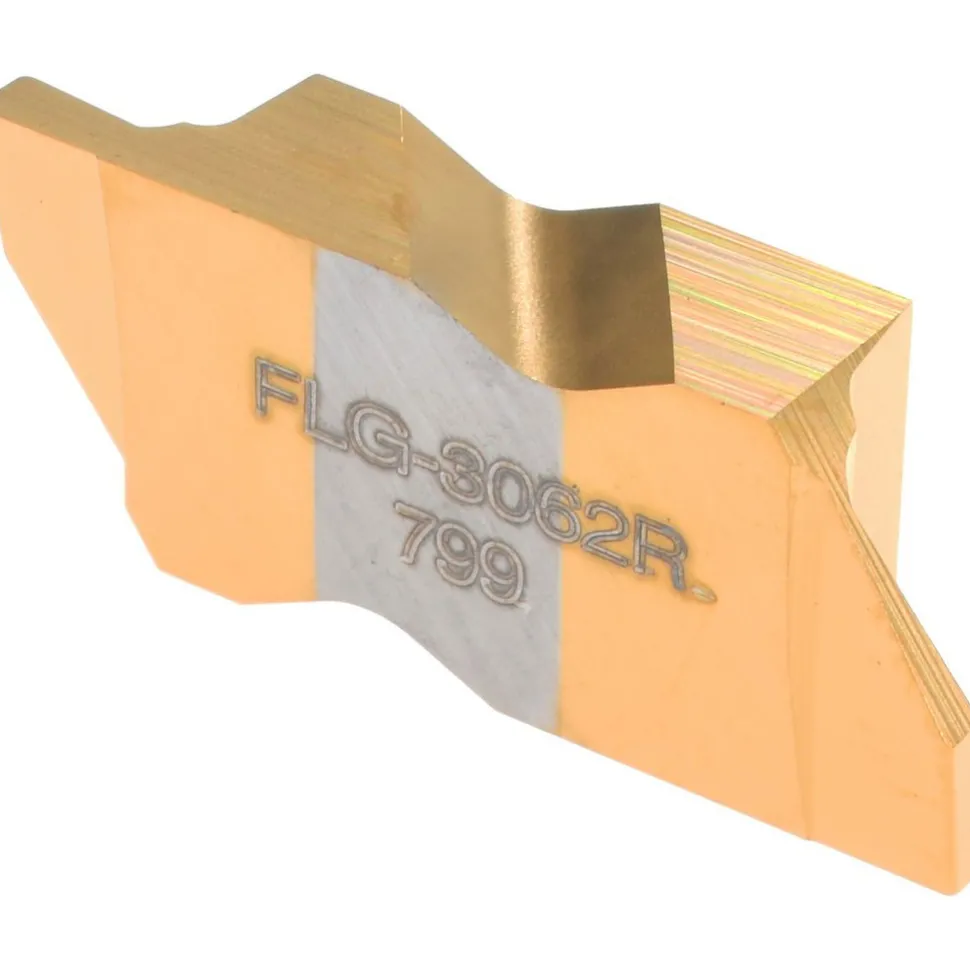

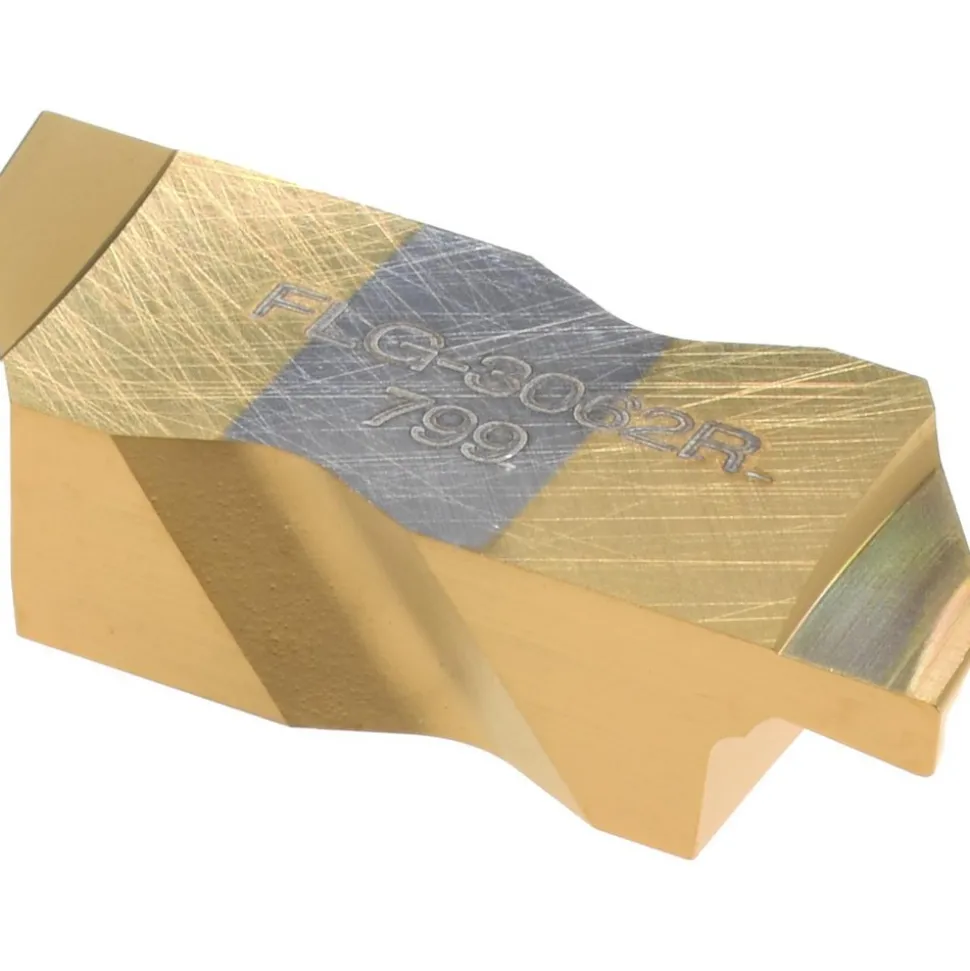

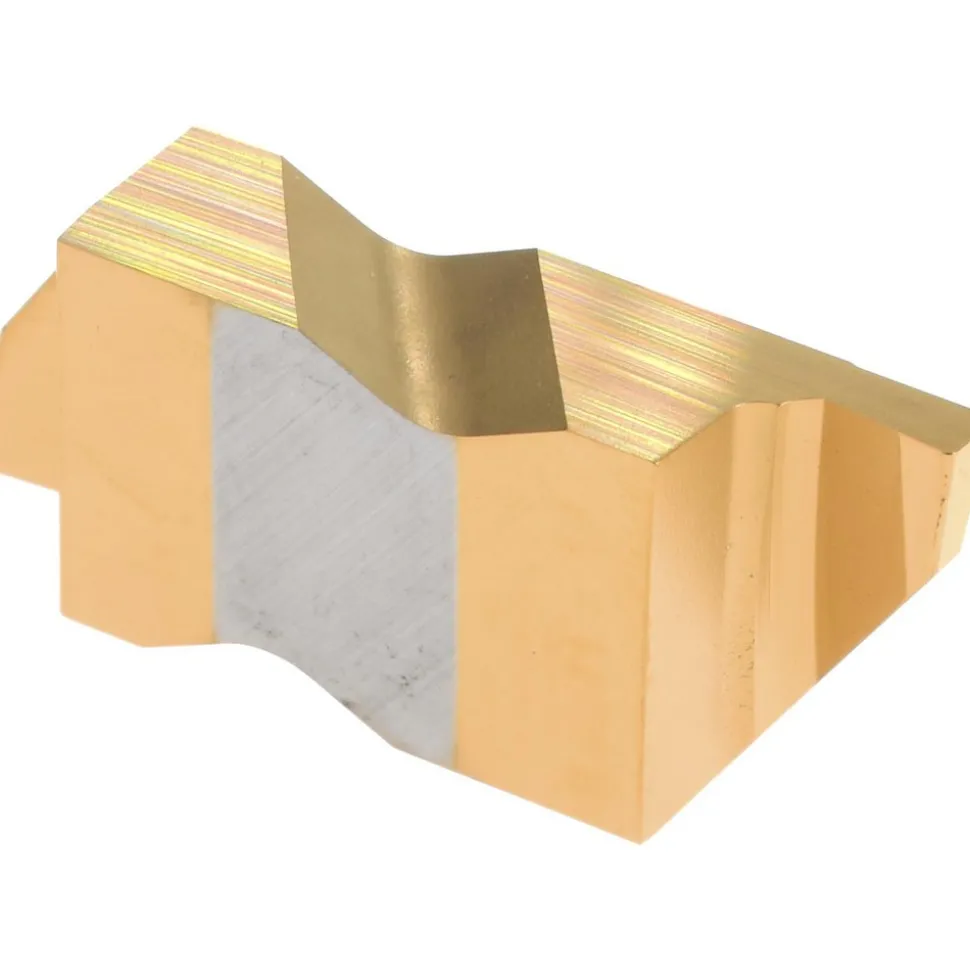

Grooving Insert: FLG-3062R GP50C, Carbide
21,99 $
Specifications
| Insert Style: FLG | Insert Size Code: 3062 |
| Cutting Width (Decimal Inch): 0.0618 | Cutting Width (mm): 1.57 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.1201 |
| Maximum Depth of Cut (mm): 3.05 | Insert Material: Carbide |
| Manufacturer Grade: GP50 | Full Radius: No |
| Corner Radius (Decimal Inch): 0.0050 – 0.0100 | Rake: Positive |
| Measurement Type: Metric | Insert Size: 3062 |
| Material Grade: C5; C6 | Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch): 0.3440 | Maximum Depth Of Cut Range (mm): 3.00 to 4.00 |
| Lead Angle: 3.000 | Multi-use Tool: No |
| Series: Flo-Lock | Coating Process: PVD |
| Rake Angle: 55.000 | Secondary Workpiece Material: Stainless Steel |
| Iso Code: FLG-3062R | UNSPSC Code: 23242105 |
| Gage Diameter (Decimal Inch): 0.3750 | Gage Diameter (Inch): 3/8 |
| Overall Width (Decimal Inch – 4 Decimals): 0.1950 | Coating/Finish: TiN |
| Country of Origin: UNITED STATES | |
| Insert Style: FLG | |
| Insert Size Code: 3062 | |
| Cutting Width (Decimal Inch): 0.0618 | |
| Cutting Width (mm): 1.57 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.1201 | |
| Maximum Depth of Cut (mm): 3.05 | |
| Insert Material: Carbide | |
| Manufacturer Grade: GP50 | |
| Full Radius: No | |
| Corner Radius (Decimal Inch): 0.0050 – 0.0100 | |
| Rake: Positive | |
| Measurement Type: Metric | |
| Insert Size: 3062 | |
| Material Grade: C5; C6 | |
| Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500 | |
| Cutting Height (Decimal Inch): 0.3440 | |
| Maximum Depth Of Cut Range (mm): 3.00 to 4.00 | |
| Lead Angle: 3.000 | |
| Multi-use Tool: No | |
| Series: Flo-Lock | |
| Coating Process: PVD | |
| Rake Angle: 55.000 | |
| Secondary Workpiece Material: Stainless Steel | |
| Iso Code: FLG-3062R | |
| UNSPSC Code: 23242105 | |
| Gage Diameter (Decimal Inch): 0.3750 | |
| Gage Diameter (Inch): 3/8 | |
| Overall Width (Decimal Inch – 4 Decimals): 0.1950 | |
| Coating/Finish: TiN | |
| Country of Origin: UNITED STATES |
| MSC# | 60651056 |
| Mfr# | 563662RN4C |
| Big Book# | 927 |
