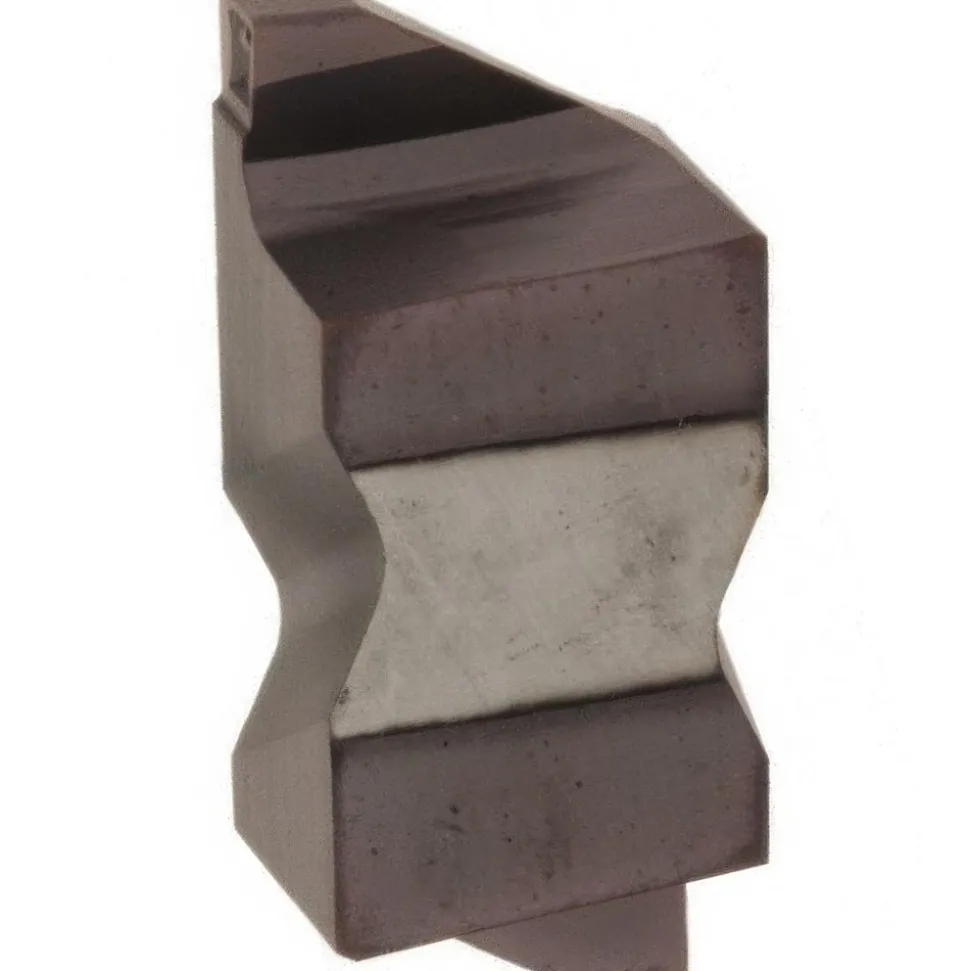

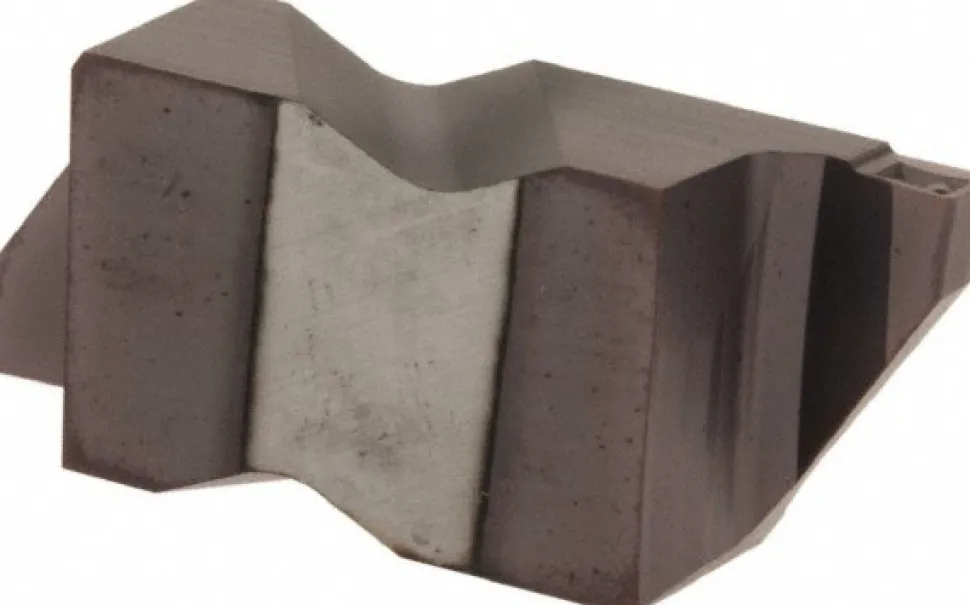

Grooving Insert: FLG-3031R AC3R, Carbide

24,89 $

Specifications

Insert Style: FLG	Insert Size Code: 3031
Cutting Width (Decimal Inch): 0.0310	Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0500	Insert Material: Carbide
Manufacturer Grade: AC3	Full Radius: No
Corner Radius (Decimal Inch): 0.0020 – 0.0050	Rake: Neutral
Measurement Type: Decimal Inch	Insert Size: 3031
Material Grade: C3; C2	Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750
Cutting Height (Decimal Inch): 0.3440	Lead Angle: 0.000
Multi-use Tool: No	Series: Flo-Lock
Coating Process: PVD	Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron
Iso Code: FLG-3031R	Manufacturers Catalog Number: FLG-3031R
Insert Thickness (Decimal Inch): 0.1950	UNSPSC Code: 23242105
Coating/Finish: AlTiN	Country of Origin: UNITED STATES
Insert Style: FLG
Insert Size Code: 3031
Cutting Width (Decimal Inch): 0.0310
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0500
Insert Material: Carbide
Manufacturer Grade: AC3
Full Radius: No
Corner Radius (Decimal Inch): 0.0020 – 0.0050
Rake: Neutral
Measurement Type: Decimal Inch
Insert Size: 3031
Material Grade: C3; C2
Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750
Cutting Height (Decimal Inch): 0.3440
Lead Angle: 0.000
Multi-use Tool: No
Series: Flo-Lock
Coating Process: PVD
Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron
Iso Code: FLG-3031R
Manufacturers Catalog Number: FLG-3031R
Insert Thickness (Decimal Inch): 0.1950
UNSPSC Code: 23242105
Coating/Finish: AlTiN
Country of Origin: UNITED STATES
