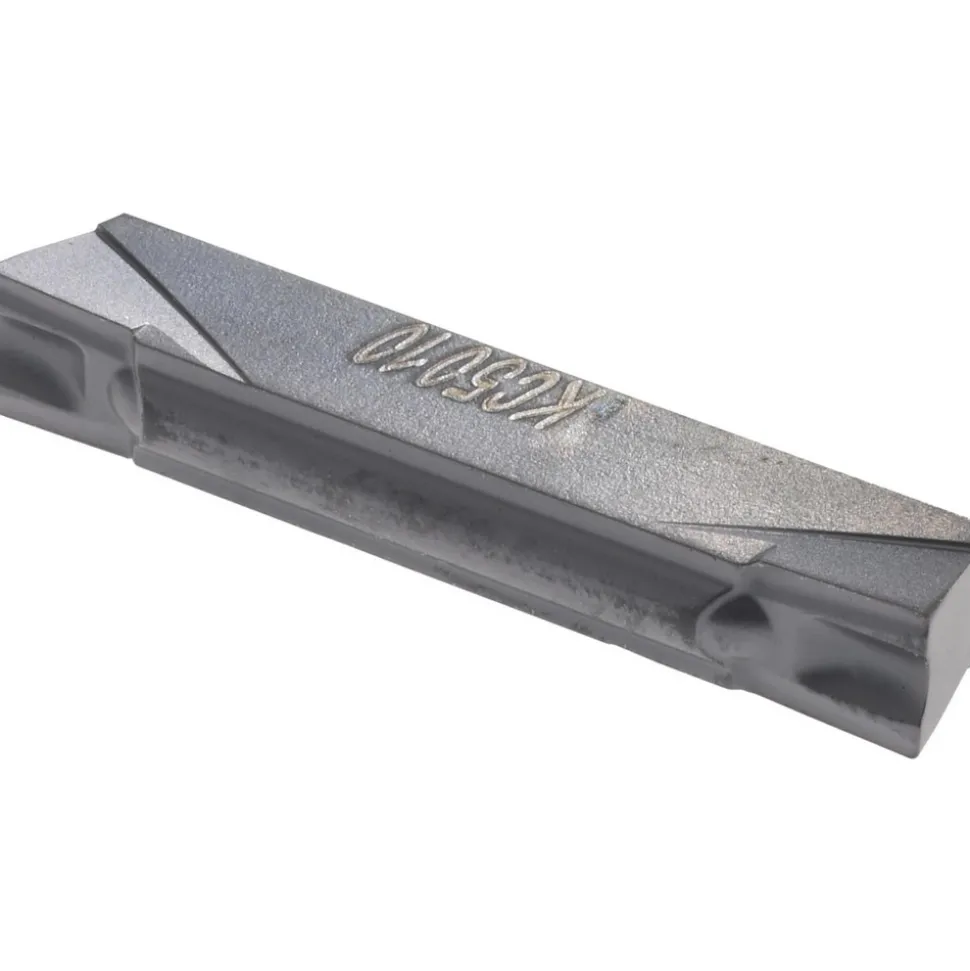

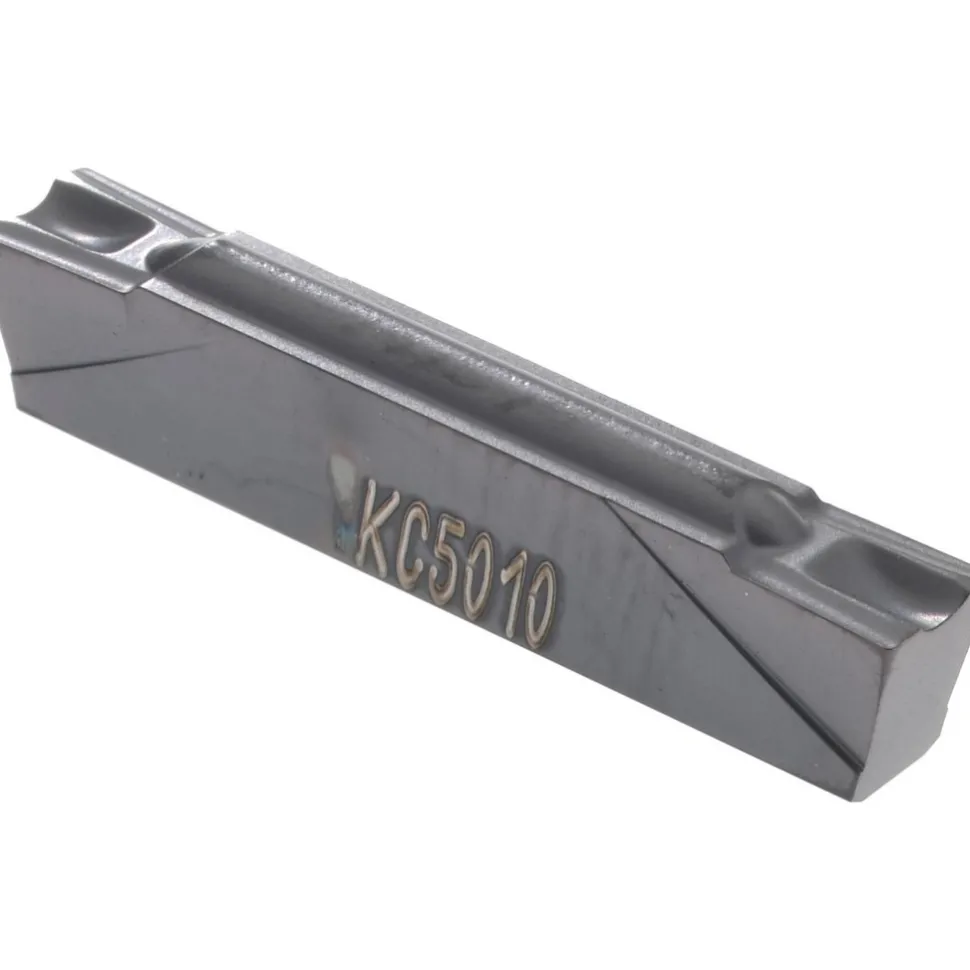

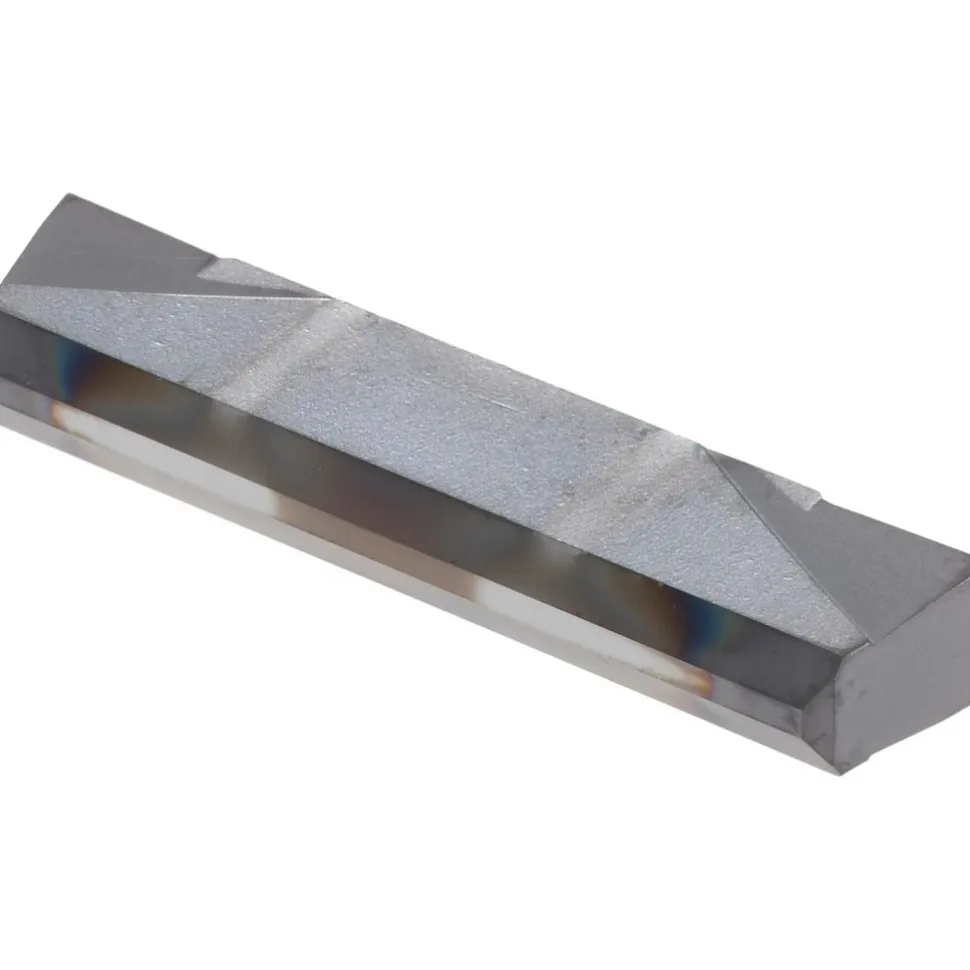

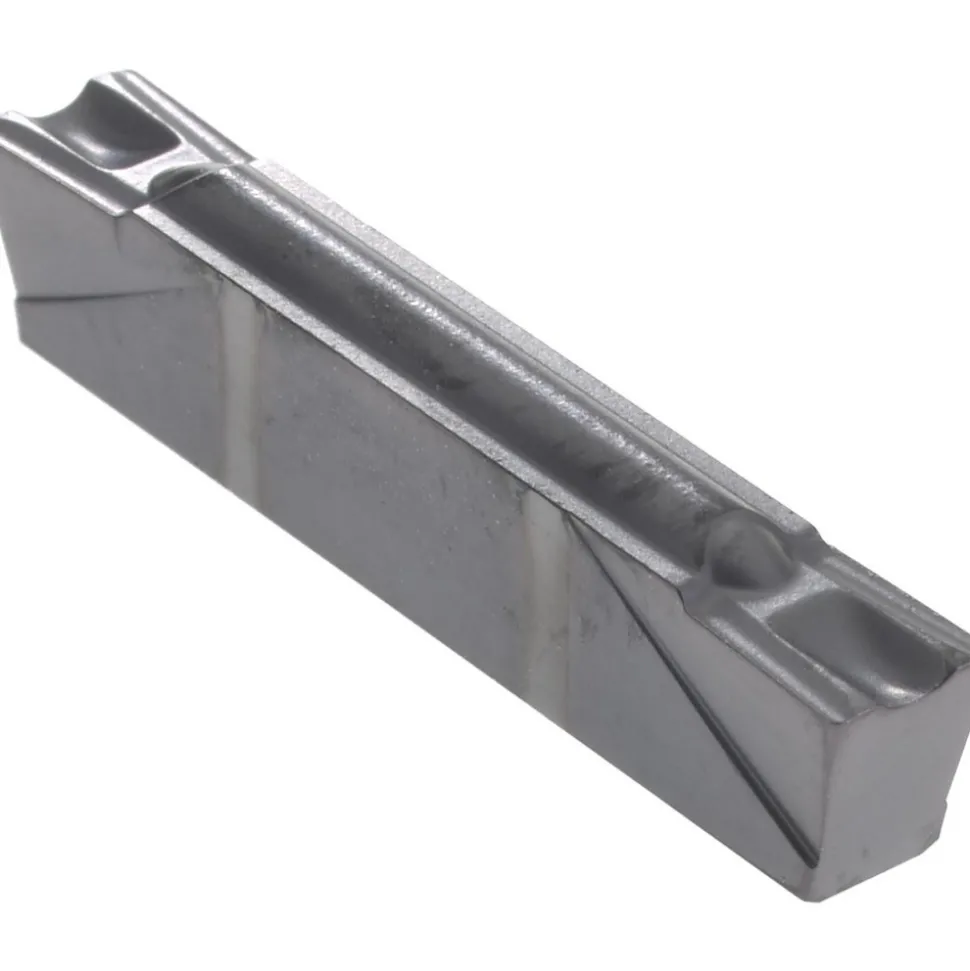

Grooving Insert: A4G0300M03P02GMPKC5010, Carbide

33,99 $

Specifications

Insert Style: G	Cutting Width (Decimal Inch): 0.1181
Cutting Width (mm): 3.00	Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.1378	Maximum Depth of Cut (mm): 3.50
Insert Material: Carbide	Manufacturer Grade: KC5010
Full Radius: No	Corner Radius (Decimal Inch): 0.0079
Corner Radius (mm): 0.20	Rake: Positive
Measurement Type: Metric	Insert Size: 300
Material Grade: C3; C4	Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 3.00 to 4.00	Multi-use Tool: Yes
Series: A4	Coating Process: PVD
Overall Length (Decimal Inch): 0.7874	Manufacturers Catalog Number: A4G0300M03P02GMP
UNSPSC Code: 23242105	Chip Breaker: GMP
Coating/Finish: TiAlN	Country of Origin: Germany
Insert Style: G
Cutting Width (Decimal Inch): 0.1181
Cutting Width (mm): 3.00
Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.1378
Maximum Depth of Cut (mm): 3.50
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: No
Corner Radius (Decimal Inch): 0.0079
Corner Radius (mm): 0.20
Rake: Positive
Measurement Type: Metric
Insert Size: 300
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 3.00 to 4.00
Multi-use Tool: Yes
Series: A4
Coating Process: PVD
Overall Length (Decimal Inch): 0.7874
Manufacturers Catalog Number: A4G0300M03P02GMP
UNSPSC Code: 23242105
Chip Breaker: GMP
Coating/Finish: TiAlN
Country of Origin: Germany
