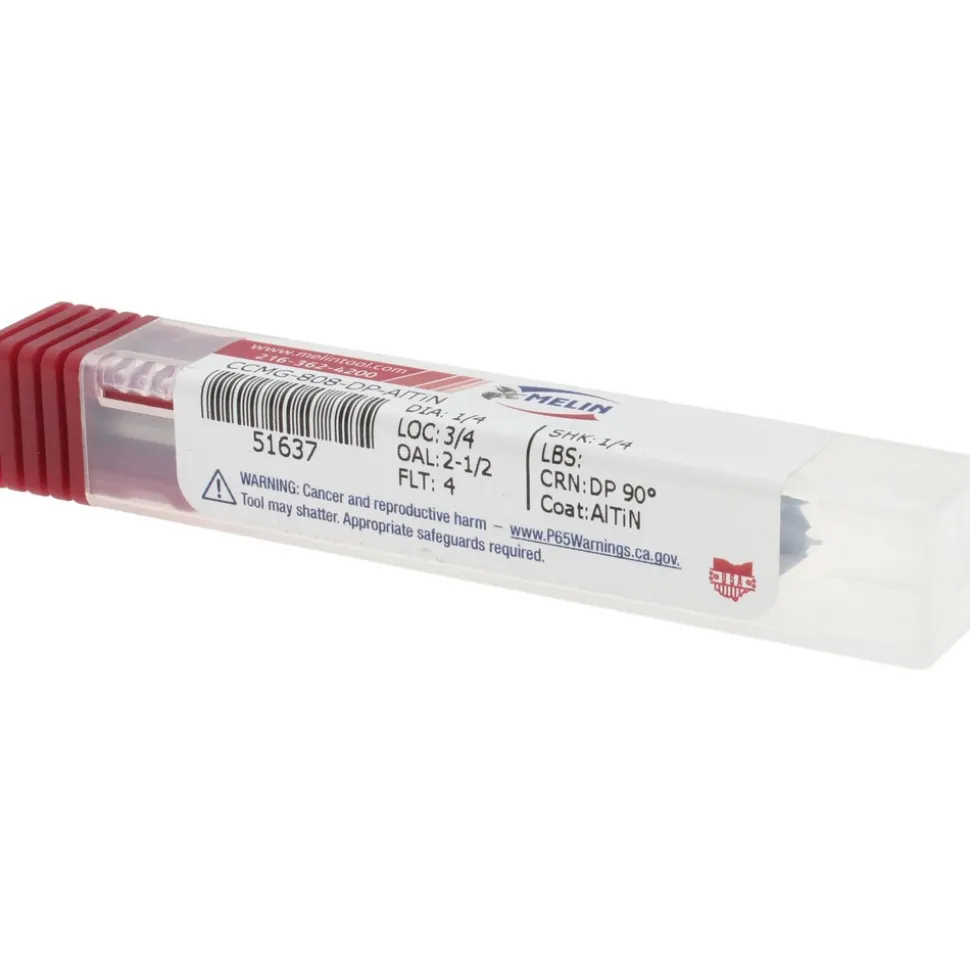

Drill Mill: 1/4" Dia, 3/4" LOC, 4 Flutes, 90 ° Point, Solid Carbide

Drill Mill: 1/4″ Dia, 3/4″ LOC, 4 Flutes, 90 ° Point, Solid Carbide

29,89 $

SKU: SKUIoExSJLiJy Categories: End Mills, Milling, Shop All Products Tag: Melin Tool Brand: Melin Tool

Description
Reviews (0)

Specifications

Mill Diameter (Inch): 1/4	Mill Diameter (Decimal Inch): 0.2500
Length of Cut (Inch): 3/4	Number Of Flutes: 4
End Mill Material: Solid Carbide	Shank Diameter (Inch): 1/4
Helix Angle: 30.00	Point Angle: 90.00
Overall Length (Inch): 2-1/2	Primary Workpiece Material Code: P; S; K; M; N
Primary Material Application: Drilling; Chamfering; Side Milling; Countersinking; Spotting	Material Grade: Micrograin
Cutting Direction: Right Hand	Flute Direction: Right Hand
Series: CCMG-__-DP	Length Of Cut (Decimal Inch – 4 Decimals): 0.7500
Coating/Finish: AlTiN	Mill Diameter Tolerance: +0.000/-0.002 in
Shank Diameter Tolerance: +0.0000 – -0.0020 in	UNSPSC Code: 23241600
Country of Origin: UNITED STATES
Mill Diameter (Inch): 1/4
Mill Diameter (Decimal Inch): 0.2500
Length of Cut (Inch): 3/4
Number Of Flutes: 4
End Mill Material: Solid Carbide
Shank Diameter (Inch): 1/4
Helix Angle: 30.00
Point Angle: 90.00
Overall Length (Inch): 2-1/2
Primary Workpiece Material Code: P; S; K; M; N
Primary Material Application: Drilling; Chamfering; Side Milling; Countersinking; Spotting
Material Grade: Micrograin
Cutting Direction: Right Hand
Flute Direction: Right Hand
Series: CCMG-__-DP
Length Of Cut (Decimal Inch – 4 Decimals): 0.7500
Coating/Finish: AlTiN
Mill Diameter Tolerance: +0.000/-0.002 in
Shank Diameter Tolerance: +0.0000 – -0.0020 in
UNSPSC Code: 23241600
Country of Origin: UNITED STATES
