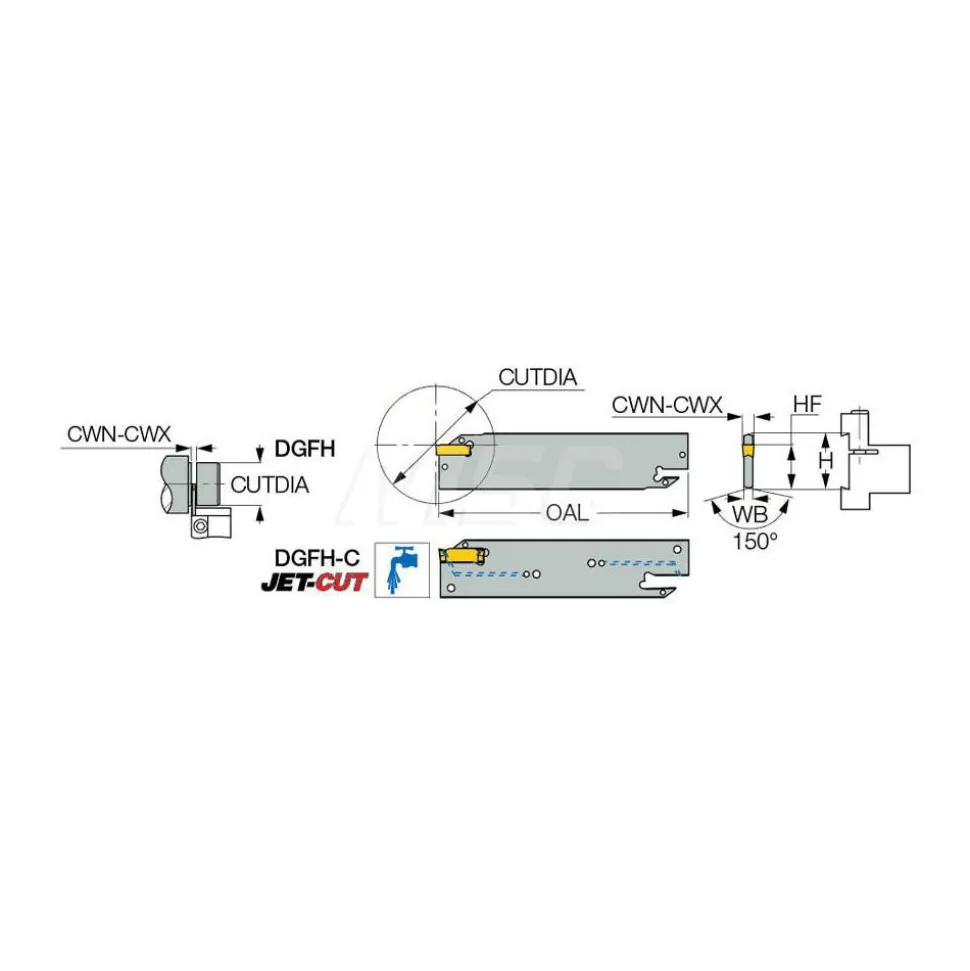

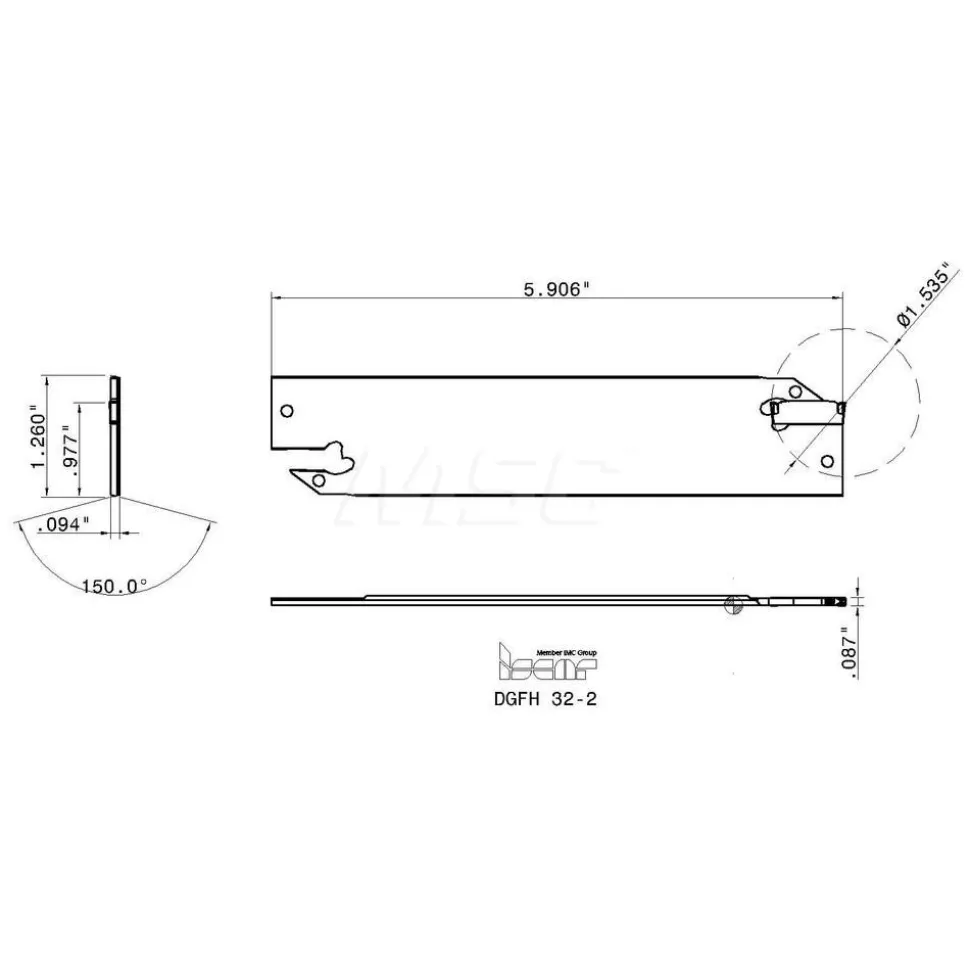

DGFH Double End Neutral Indexable Cutoff Blade
Original price was: 163,00 $.105,89 $Current price is: 105,89 $.
Specifications
| End Type: Double | Cutting Direction: Neutral |
| Blade Height (mm): 32.00 | Blade Height (Decimal Inch): 1.2598 |
| Blade Width (Decimal Inch): 0.0700 | Blade Width (mm): 1.80 |
| Blade Overall Length (Decimal Inch): 5.9055 | Blade Overall Length (mm): 150.00 |
| Blade Style: DGFH | Compatible Insert Style: DG. 1/DG. 2 |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 1.5400 |
| Series: Do-Grip; Heli-Grip | Insert Style: DG.2..; DG.1.. |
| Cutting Tool Application: Grooving; Turning; Parting | Standards: ISO 13399 |
| Cutting Height (mm): 24.80 | Cutting Height (Decimal Inch): 0.9764 |
| Minimum Insert Width (Decimal Inch): 0.0748 | Minimum Insert Width (mm): 1.90 |
| Maximum Insert Width (mm): 2.50 | Maximum Insert Width (Decimal Inch): 0.0984 |
| Manufacturers Catalog Number: DGFH 32-2 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Double | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2598 | |
| Blade Width (Decimal Inch): 0.0700 | |
| Blade Width (mm): 1.80 | |
| Blade Overall Length (Decimal Inch): 5.9055 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: DGFH | |
| Compatible Insert Style: DG. 1/DG. 2 | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 1.5400 | |
| Series: Do-Grip; Heli-Grip | |
| Insert Style: DG.2..; DG.1.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.0748 | |
| Minimum Insert Width (mm): 1.90 | |
| Maximum Insert Width (mm): 2.50 | |
| Maximum Insert Width (Decimal Inch): 0.0984 | |
| Manufacturers Catalog Number: DGFH 32-2 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 52699626 |
| Mfr# | 2301244 |
| Big Book# | 891 |
