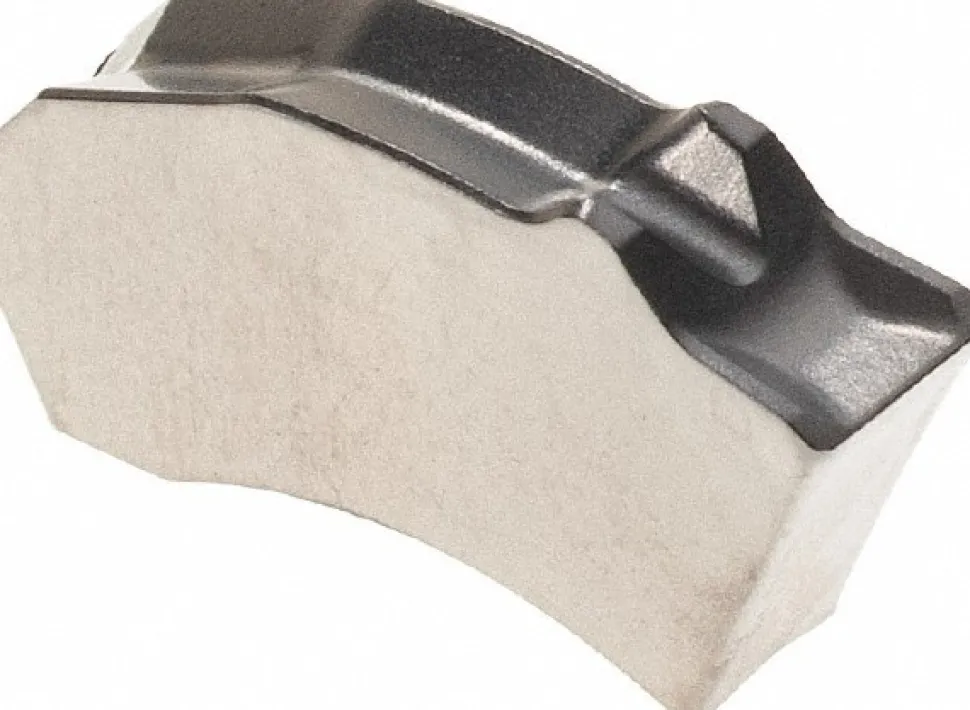

Cutoff Insert: SX-3E300N02-CE4 WSM33S, Carbide, 3.00 mm Cutting Width, 0.1181" Cutting Width

Cutoff Insert: SX-3E300N02-CE4 WSM33S, Carbide, 3.00 mm Cutting Width, 0.1181″ Cutting Width

18,99 $

SKU: SKUoubUxVJUpI Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Walter Brand: Walter

Description
Reviews (0)

Specifications

Insert Style: SX	Insert Size Code: 3E300N02
Insert Material: Carbide	Manufacturer Grade: WSM33S
Cutting Width (Decimal Inch): 0.1181	Cutting Width (mm): 3.00
Insert Holding Method: Clamp	Lead Angle Direction: Neutral
Insert Hand: Neutral	Corner Radius (Decimal Inch): 0.0079
Chipbreaker: CE4	Multi-use Tool: Yes
Cutting Tool Application: Grooving; Parting	Series: Tiger-tec Silver
Coating Process: PVD	Primary Workpiece Material: Superalloy
Primary Workpiece Material Code: P; S; M	Iso Code: SX-3E300N02-CE4 WSM33S
Standards: ISO; ANSI	Manufacturers Catalog Number: SX-3E300N02-CE4
Material Grade: S30; P35; M30	Full Radius: No
Coating/Finish: TiAlN/Al2O3/Al	Single Or Double End: Single
UNSPSC Code: 23242105	Country of Origin: Germany
Insert Style: SX
Insert Size Code: 3E300N02
Insert Material: Carbide
Manufacturer Grade: WSM33S
Cutting Width (Decimal Inch): 0.1181
Cutting Width (mm): 3.00
Insert Holding Method: Clamp
Lead Angle Direction: Neutral
Insert Hand: Neutral
Corner Radius (Decimal Inch): 0.0079
Chipbreaker: CE4
Multi-use Tool: Yes
Cutting Tool Application: Grooving; Parting
Series: Tiger-tec Silver
Coating Process: PVD
Primary Workpiece Material: Superalloy
Primary Workpiece Material Code: P; S; M
Iso Code: SX-3E300N02-CE4 WSM33S
Standards: ISO; ANSI
Manufacturers Catalog Number: SX-3E300N02-CE4
Material Grade: S30; P35; M30
Full Radius: No
Coating/Finish: TiAlN/Al2O3/Al
Single Or Double End: Single
UNSPSC Code: 23242105
Country of Origin: Germany
