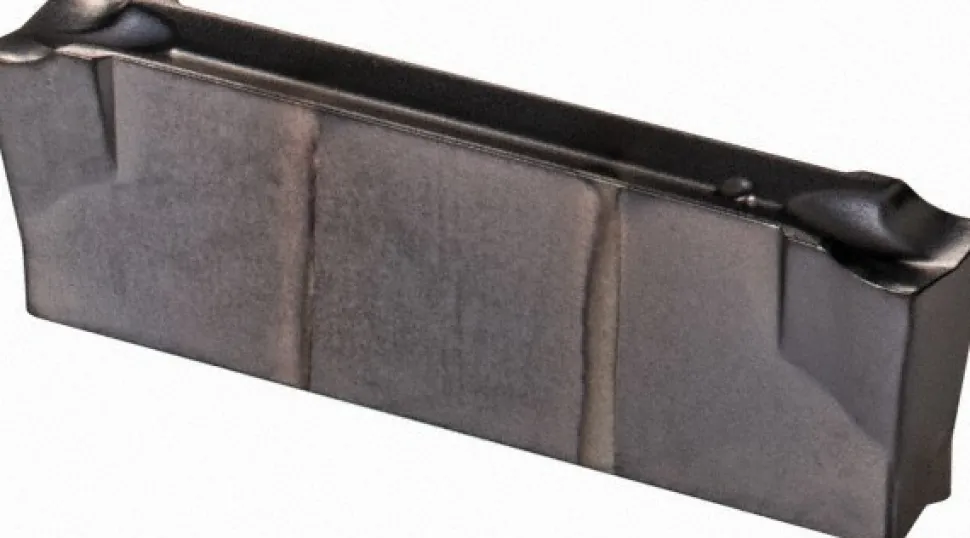

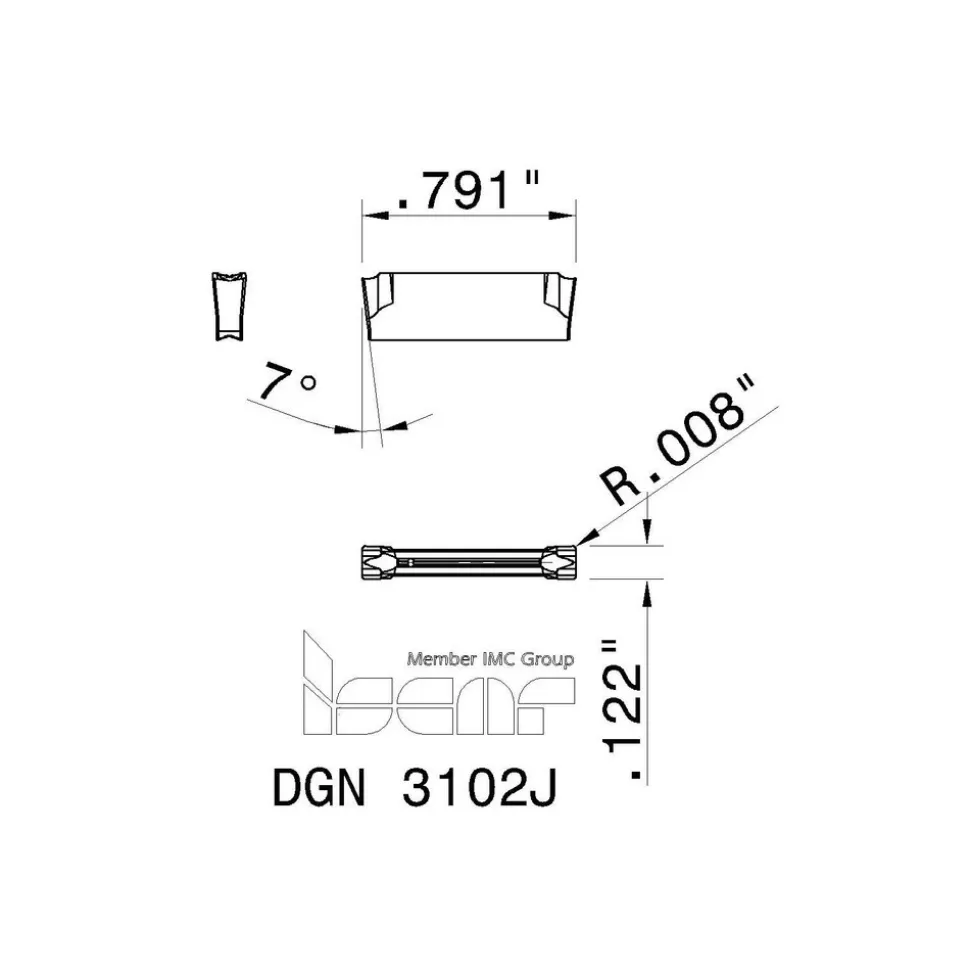

Cutoff Insert: DGN3102J IC908, Carbide, 3.10 mm Cutting Width, 0.1220″ Cutting Width
29,89 $
Specifications
| Insert Style: DGN | Insert Size Code: 3102 |
| Insert Material: Carbide | Manufacturer Grade: IC908 |
| Cutting Width (Decimal Inch): 0.1220 | Cutting Width (mm): 3.10 |
| Insert Holding Method: Self Grip | Lead Angle Direction: Neutral |
| Insert Hand: Neutral | Relief Angle: 7.000 |
| Corner Radius (Decimal Inch): 0.0080 | Chipbreaker: J |
| Multi-use Tool: Yes | Cutting Tool Application: Grooving; Parting |
| Series: Cut-Grip | Coating Process: PVD |
| Overall Length (mm): 20.10 | Overall Length (Decimal Inch): 0.7910 |
| Primary Workpiece Material: Universal | Primary Workpiece Material Code: P; S; H; K; M |
| Iso Code: ISO 13399 | Standards: ISO 13399 |
| Manufacturers Catalog Number: DGN 3102J | Maximum Depth of Cut (mm): 18.01 |
| Material Grade: Submicron | Full Radius: No |
| Maximum Depth of Cut (Decimal Inch): 0.7090 | Coating/Finish: TiN/TiAlN |
| Single Or Double End: Double | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: DGN | |
| Insert Size Code: 3102 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC908 | |
| Cutting Width (Decimal Inch): 0.1220 | |
| Cutting Width (mm): 3.10 | |
| Insert Holding Method: Self Grip | |
| Lead Angle Direction: Neutral | |
| Insert Hand: Neutral | |
| Relief Angle: 7.000 | |
| Corner Radius (Decimal Inch): 0.0080 | |
| Chipbreaker: J | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Parting | |
| Series: Cut-Grip | |
| Coating Process: PVD | |
| Overall Length (mm): 20.10 | |
| Overall Length (Decimal Inch): 0.7910 | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: DGN 3102J | |
| Maximum Depth of Cut (mm): 18.01 | |
| Material Grade: Submicron | |
| Full Radius: No | |
| Maximum Depth of Cut (Decimal Inch): 0.7090 | |
| Coating/Finish: TiN/TiAlN | |
| Single Or Double End: Double | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 87973657 |
| Mfr# | 6002963 |
