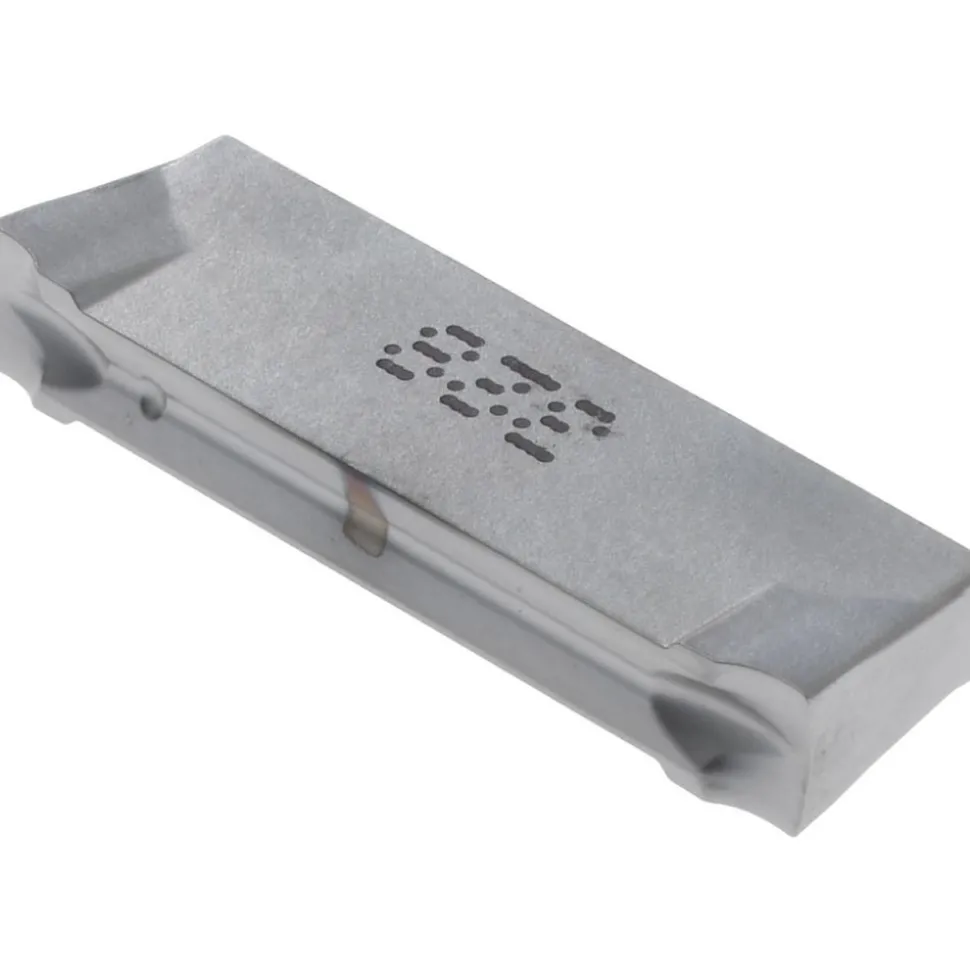

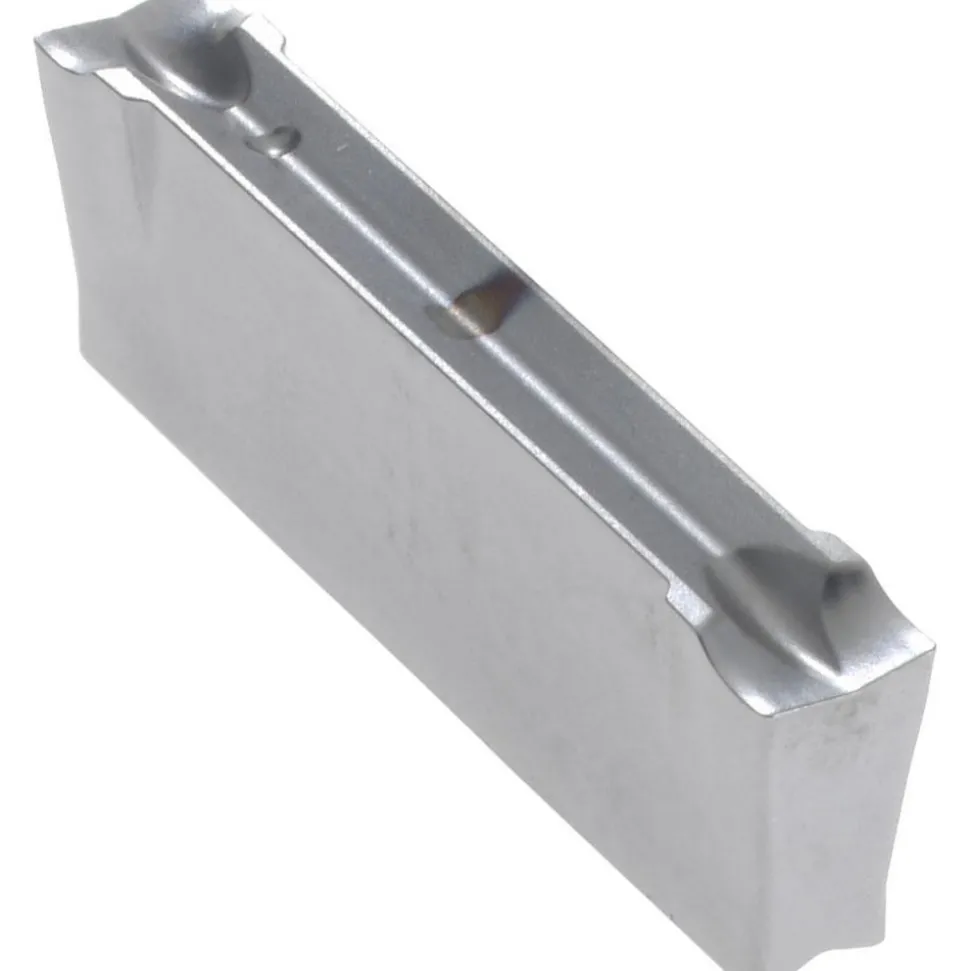

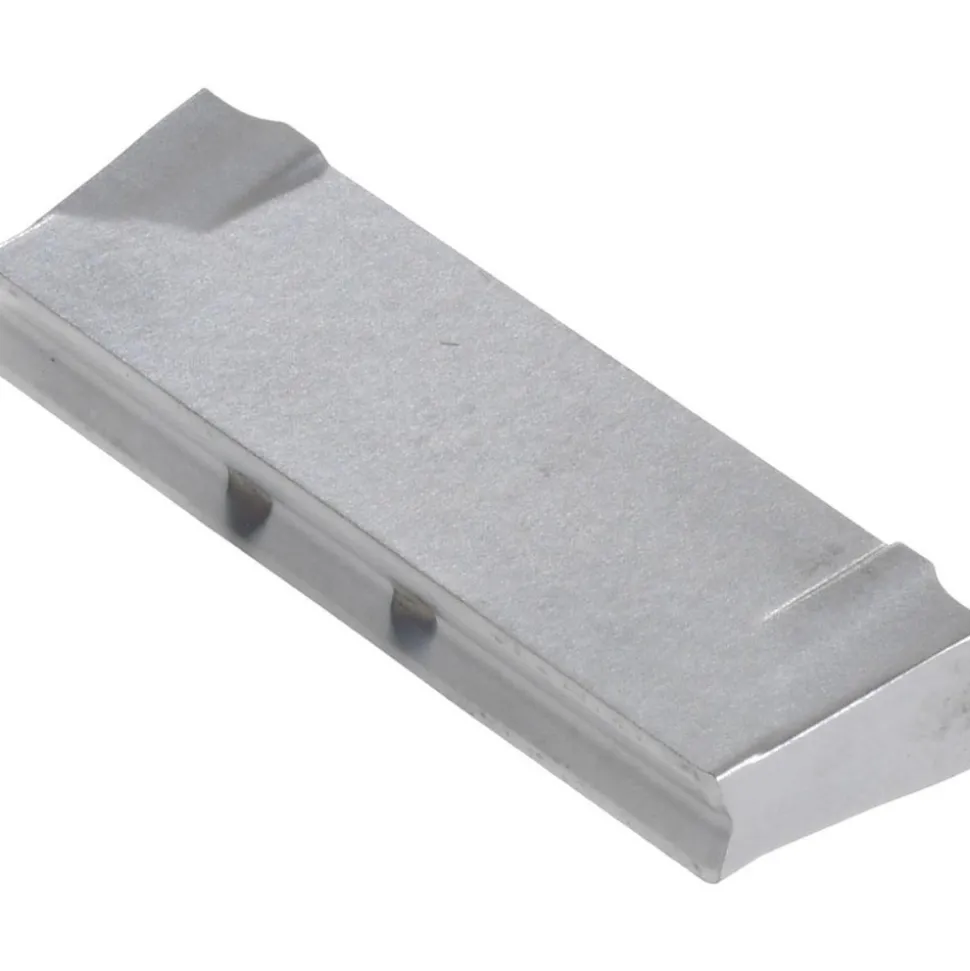

Cutoff Insert: DGN3102J IC328, Carbide, 3.10 mm Cutting Width, 0.1220″ Cutting Width
29,89 $
Specifications
| Insert Style: DGN | Insert Size Code: 3102 |
| Insert Material: Carbide | Manufacturer Grade: IC328 |
| Cutting Width (Decimal Inch): 0.1220 | Cutting Width (mm): 3.10 |
| Insert Holding Method: Clamp | Lead Angle Direction: Neutral |
| Insert Hand: Neutral | Lead Angle: 0.000 |
| Relief Angle: 7.000 | Corner Radius (Decimal Inch): 0.0079 |
| Chipbreaker: J | Multi-use Tool: Yes |
| Cutting Tool Application: Grooving; Parting | Series: Do-Grip |
| Coating Process: PVD | Overall Length (mm): 20.10 |
| Overall Length (Decimal Inch): 0.7913 | Primary Workpiece Material: Superalloy |
| Primary Workpiece Material Code: P; S; M | Iso Code: ISO 13399 |
| Standards: ISO 13399 | Manufacturers Catalog Number: DGN 3102J |
| Maximum Depth of Cut (mm): 18.00 | Material Grade: C3; C5; C6; C2 |
| Maximum Depth of Cut (Decimal Inch): 0.7087 | Coating/Finish: Coated |
| Single Or Double End: Double | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: DGN | |
| Insert Size Code: 3102 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC328 | |
| Cutting Width (Decimal Inch): 0.1220 | |
| Cutting Width (mm): 3.10 | |
| Insert Holding Method: Clamp | |
| Lead Angle Direction: Neutral | |
| Insert Hand: Neutral | |
| Lead Angle: 0.000 | |
| Relief Angle: 7.000 | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Chipbreaker: J | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Parting | |
| Series: Do-Grip | |
| Coating Process: PVD | |
| Overall Length (mm): 20.10 | |
| Overall Length (Decimal Inch): 0.7913 | |
| Primary Workpiece Material: Superalloy | |
| Primary Workpiece Material Code: P; S; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: DGN 3102J | |
| Maximum Depth of Cut (mm): 18.00 | |
| Material Grade: C3; C5; C6; C2 | |
| Maximum Depth of Cut (Decimal Inch): 0.7087 | |
| Coating/Finish: Coated | |
| Single Or Double End: Double | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 52700523 |
| Mfr# | 6002418 |
| Big Book# | 889 |
