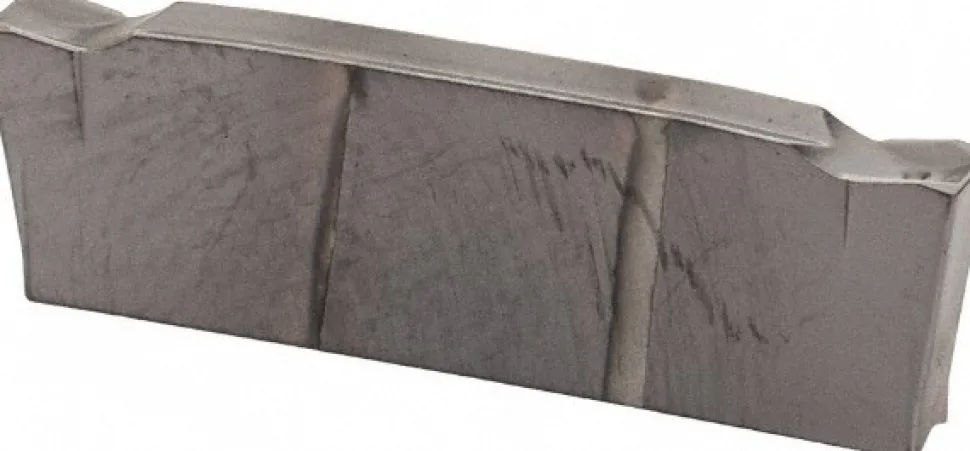

Cutoff Insert: DGN2202C IC908, Carbide, 2.20 mm Cutting Width, 0.0866″ Cutting Width
28,89 $
Specifications

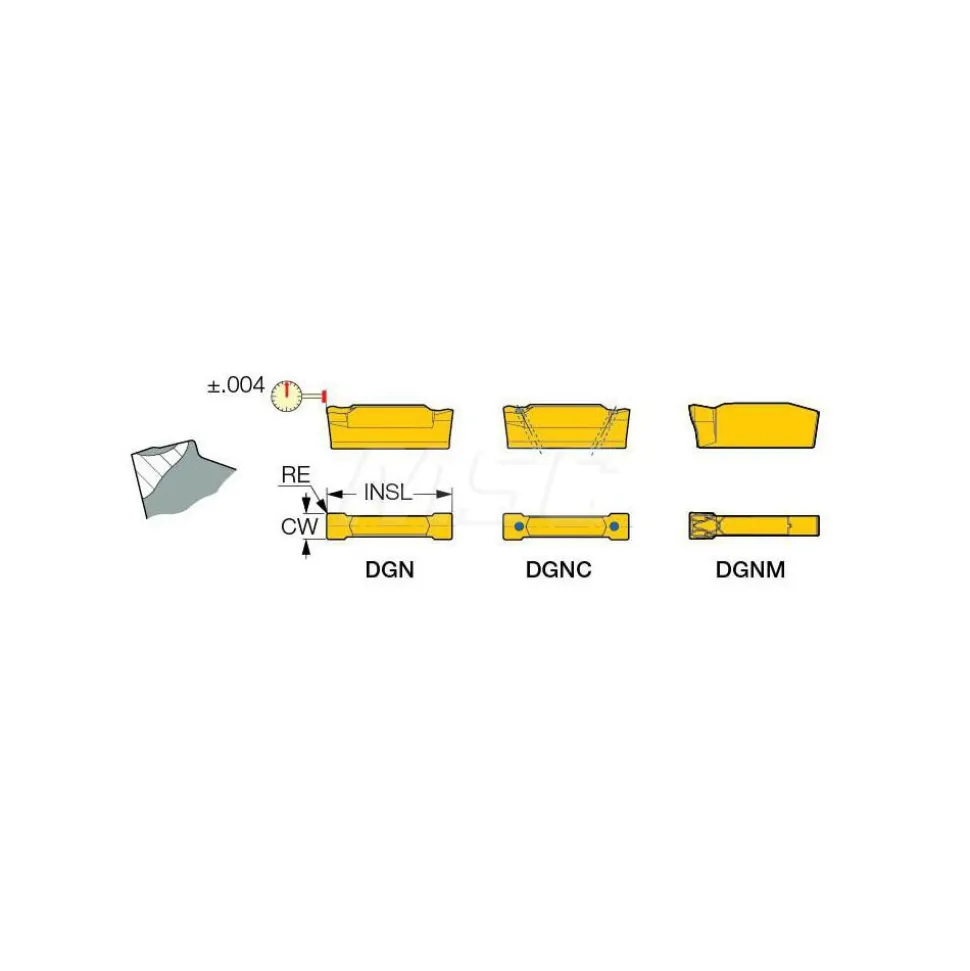

| Insert Style: DGN | Insert Size Code: 2202 |
| Insert Material: Carbide | Manufacturer Grade: IC908 |
| Cutting Width (Decimal Inch): 0.0866 | Cutting Width (mm): 2.20 |
| Insert Holding Method: Clamp | Lead Angle Direction: Neutral |
| Insert Hand: Neutral | Lead Angle: 0.000 |
| Relief Angle: 7.000 | Corner Radius (Decimal Inch): 0.0079 |
| Chipbreaker: C | Multi-use Tool: Yes |
| Cutting Tool Application: Grooving; Parting | Series: Do-Grip |
| Coating Process: PVD | Overall Length (mm): 19.80 |
| Overall Length (Decimal Inch): 0.7795 | Primary Workpiece Material: Universal |
| Primary Workpiece Material Code: P; S; H; K; M | Iso Code: ISO 13399 |
| Standards: ISO 13399 | Manufacturers Catalog Number: DGN 2202C |
| Maximum Depth of Cut (mm): 18.00 | Material Grade: C6; C7; C1; C2 |
| Maximum Depth of Cut (Decimal Inch): 0.7087 | Coating/Finish: Coated |
| Single Or Double End: Double | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: DGN | |
| Insert Size Code: 2202 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC908 | |
| Cutting Width (Decimal Inch): 0.0866 | |
| Cutting Width (mm): 2.20 | |
| Insert Holding Method: Clamp | |
| Lead Angle Direction: Neutral | |
| Insert Hand: Neutral | |
| Lead Angle: 0.000 | |
| Relief Angle: 7.000 | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Chipbreaker: C | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Parting | |
| Series: Do-Grip | |
| Coating Process: PVD | |
| Overall Length (mm): 19.80 | |
| Overall Length (Decimal Inch): 0.7795 | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: DGN 2202C | |
| Maximum Depth of Cut (mm): 18.00 | |
| Material Grade: C6; C7; C1; C2 | |
| Maximum Depth of Cut (Decimal Inch): 0.7087 | |
| Coating/Finish: Coated | |
| Single Or Double End: Double | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 60206075 |
| Mfr# | 6002960 |
| Big Book# | 889 |
