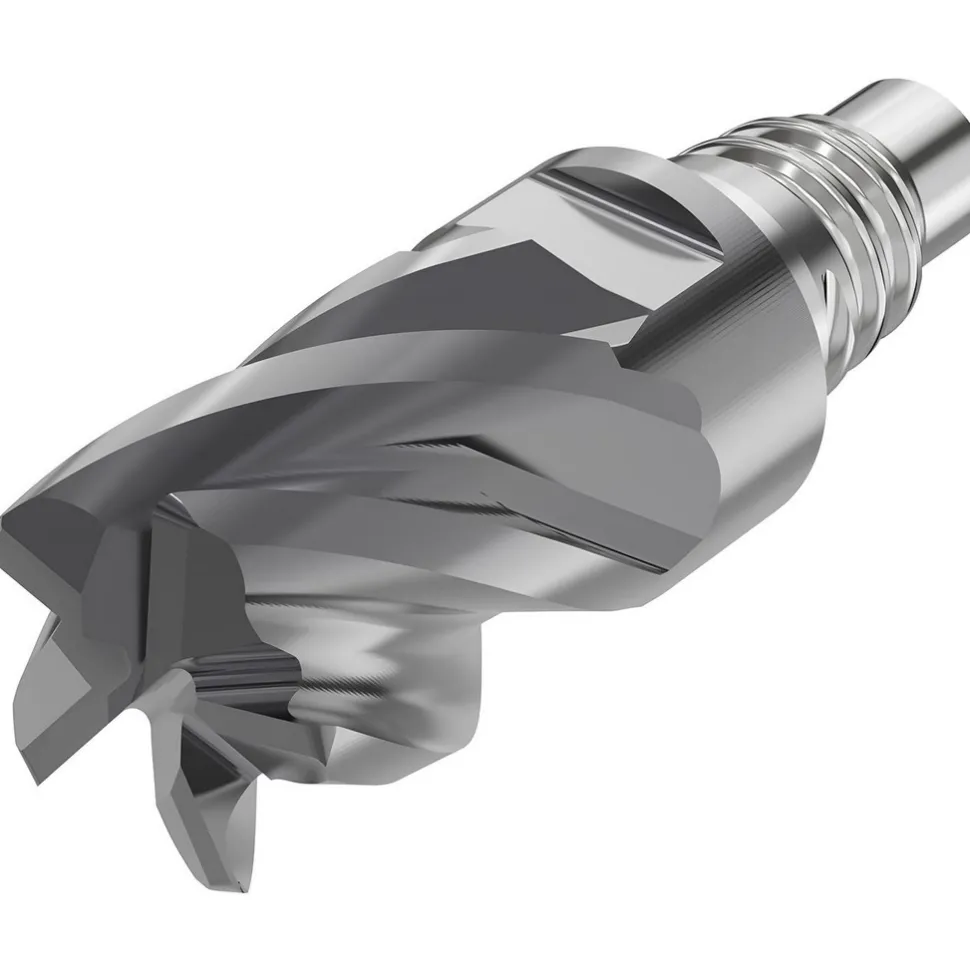

Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 5/8

Name: Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 5/8 - Industrial Tool
Price: 138.89 USD
Availability: InStock

138,89 $

Shop Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 5/8 at MSC Direct top provider of high quality products

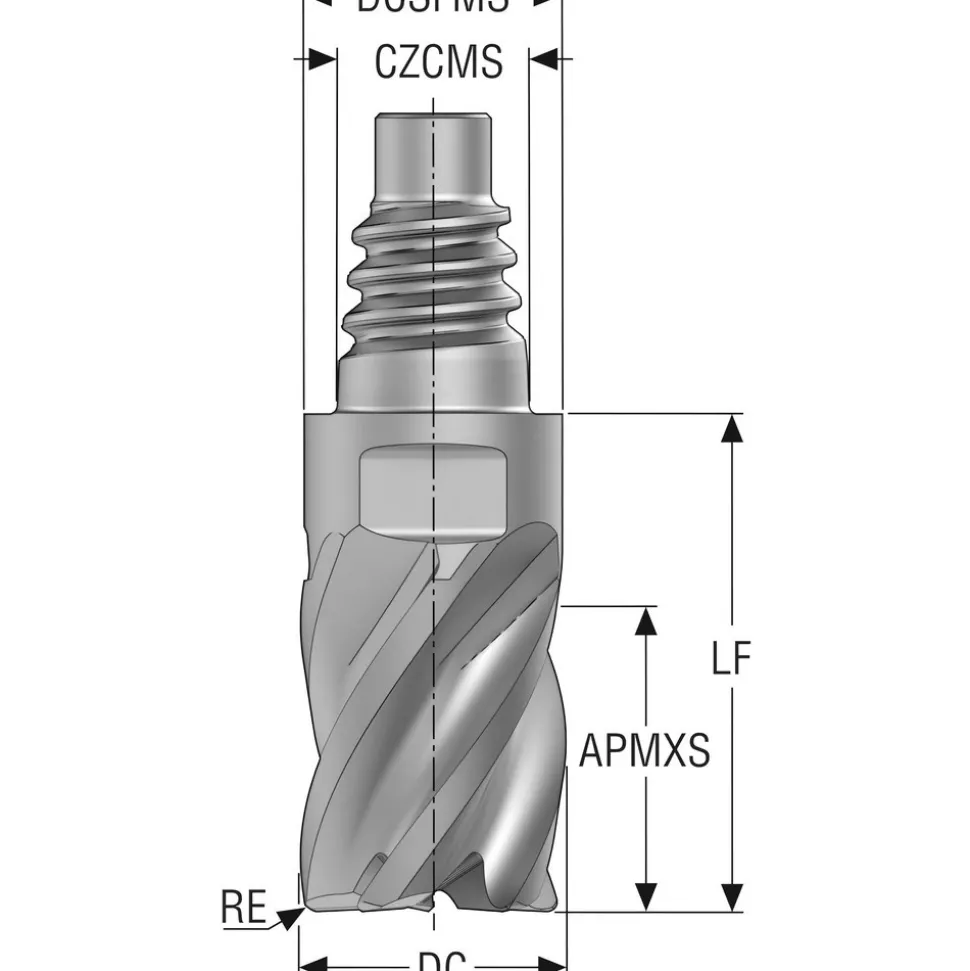

Specifications

Mill Diameter (Inch): 5/8	Length of Cut (Inch): 3/4
Number Of Flutes: 5	Coating/Finish: SIRON-A
End Mill Material: Solid Carbide	Corner Radius (Decimal Inch): 0.1200
Mill Diameter (Decimal Inch): 0.6250	Overall Length (Decimal Inch): 1.8189
Connection Type: E16	Flute Type: Variable
Centercutting: Yes	Minimum Helix Angle: 36
Maximum Helix Angle: 40	Series: XSE550
Helix Angle: 40	Cutting Direction: Right Hand
Flute Direction: Right Hand	Coolant Through: No
Variable Helix: Yes	Length Of Cut (Decimal Inch – 4 Decimals): 0.7500
Variable Index: No	UNSPSC Code: 27112803
Country of Origin: UNITED STATES
Mill Diameter (Inch): 5/8
Length of Cut (Inch): 3/4
Number Of Flutes: 5
Coating/Finish: SIRON-A
End Mill Material: Solid Carbide
Corner Radius (Decimal Inch): 0.1200
Mill Diameter (Decimal Inch): 0.6250
Overall Length (Decimal Inch): 1.8189
Connection Type: E16
Flute Type: Variable
Centercutting: Yes
Minimum Helix Angle: 36
Maximum Helix Angle: 40
Series: XSE550
Helix Angle: 40
Cutting Direction: Right Hand
Flute Direction: Right Hand
Coolant Through: No
Variable Helix: Yes
Length Of Cut (Decimal Inch – 4 Decimals): 0.7500
Variable Index: No
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
