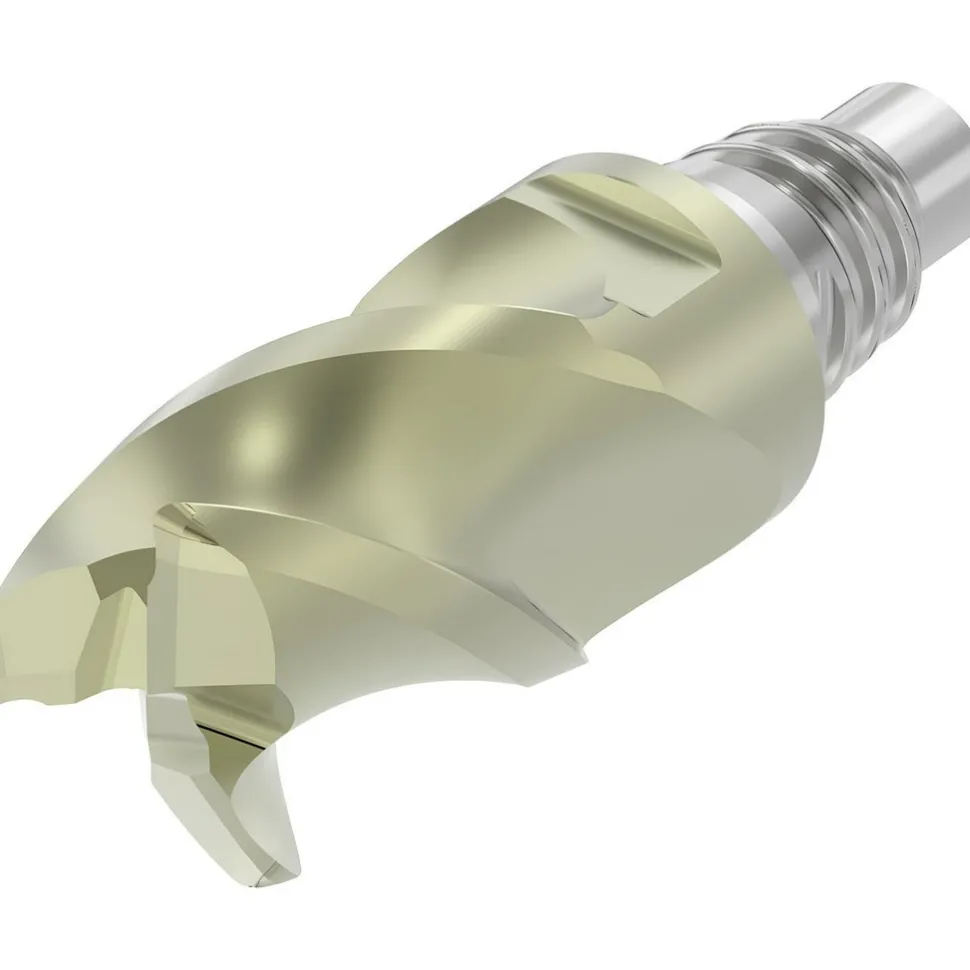

Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 1/2

Name: Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 1/2 - Industrial Tool
Price: 102.89 USD
Availability: InStock

102,89 $

Shop Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 1/2 at MSC Direct top provider of high quality products

Specifications

Mill Diameter (Inch): 1/2	Number Of Flutes: 3
Coating/Finish: AXT	End Mill Material: Solid Carbide
Corner Radius (Decimal Inch): 0.0600	Mill Diameter (Decimal Inch): 0.5000
Overall Length (Decimal Inch): 1.4488	Connection Type: E12
Flute Type: Helical	Centercutting: Yes
Minimum Helix Angle: 45	Maximum Helix Angle: 45
Series: XSE450	Helix Angle: 45
Cutting Direction: Right Hand	Flute Direction: Right Hand
Coolant Through: No	Variable Helix: No
Length Of Cut (Decimal Inch – 4 Decimals): 0.6000	Variable Index: No
UNSPSC Code: 27112803	Country of Origin: UNITED STATES
Mill Diameter (Inch): 1/2
Number Of Flutes: 3
Coating/Finish: AXT
End Mill Material: Solid Carbide
Corner Radius (Decimal Inch): 0.0600
Mill Diameter (Decimal Inch): 0.5000
Overall Length (Decimal Inch): 1.4488
Connection Type: E12
Flute Type: Helical
Centercutting: Yes
Minimum Helix Angle: 45
Maximum Helix Angle: 45
Series: XSE450
Helix Angle: 45
Cutting Direction: Right Hand
Flute Direction: Right Hand
Coolant Through: No
Variable Helix: No
Length Of Cut (Decimal Inch – 4 Decimals): 0.6000
Variable Index: No
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
