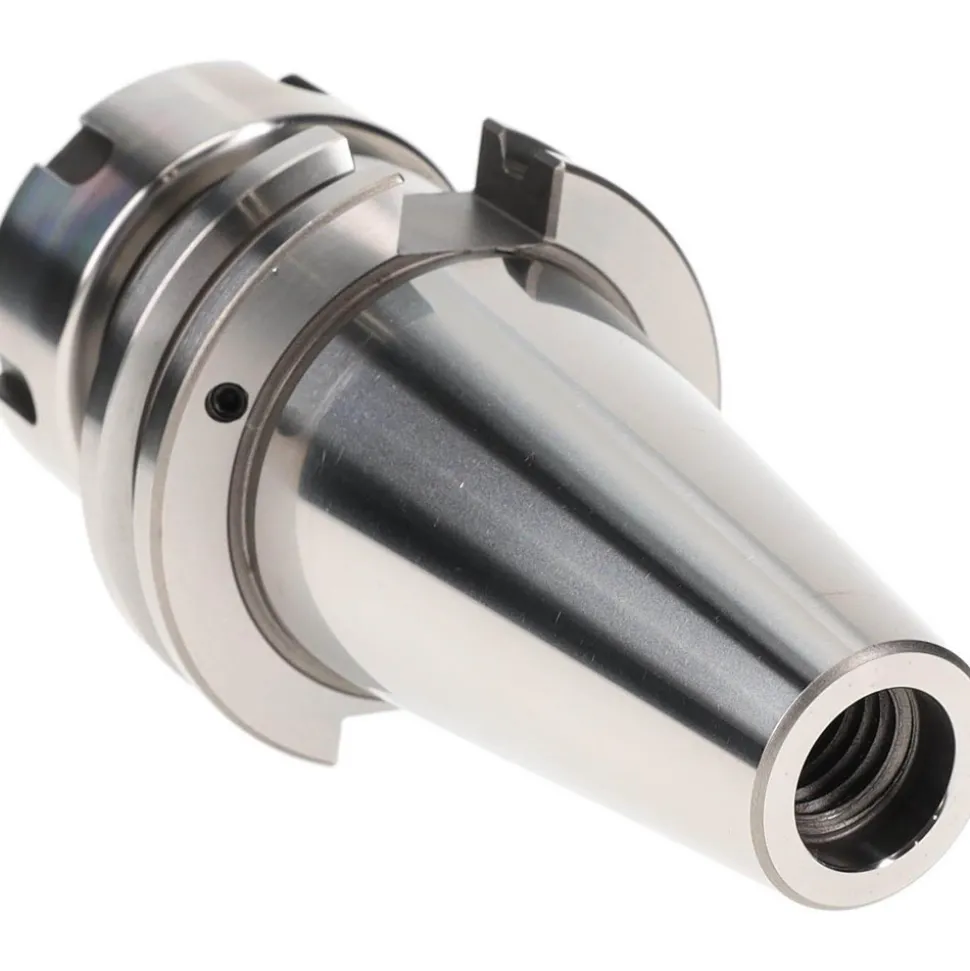

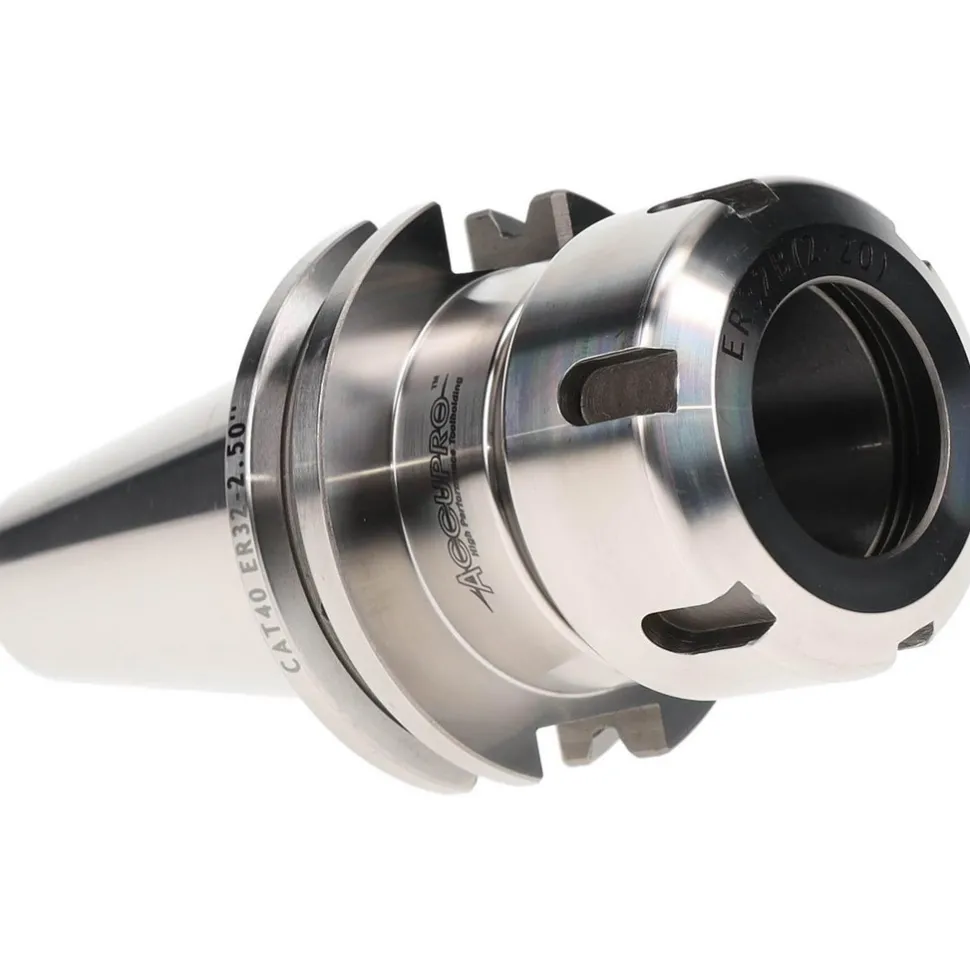

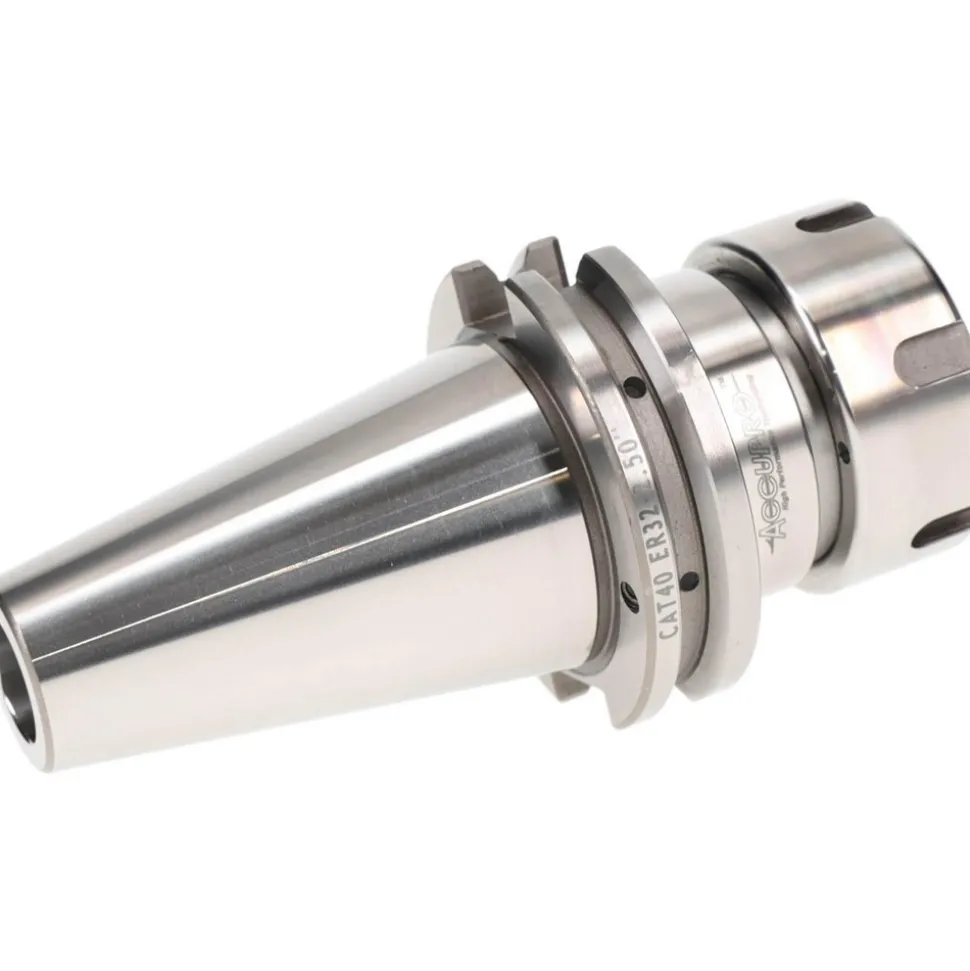

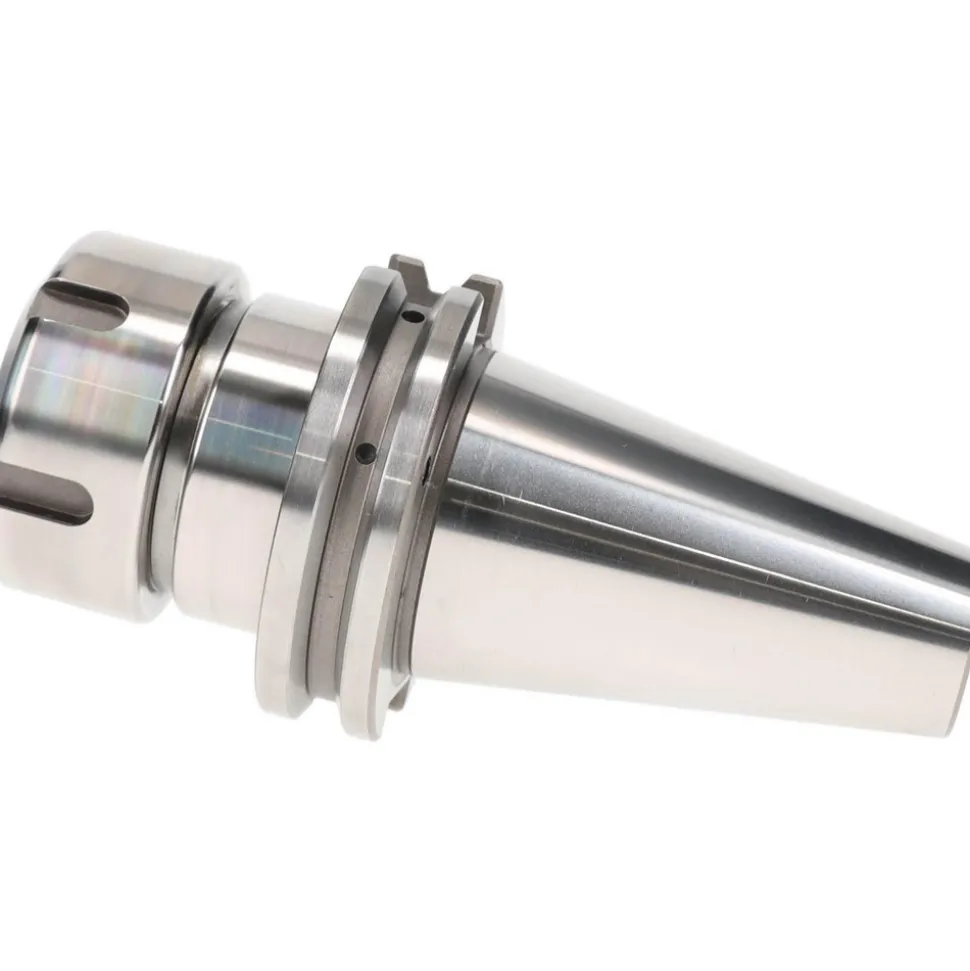

Collet Chuck: 0.0780 to 0.7870″ Capacity, ER32 Collet, Taper Shank
105,89 $
Specifications
| Collet System: ER | Collet Series: ER32 |
| Shank Type: Taper | Taper Size: CAT40 |
| Projection (Decimal Inch): 2.5000 in | Projection (Inch): 2-1/2 |
| Through Coolant: Yes | Minimum Collet Capacity (Decimal Inch): 0.0780 |
| Maximum Collet Capacity (Decimal Inch): 0.7870 | TIR (Decimal Inch): 0.000200 |
| Coolant Type: Through-Spindle & DIN Flange | Collet Nut Diameter (Decimal Inch): 1.9700 |
| UNSPSC Code: 27112808 | Product Service Code: 5136 |
| Balanced To Rpm: 30000 | Thread Size (Inch): 5/8-11 |
| Country of Origin: VARIOUS | |
| Collet System: ER | |
| Collet Series: ER32 | |
| Shank Type: Taper | |
| Taper Size: CAT40 | |
| Projection (Decimal Inch): 2.5000 in | |
| Projection (Inch): 2-1/2 | |
| Through Coolant: Yes | |
| Minimum Collet Capacity (Decimal Inch): 0.0780 | |
| Maximum Collet Capacity (Decimal Inch): 0.7870 | |
| TIR (Decimal Inch): 0.000200 | |
| Coolant Type: Through-Spindle & DIN Flange | |
| Collet Nut Diameter (Decimal Inch): 1.9700 | |
| UNSPSC Code: 27112808 | |
| Product Service Code: 5136 | |
| Balanced To Rpm: 30000 | |
| Thread Size (Inch): 5/8-11 | |
| Country of Origin: VARIOUS |
| MSC# | 80265333 |
| Mfr# | 775656 |
| Big Book# | 1210 |
