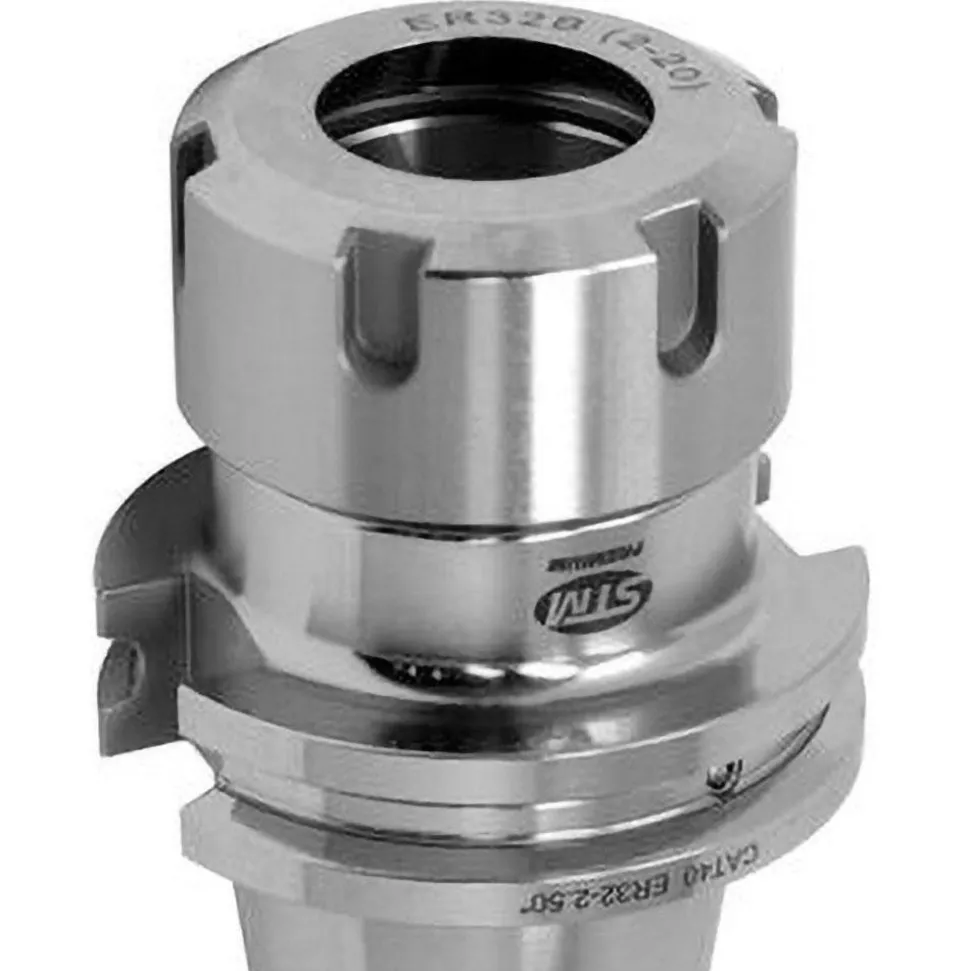

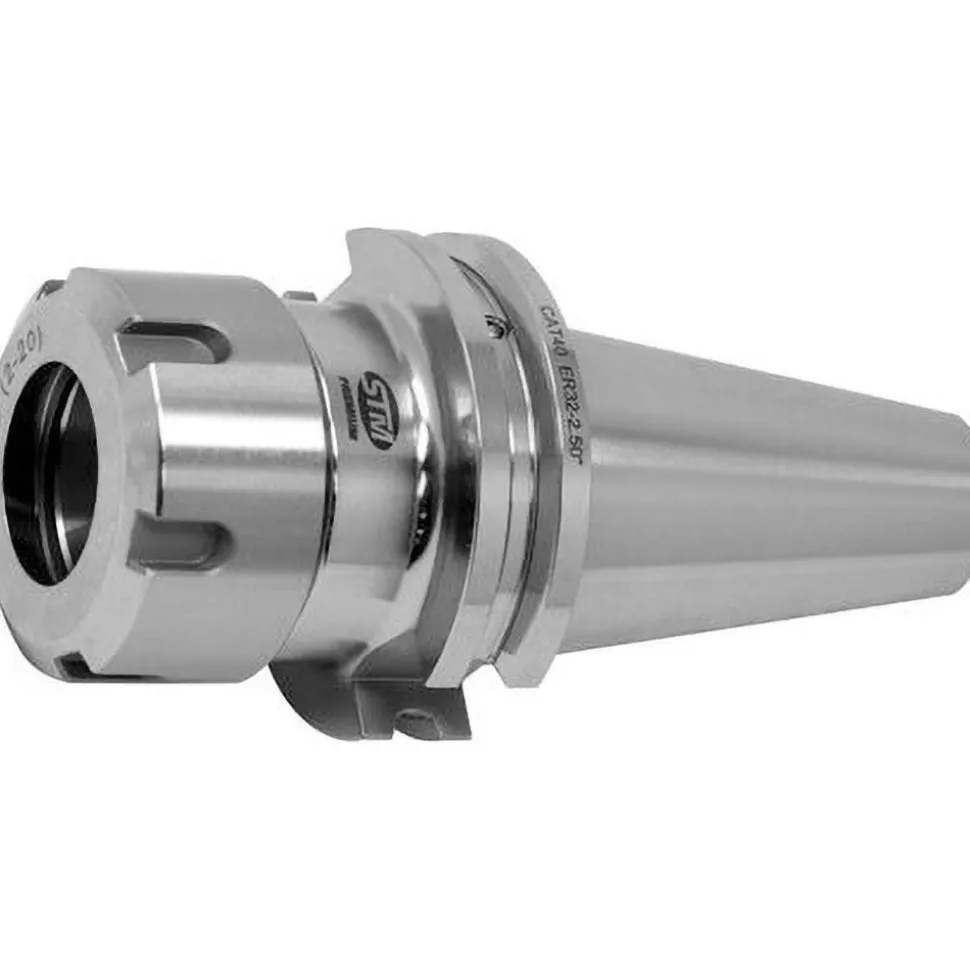

Collet Chuck: 0.0780 to 0.7870″ Capacity, ER32 Collet, 1.7500″ Shank Dia, CAT Taper Shank
54,99 $
Specifications
| Collet System: ER | Collet Series: ER32 |
| Shank Type: CAT Taper | Taper Size: CAT40 |
| Modular Connection Size: CAT40 | Projection (Decimal Inch): 2.5000 |
| Through Coolant: Yes | Shank Diameter (Decimal Inch): 1.7500 |
| Minimum Collet Capacity (Decimal Inch): 0.0780 | Maximum Collet Capacity (Decimal Inch): 0.7870 |
| Overall Length (Decimal Inch): 5.1800 | Actuator Type: Wrench |
| Dual Contact: No | Nose Diameter (Decimal Inch – 4 Decimals): 1.9700 |
| Shank Length (Decimal Inch): 2.6870 | TIR (Decimal Inch): 0.000200 |
| Coolant Type: Through-Spindle | Collet Nut Diameter (Decimal Inch): 1.9700 |
| Locknut Diameter (Decimal Inch): 0.9039 | UNSPSC Code: 27112808 |
| Head Length (Decimal Inch): 1.3400 | Balanced To Rpm: 20000 |
| Thread Size (mm): M40x1.5 | Country of Origin: China |
| Collet System: ER | |
| Collet Series: ER32 | |
| Shank Type: CAT Taper | |
| Taper Size: CAT40 | |
| Modular Connection Size: CAT40 | |
| Projection (Decimal Inch): 2.5000 | |
| Through Coolant: Yes | |
| Shank Diameter (Decimal Inch): 1.7500 | |
| Minimum Collet Capacity (Decimal Inch): 0.0780 | |
| Maximum Collet Capacity (Decimal Inch): 0.7870 | |
| Overall Length (Decimal Inch): 5.1800 | |
| Actuator Type: Wrench | |
| Dual Contact: No | |
| Nose Diameter (Decimal Inch – 4 Decimals): 1.9700 | |
| Shank Length (Decimal Inch): 2.6870 | |
| TIR (Decimal Inch): 0.000200 | |
| Coolant Type: Through-Spindle | |
| Collet Nut Diameter (Decimal Inch): 1.9700 | |
| Locknut Diameter (Decimal Inch): 0.9039 | |
| UNSPSC Code: 27112808 | |
| Head Length (Decimal Inch): 1.3400 | |
| Balanced To Rpm: 20000 | |
| Thread Size (mm): M40x1.5 | |
| Country of Origin: China |
| MSC# | 62392345 |
| Mfr# | 525421 |
