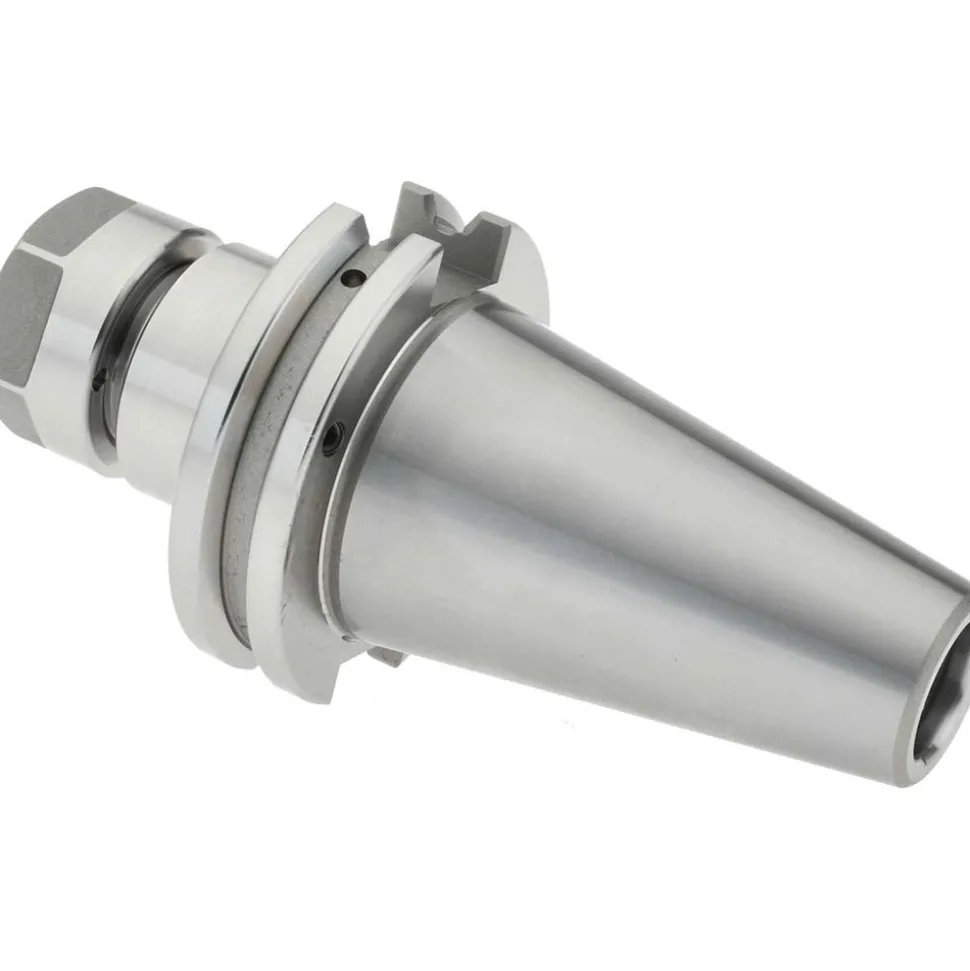

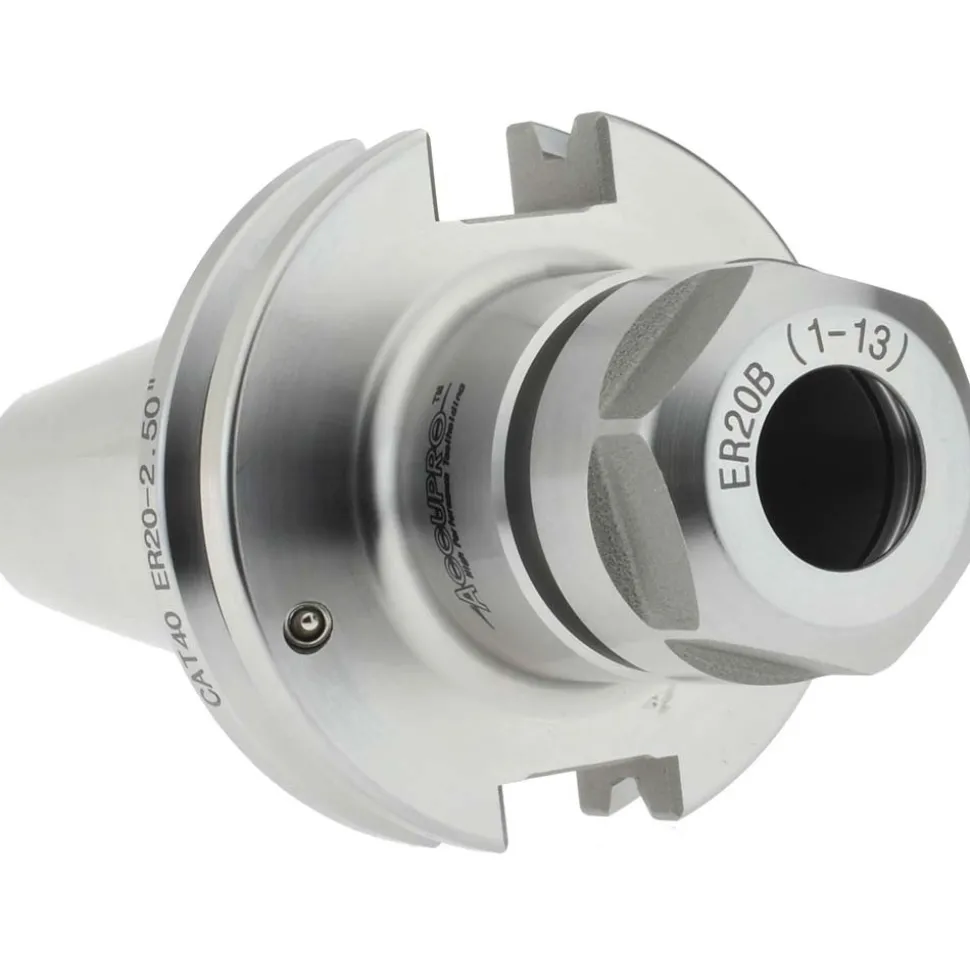

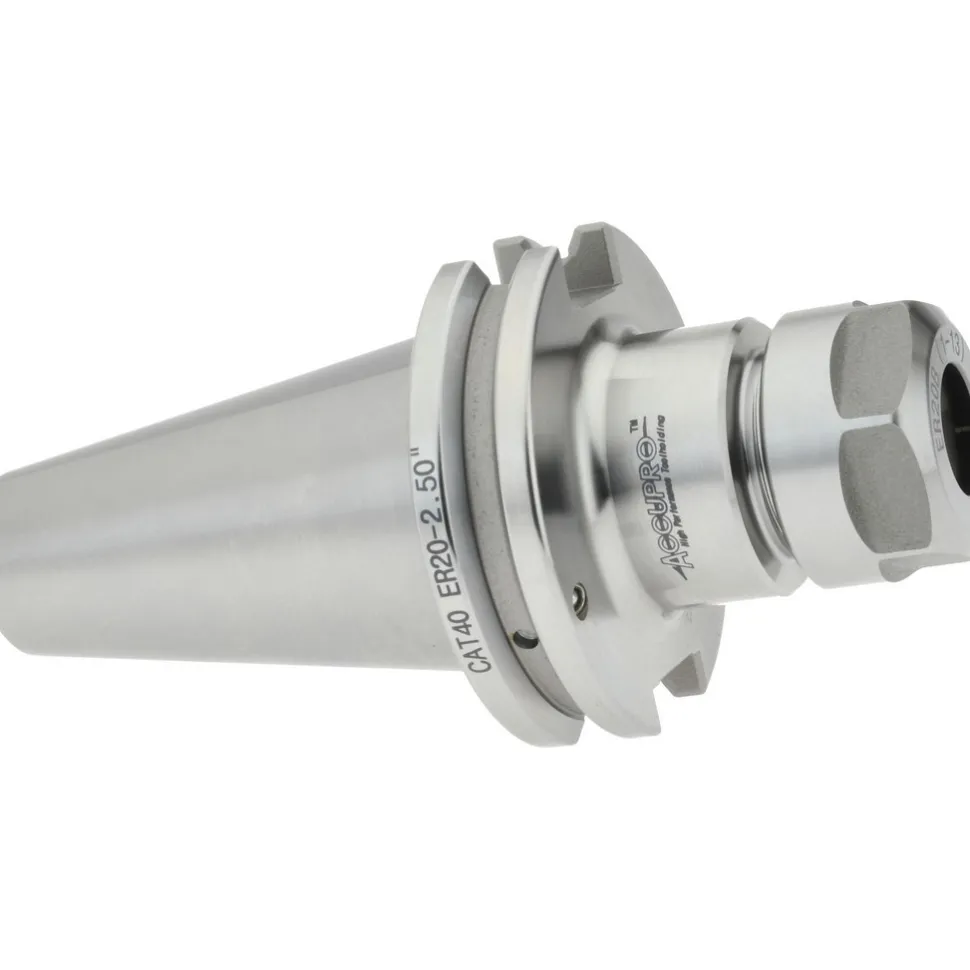

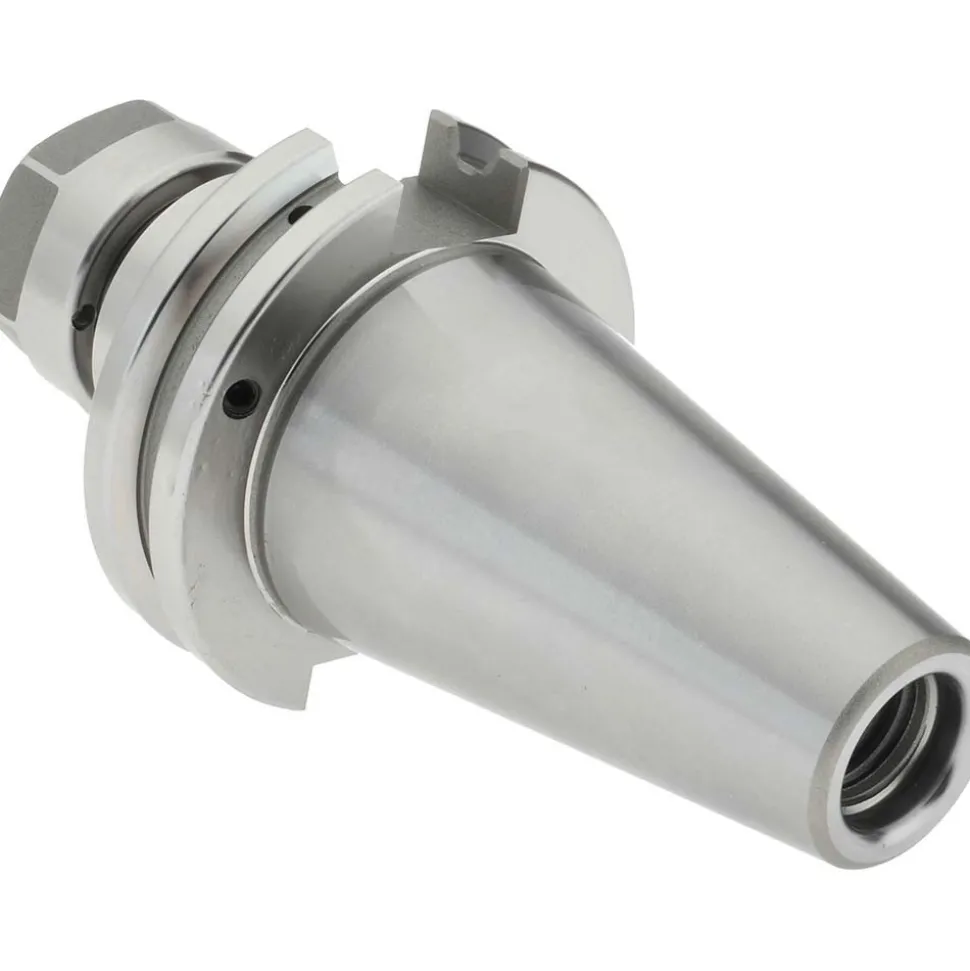

Collet Chuck: 0.0390 to 0.5110" Capacity, ER20 Collet, Taper Shank

Collet Chuck: 0.0390 to 0.5110″ Capacity, ER20 Collet, Taper Shank

100,89 $

SKU: SKU5kQ7Y9CBtA Categories: Rotary Tool Holders & Accessories, Shop All Products, Tool Holding Tag: Accupro Brand: Accupro

Description
Reviews (0)

Specifications

Collet System: ER	Collet Series: ER20
Shank Type: Taper	Taper Size: CAT40
Projection (Decimal Inch): 2.5000 in	Projection (Inch): 2-1/2
Through Coolant: Yes	Minimum Collet Capacity (Decimal Inch): 0.0390
Maximum Collet Capacity (Decimal Inch): 0.5110	TIR (Decimal Inch): 0.000200
Coolant Type: Through-Spindle & DIN Flange	Collet Nut Diameter (Decimal Inch): 1.3800
UNSPSC Code: 27112808	Product Service Code: 5136
Balanced To Rpm: 30000	Country of Origin: VARIOUS
Collet System: ER
Collet Series: ER20
Shank Type: Taper
Taper Size: CAT40
Projection (Decimal Inch): 2.5000 in
Projection (Inch): 2-1/2
Through Coolant: Yes
Minimum Collet Capacity (Decimal Inch): 0.0390
Maximum Collet Capacity (Decimal Inch): 0.5110
TIR (Decimal Inch): 0.000200
Coolant Type: Through-Spindle & DIN Flange
Collet Nut Diameter (Decimal Inch): 1.3800
UNSPSC Code: 27112808
Product Service Code: 5136
Balanced To Rpm: 30000
Country of Origin: VARIOUS
