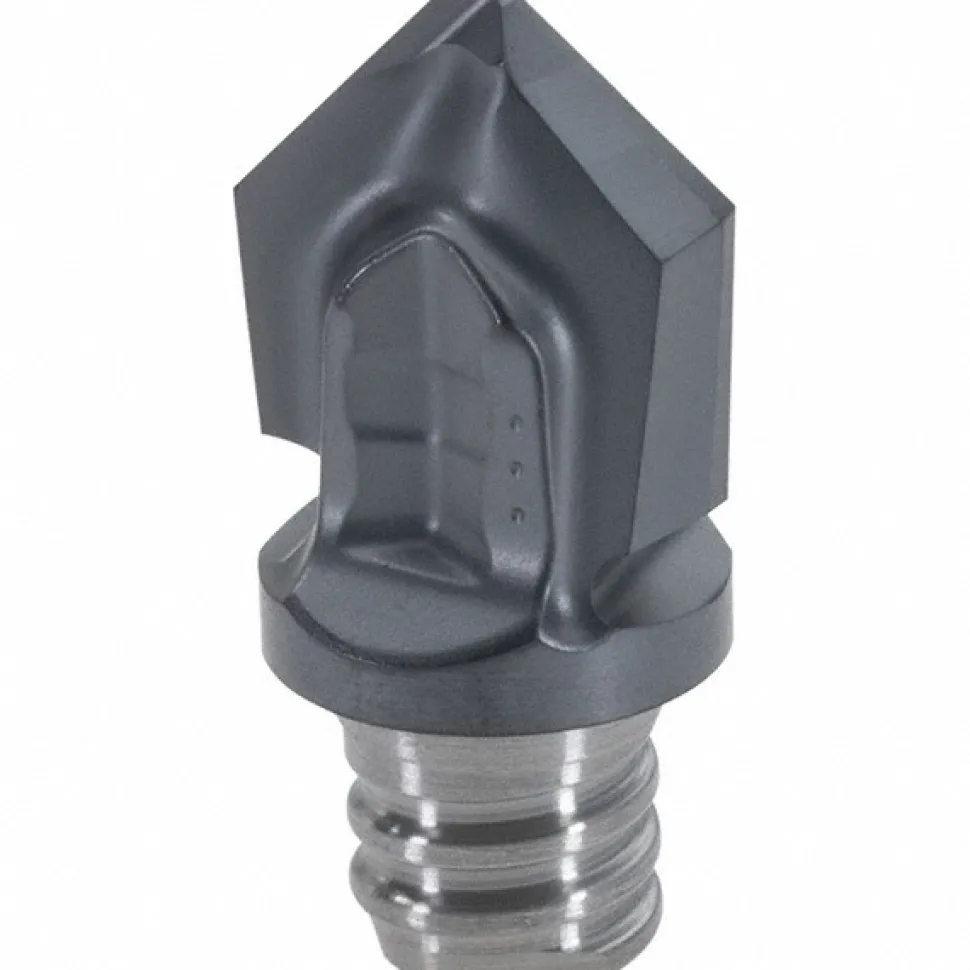

Chamfer Milling Tip Insert: MMHCD100-090-2T06-N, Carbide
Original price was: 81,00 $.53,99 $Current price is: 53,99 $.
Specifications
| Milling Tip Type: Chamfer | Milling Tip Style: MM HCD |
| Maximum Depth of Cut (Decimal Inch): 0.1770 | Maximum Depth of Cut (mm): 4.50 |
| Cutting Diameter (Decimal Inch): 0.0590 | Cutting Diameter (mm): 10.00 |
| Tool Material: Carbide | Manufacturer Grade: IC908 |
| Insert Hand: Right Hand | Chipbreaker: None |
| Series: MM HCD | Coating Process: PVD |
| Cutting Width (Decimal Inch): 0.0590 | Functional Length (Decimal Inch): 0.5510 |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; H; K; M; N |
| Standards: ANSI | Milling Tip Full Description: MM HCD100-090-2T06-N |
| Extension From Holder (mm): 14.00 | Lead Angle: 90 |
| Manufacturers Catalog Number: 5668527 | Chamfer Angle: 45.000 |
| Overall Length (Decimal Inch): 0.5510 | Insert Size: 100-090-2T06 |
| Coolant Through: No | Material Grade: Sub Micrograin |
| Included Angle Degree: 140 | Coating/Finish: TiAlN |
| UNSPSC Code: 23291601 | Length Of Cut (Decimal Inch – 4 Decimals): 0.3980 |
| Number Of Flutes: 2 | Extension From Holder (Inch): 0.5510 |
| Country of Origin: Israel | |
| Milling Tip Type: Chamfer | |
| Milling Tip Style: MM HCD | |
| Maximum Depth of Cut (Decimal Inch): 0.1770 | |
| Maximum Depth of Cut (mm): 4.50 | |
| Cutting Diameter (Decimal Inch): 0.0590 | |
| Cutting Diameter (mm): 10.00 | |
| Tool Material: Carbide | |
| Manufacturer Grade: IC908 | |
| Insert Hand: Right Hand | |
| Chipbreaker: None | |
| Series: MM HCD | |
| Coating Process: PVD | |
| Cutting Width (Decimal Inch): 0.0590 | |
| Functional Length (Decimal Inch): 0.5510 | |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Standards: ANSI | |
| Milling Tip Full Description: MM HCD100-090-2T06-N | |
| Extension From Holder (mm): 14.00 | |
| Lead Angle: 90 | |
| Manufacturers Catalog Number: 5668527 | |
| Chamfer Angle: 45.000 | |
| Overall Length (Decimal Inch): 0.5510 | |
| Insert Size: 100-090-2T06 | |
| Coolant Through: No | |
| Material Grade: Sub Micrograin | |
| Included Angle Degree: 140 | |
| Coating/Finish: TiAlN | |
| UNSPSC Code: 23291601 | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.3980 | |
| Number Of Flutes: 2 | |
| Extension From Holder (Inch): 0.5510 | |
| Country of Origin: Israel |
| MSC# | 46673091 |
| Mfr# | 5668527 |
