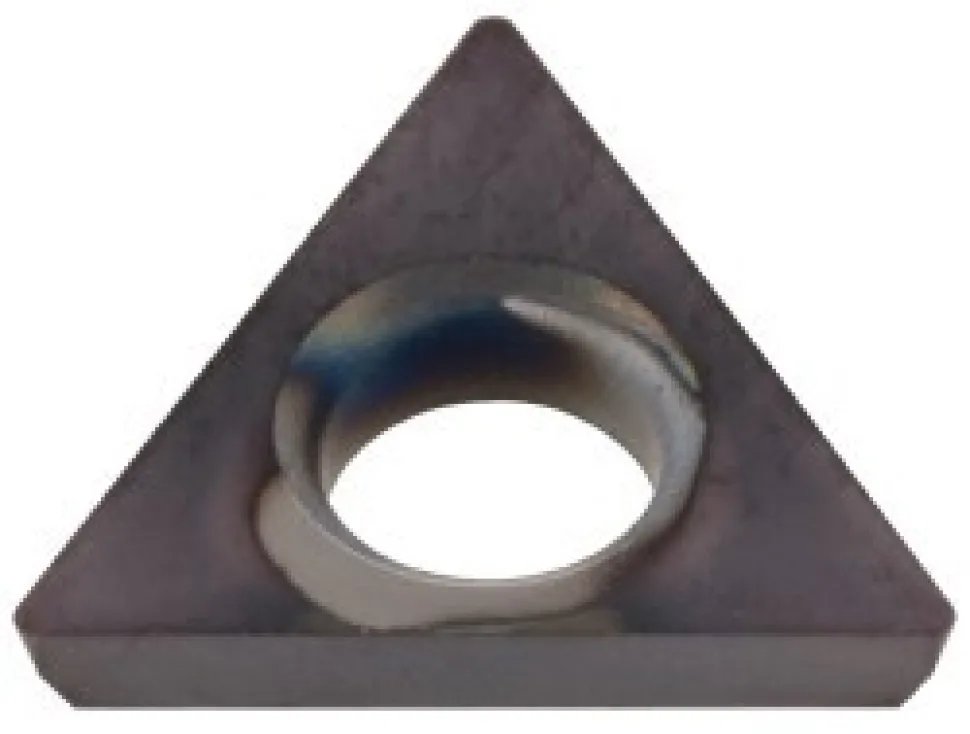

Boring Inserts: Insert Style: TDHB; Insert Size Code: 12807505; Insert Material: Carbide; Material Grade: C3, C4
20,89 $
Specifications
| Insert Style: TDHB | Insert Size Code: 12807505 |
| Insert Material: Carbide | Material Grade: C3; C4 |
| Manufacturer Grade: KC5010 | Inscribed Circle (Decimal Inch): 0.1600 |
| Hole Diameter (Decimal Inch): 0.0950 | Hole Diameter (mm): 2.39 |
| Insert Holding Method: Screw | Insert Hand: Neutral |
| Corner Radius (Inch): 1/128 | Corner Radius (Decimal Inch): 0.0079 |
| Relief Angle: 15.000 | Rake: Positive |
| Chipbreaker: Flat Top | Series: Screw-On |
| Coating Process: PVD | Included Angle: 60.00 |
| Insert Shape: Triangle | Number Of Cutting Edges: 3 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; M |
| Secondary Workpiece Material Code: P; S; N | Standards: ISO; ANSI |
| Rake Angle: 0.000 | Manufacturers Catalog Number: 1937535 |
| Length (Decimal Inch – 4 Decimals): 0.2772 | Width (Decimal Inch – 4 Decimals): 0.2772 |
| Coating/Finish: TiAlN | UNSPSC Code: 23242105 |
| Length (mm): 7.40 | Maximum Depth of Cut (mm): 1.25 |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | Country of Origin: UNITED STATES |
| Insert Style: TDHB | |
| Insert Size Code: 12807505 | |
| Insert Material: Carbide | |
| Material Grade: C3; C4 | |
| Manufacturer Grade: KC5010 | |
| Inscribed Circle (Decimal Inch): 0.1600 | |
| Hole Diameter (Decimal Inch): 0.0950 | |
| Hole Diameter (mm): 2.39 | |
| Insert Holding Method: Screw | |
| Insert Hand: Neutral | |
| Corner Radius (Inch): 1/128 | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Relief Angle: 15.000 | |
| Rake: Positive | |
| Chipbreaker: Flat Top | |
| Series: Screw-On | |
| Coating Process: PVD | |
| Included Angle: 60.00 | |
| Insert Shape: Triangle | |
| Number Of Cutting Edges: 3 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Secondary Workpiece Material Code: P; S; N | |
| Standards: ISO; ANSI | |
| Rake Angle: 0.000 | |
| Manufacturers Catalog Number: 1937535 | |
| Length (Decimal Inch – 4 Decimals): 0.2772 | |
| Width (Decimal Inch – 4 Decimals): 0.2772 | |
| Coating/Finish: TiAlN | |
| UNSPSC Code: 23242105 | |
| Length (mm): 7.40 | |
| Maximum Depth of Cut (mm): 1.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | |
| Country of Origin: UNITED STATES |
| MSC# | 00464099 |
| Mfr# | 1937535 |
| Big Book# | 790 |
