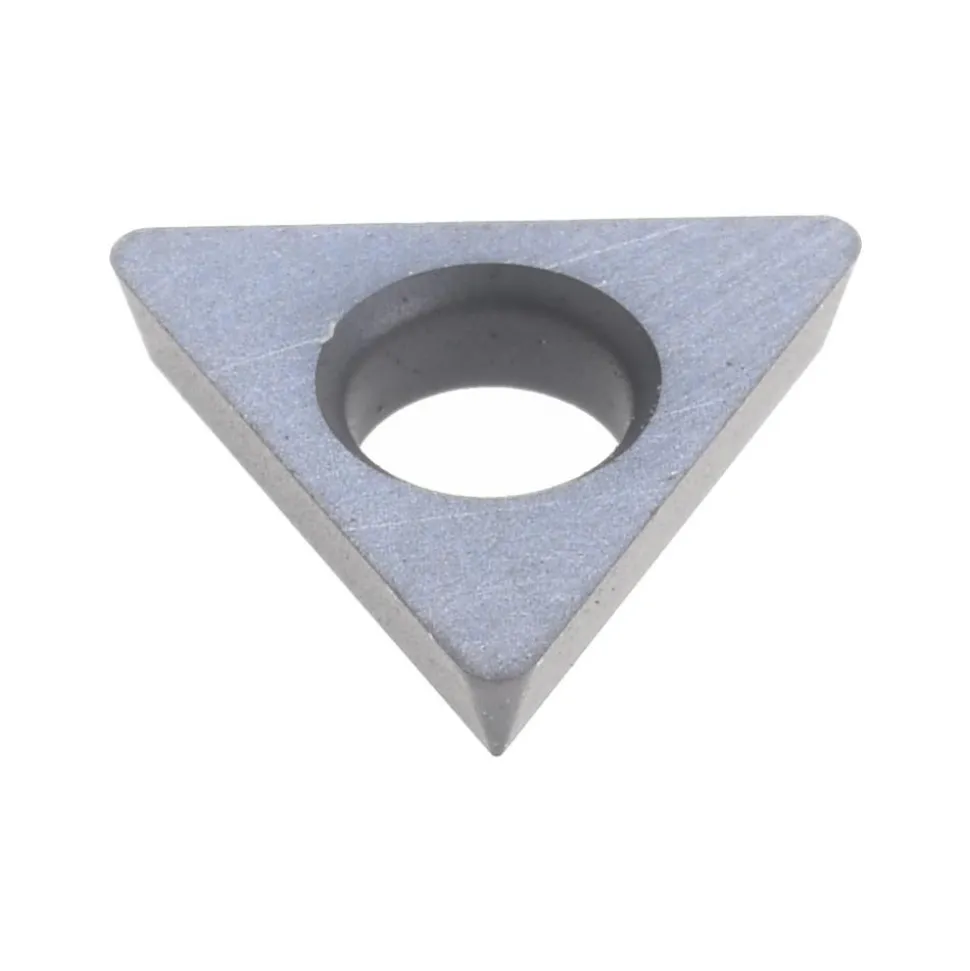

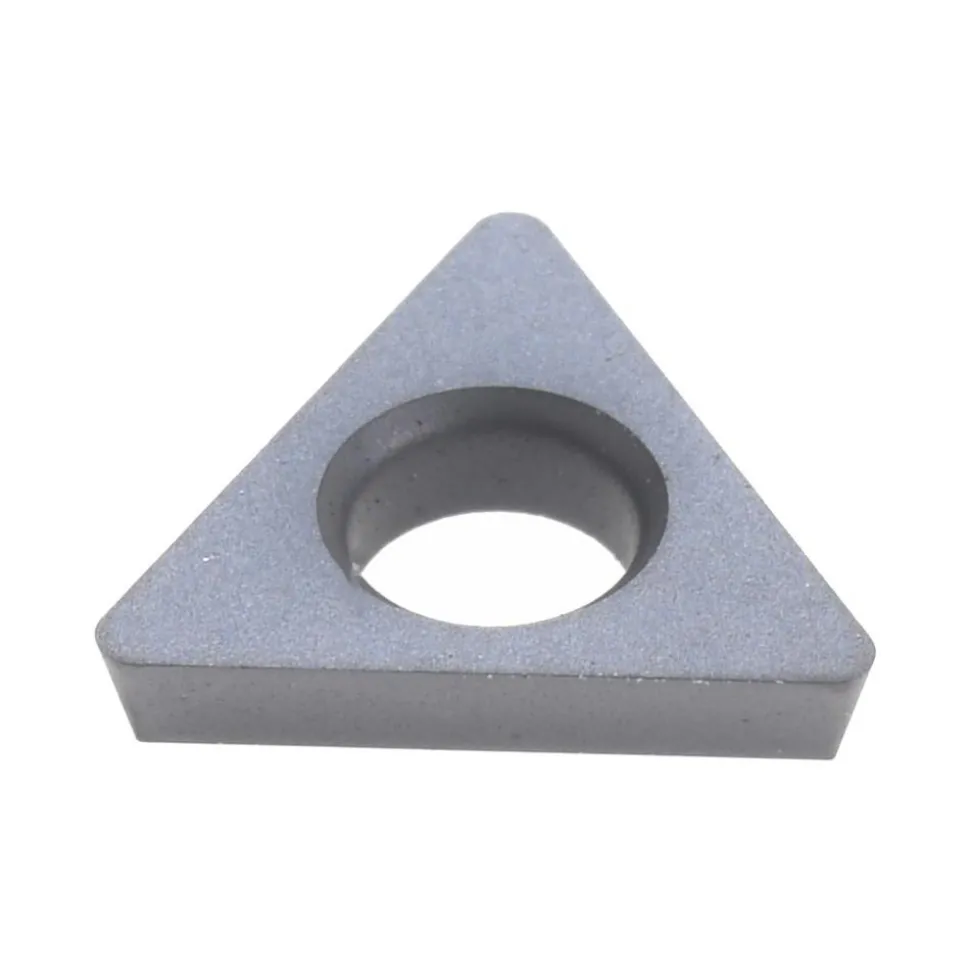

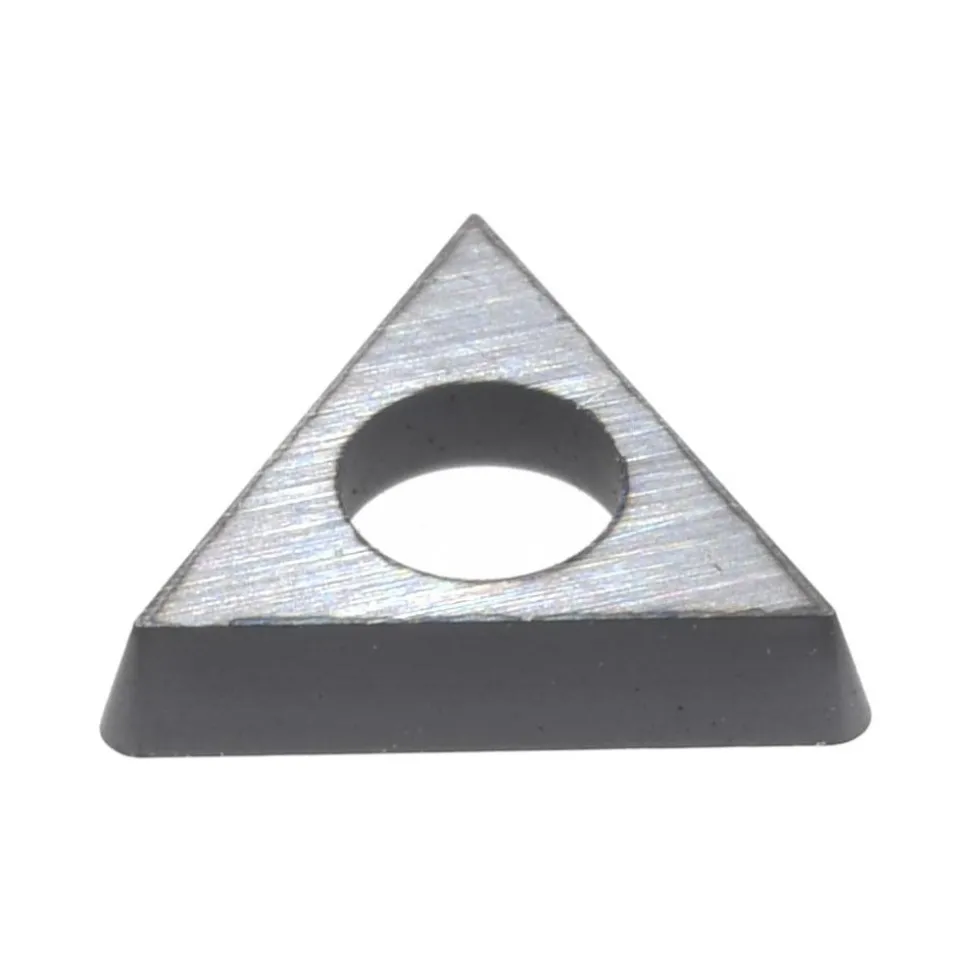

Boring Insert: TDHB1280751 KC5010, Solid Carbide

20,89 $

Specifications

Insert Style: TDHB	Insert Size Code: 1280751
Insert Material: Solid Carbide	Material Grade: Micrograin
Manufacturer Grade: KC5010	Thickness (Inch): 3/64
Inscribed Circle (Decimal Inch): 0.1600	Inscribed Circle (Inch): 5/32
Hole Diameter (Decimal Inch): 0.0950	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0150	Relief Angle: 15.000
Coating Process: PVD	Included Angle: 60.00
Shape: Triangle	Coating/Finish: Titanium Nitride
UNSPSC Code: 23242105	Thickness (Decimal Inch – 4 Decimals): 0.0470
Country of Origin: UNITED STATES
Insert Style: TDHB
Insert Size Code: 1280751
Insert Material: Solid Carbide
Material Grade: Micrograin
Manufacturer Grade: KC5010
Thickness (Inch): 3/64
Inscribed Circle (Decimal Inch): 0.1600
Inscribed Circle (Inch): 5/32
Hole Diameter (Decimal Inch): 0.0950
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0150
Relief Angle: 15.000
Coating Process: PVD
Included Angle: 60.00
Shape: Triangle
Coating/Finish: Titanium Nitride
UNSPSC Code: 23242105
Thickness (Decimal Inch – 4 Decimals): 0.0470
Country of Origin: UNITED STATES
