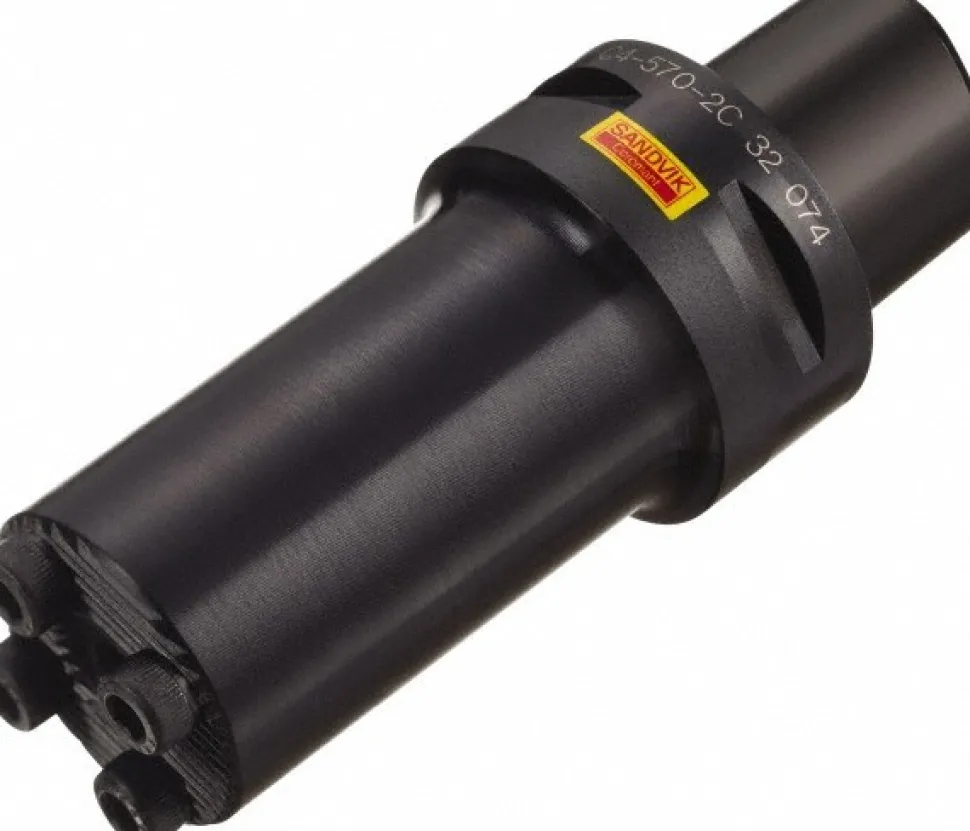

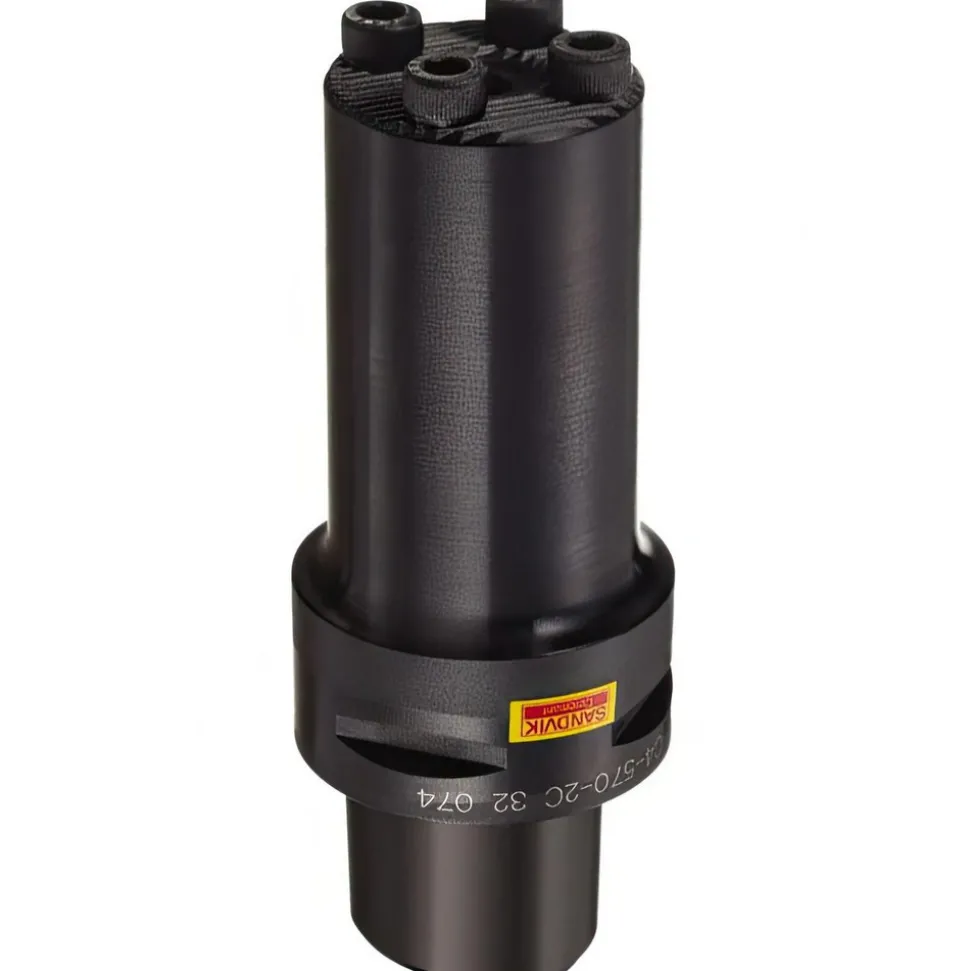

Boring Bar Modular Adapter: 1.5748″ ID

134,89 $

Specifications

Bore Diameter (mm): 40.00	Bore Diameter (Decimal Inch): 1.5748
Bore Depth (mm): 92.00	Bore Depth (Decimal Inch): 3.6221
Connection Size: C6	Body Diameter (mm): 63.00
Body Diameter (Decimal Inch): 2.4803	Lock Screw Size (Decimal Inch): 3.7600
Coolant Type: Internal	Body Length (Decimal Inch): 3.6221
Lock Screw Compatibility: 3212 010-358	Manufacturer’s Part Number: C6-570-2C 40 092
Body Length (mm): 92.00	UNSPSC Code: 27112800
Country of Origin: Sweden
Bore Diameter (mm): 40.00
Bore Diameter (Decimal Inch): 1.5748
Bore Depth (mm): 92.00
Bore Depth (Decimal Inch): 3.6221
Connection Size: C6
Body Diameter (mm): 63.00
Body Diameter (Decimal Inch): 2.4803
Lock Screw Size (Decimal Inch): 3.7600
Coolant Type: Internal
Body Length (Decimal Inch): 3.6221
Lock Screw Compatibility: 3212 010-358
Manufacturer’s Part Number: C6-570-2C 40 092
Body Length (mm): 92.00
UNSPSC Code: 27112800
Country of Origin: Sweden
