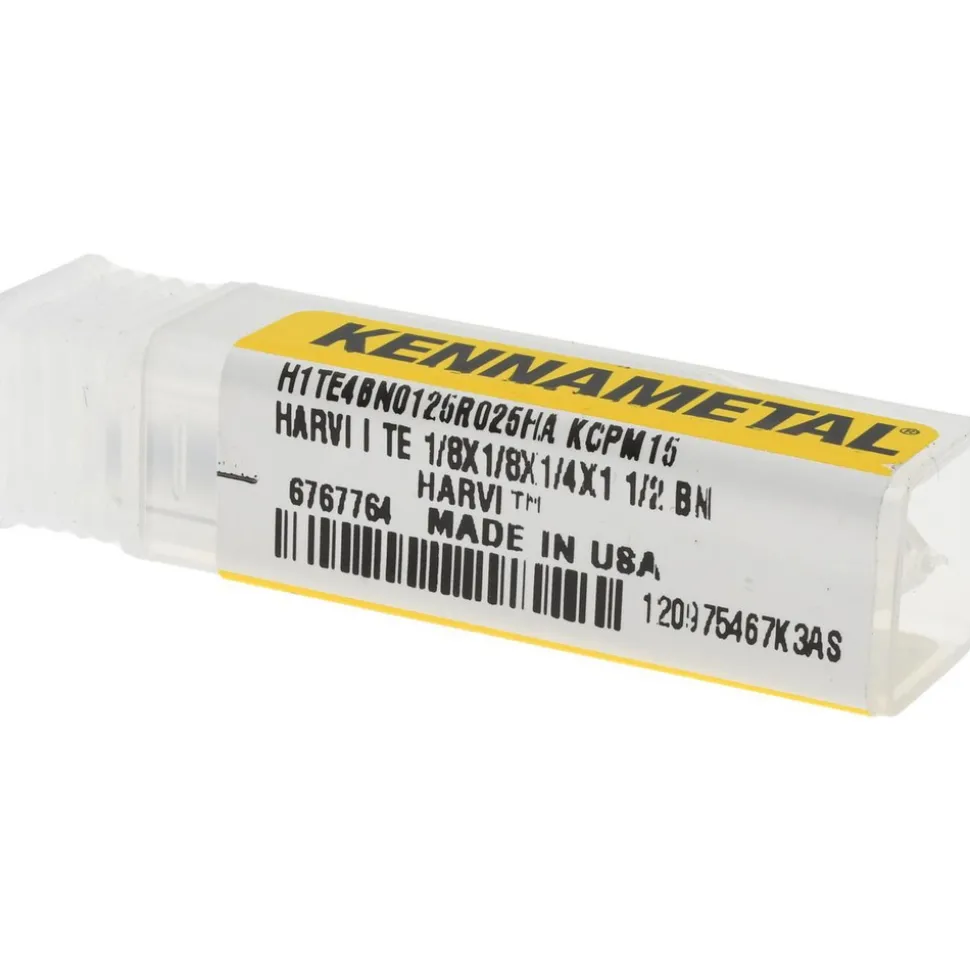

Ball End Mill: 1/8" Dia, 1/4" LOC, 4 Flute, Solid Carbide

Ball End Mill: 1/8″ Dia, 1/4″ LOC, 4 Flute, Solid Carbide

Name: Ball End Mill: 1/8" Dia, 1/4" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 39.89 USD
Availability: InStock

39,89 $

Shop Ball End Mill: 1/8″ Dia, 1/4″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.1250	Mill Diameter (Inch): 1/8
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.2500	Length of Cut (Inch): 1/4
Shank Diameter (Decimal Inch): 0.1200	Shank Diameter (Inch): 1/8
Overall Length (Inch): 1-1/2	Overall Length (Decimal Inch): 1.5000
Single Or Double End: Single	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 36-39
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials	Primary Workpiece Material Code: P; S; H; K; M
Coating/Finish: AlTiN	Variable Helix: Yes
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Shank Type: Straight-Cylindrical
Material Grade: KCPM15	Length Type: Standard
Coating Classification: PVD	Helix Style: Variable
Nose Radius (Decimal Inch): 0.0625	Neck Length (Decimal Inch): 0.0000
Neck Length (mm): 24.60	Reach Length (Decimal Inch): 0.2500
Series: H1TEBN..N-L	System Of Measurement: Fractional Inch
Additional Information: Versatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi™ I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi™ I Te Solid Carbide End Mills Stand for Maximum Metal Removal, Maximum Productivity, Maximum Benefit. Harvi™ I Te Solid Carbide End Mills Feature Asymmetrical Divided Flutes, Variable Helix, Twisted End Face, Facteted Eccentric Relief, & Chip Gashes Within the Flutes. Center Cutting for Plunging & Ramping Operations.	Manufacturers Catalog Number: H1TE4BN0125R025HA
Material Removal Type: Roughing & Finishing	UNSPSC Code: 27112803
Mill Diameter (Decimal Inch): 0.1250
Mill Diameter (Inch): 1/8
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.2500
Length of Cut (Inch): 1/4
Shank Diameter (Decimal Inch): 0.1200
Shank Diameter (Inch): 1/8
Overall Length (Inch): 1-1/2
Overall Length (Decimal Inch): 1.5000
Single Or Double End: Single
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 36-39
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
Primary Workpiece Material Code: P; S; H; K; M
Coating/Finish: AlTiN
Variable Helix: Yes
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Shank Type: Straight-Cylindrical
Material Grade: KCPM15
Length Type: Standard
Coating Classification: PVD
Helix Style: Variable
Nose Radius (Decimal Inch): 0.0625
Neck Length (Decimal Inch): 0.0000
Neck Length (mm): 24.60
Reach Length (Decimal Inch): 0.2500
Series: H1TEBN..N-L
System Of Measurement: Fractional Inch
Additional Information: Versatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi™ I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi™ I Te Solid Carbide End Mills Stand for Maximum Metal Removal, Maximum Productivity, Maximum Benefit. Harvi™ I Te Solid Carbide End Mills Feature Asymmetrical Divided Flutes, Variable Helix, Twisted End Face, Facteted Eccentric Relief, & Chip Gashes Within the Flutes. Center Cutting for Plunging & Ramping Operations.
Manufacturers Catalog Number: H1TE4BN0125R025HA
Material Removal Type: Roughing & Finishing
UNSPSC Code: 27112803
