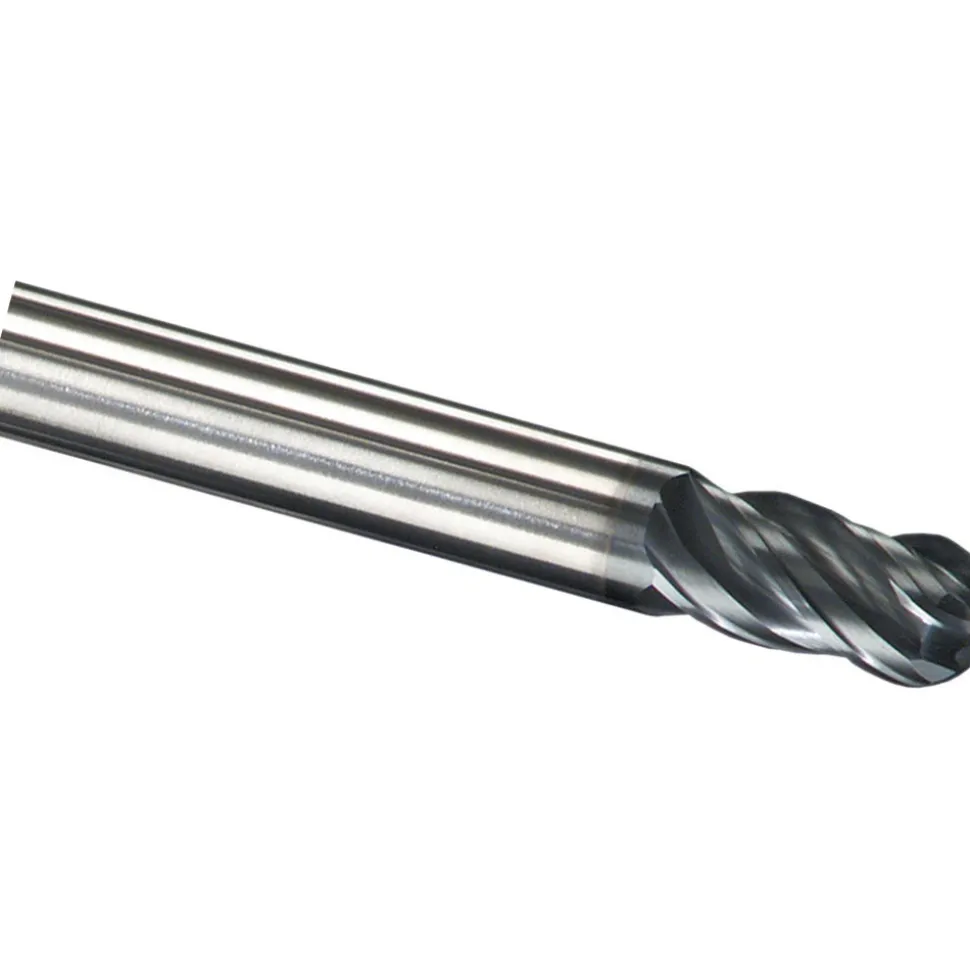

Ball End Mill: 1/4" Dia, 1/2" LOC, 4 Flute, Solid Carbide

Ball End Mill: 1/4″ Dia, 1/2″ LOC, 4 Flute, Solid Carbide

Name: Ball End Mill: 1/4" Dia, 1/2" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 32.99 USD
Availability: InStock

32,99 $

Shop Ball End Mill: 1/4″ Dia, 1/2″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: SGS Brand: SGS

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.2500	Mill Diameter (Inch): 1/4
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.5000	Length of Cut (Inch): 1/2
Shank Diameter (Inch): 1/4	Overall Length (Inch): 2-1/2
Single Or Double End: Single	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 35-38
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel	Primary Workpiece Material Code: P; S; K; M
Coating/Finish: AlTiN	Variable Helix: Yes
Variable Index: Yes	Chipbreaker: Yes
Flute Type: Spiral	Material Grade: Micrograin
Length Type: Regular	Mill Diameter Tolerance: +0.0000/-0.0012 in
Shank Diameter Tolerance: +0.0000/-0.0035 in	Series: Z1B
System Of Measurement: Fractional Inch	Material Removal Type: Finishing
UNSPSC Code: 27112803	Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.2500
Mill Diameter (Inch): 1/4
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.5000
Length of Cut (Inch): 1/2
Shank Diameter (Inch): 1/4
Overall Length (Inch): 2-1/2
Single Or Double End: Single
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 35-38
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code: P; S; K; M
Coating/Finish: AlTiN
Variable Helix: Yes
Variable Index: Yes
Chipbreaker: Yes
Flute Type: Spiral
Material Grade: Micrograin
Length Type: Regular
Mill Diameter Tolerance: +0.0000/-0.0012 in
Shank Diameter Tolerance: +0.0000/-0.0035 in
Series: Z1B
System Of Measurement: Fractional Inch
Material Removal Type: Finishing
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
