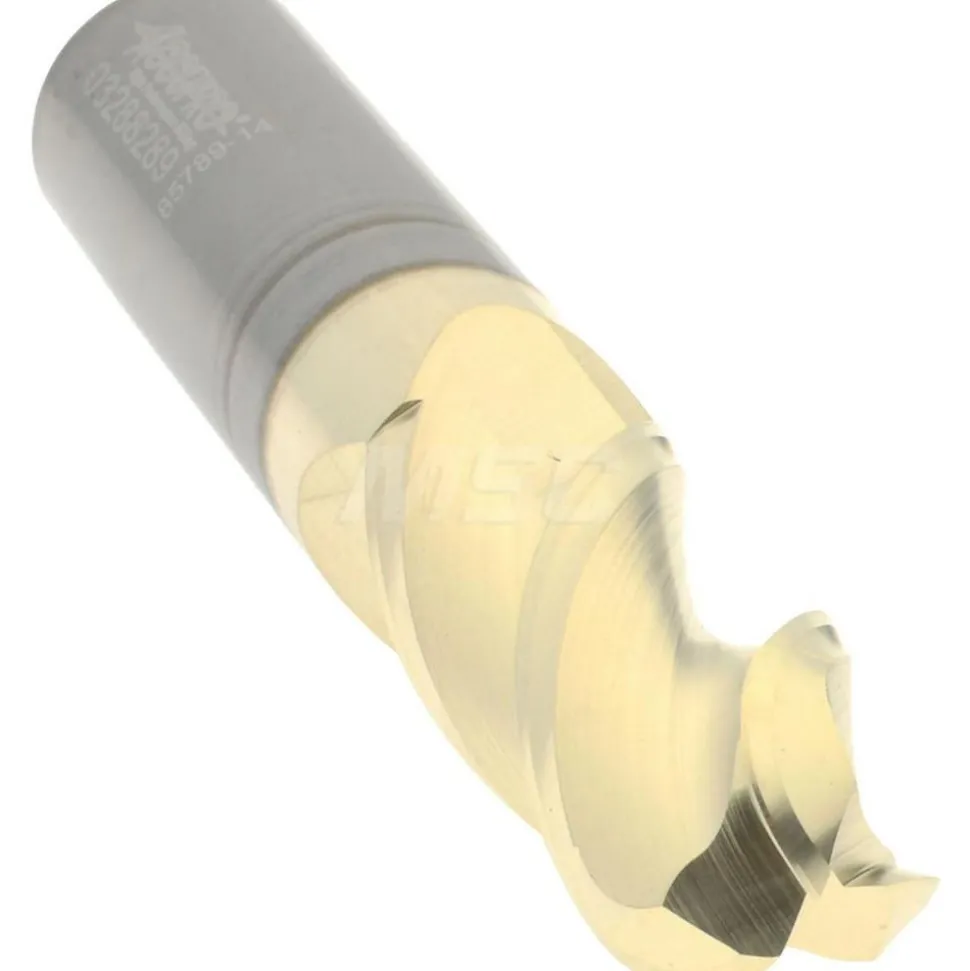

Ball End Mill: 1/2″ Dia, 1-1/4″ LOC, 3 Flute, Solid Carbide
104,89 $
Shop Ball End Mill: 1/2″ Dia, 1-1/4″ LOC, 3 Flute, Solid Carbide at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Decimal Inch): 0.5000 | Mill Diameter (Inch): 1/2 |
| Number Of Flutes: 3 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 1.2500 | Length of Cut (Inch): 1-1/4 |
| Shank Diameter (Inch): 1/2 | Overall Length (Inch): 3 |
| Overall Length (Decimal Inch): 3.0000 | Single Or Double End: Single |
| Coating/Finish Family: ZrN | Centercutting: Yes |
| Cutting Direction: Right Hand | Flute Direction: Right Hand |
| Extended Reach: No | Coolant Through: No |
| Helix Angle: 37 | Primary Workpiece Material: Aluminum & Non-Ferrous |
| Primary Workpiece Material Code: N | Coating/Finish: ZrN |
| Variable Helix: No | Variable Index: No |
| Chipbreaker: No | Flute Type: Spiral |
| Material Grade: Micrograin | Mill Diameter Tolerance: +0.0000/-0.0020 in |
| Shank Diameter Tolerance: +0.0001/-0.0004 in | Series: ABSC3-Z-CC |
| System Of Measurement: Fractional Inch | UNSPSC Code: 27112803 |
| Country of Origin: UNITED STATES | |
| Mill Diameter (Decimal Inch): 0.5000 | |
| Mill Diameter (Inch): 1/2 | |
| Number Of Flutes: 3 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 1.2500 | |
| Length of Cut (Inch): 1-1/4 | |
| Shank Diameter (Inch): 1/2 | |
| Overall Length (Inch): 3 | |
| Overall Length (Decimal Inch): 3.0000 | |
| Single Or Double End: Single | |
| Coating/Finish Family: ZrN | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 37 | |
| Primary Workpiece Material: Aluminum & Non-Ferrous | |
| Primary Workpiece Material Code: N | |
| Coating/Finish: ZrN | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Material Grade: Micrograin | |
| Mill Diameter Tolerance: +0.0000/-0.0020 in | |
| Shank Diameter Tolerance: +0.0001/-0.0004 in | |
| Series: ABSC3-Z-CC | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 03288289 |
| Mfr# | 315285 |
| Big Book# | 503 |
