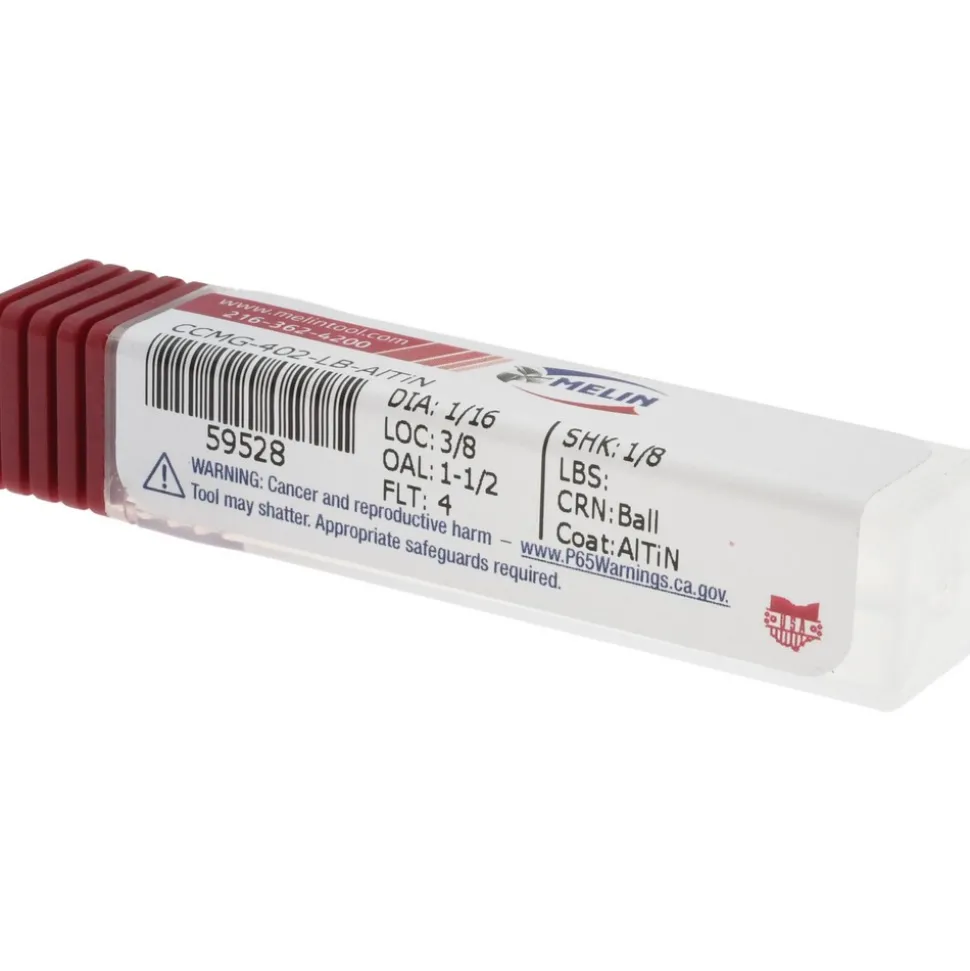

Ball End Mill: 1/16" Dia, 3/8" LOC, 4 Flute, Solid Carbide

Ball End Mill: 1/16″ Dia, 3/8″ LOC, 4 Flute, Solid Carbide

Name: Ball End Mill: 1/16" Dia, 3/8" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 16.89 USD
Availability: InStock

16,89 $

Shop Ball End Mill: 1/16″ Dia, 3/8″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: Melin Tool Brand: Melin Tool

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.0625	Mill Diameter (Inch): 1/16
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.3750	Length of Cut (Inch): 3/8
Shank Diameter (Inch): 1/8	Overall Length (Inch): 1-1/2
Single Or Double End: Single	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials	Primary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: AlTiN	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Length Type: Long
Mill Diameter Tolerance: +0.0005/-0.0005 in	Series: CCMG-__-B
System Of Measurement: Fractional Inch	Material Removal Type: Roughing & Finishing
UNSPSC Code: 27112803	Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.0625
Mill Diameter (Inch): 1/16
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.3750
Length of Cut (Inch): 3/8
Shank Diameter (Inch): 1/8
Overall Length (Inch): 1-1/2
Single Or Double End: Single
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
Primary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: AlTiN
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Length Type: Long
Mill Diameter Tolerance: +0.0005/-0.0005 in
Series: CCMG-__-B
System Of Measurement: Fractional Inch
Material Removal Type: Roughing & Finishing
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
