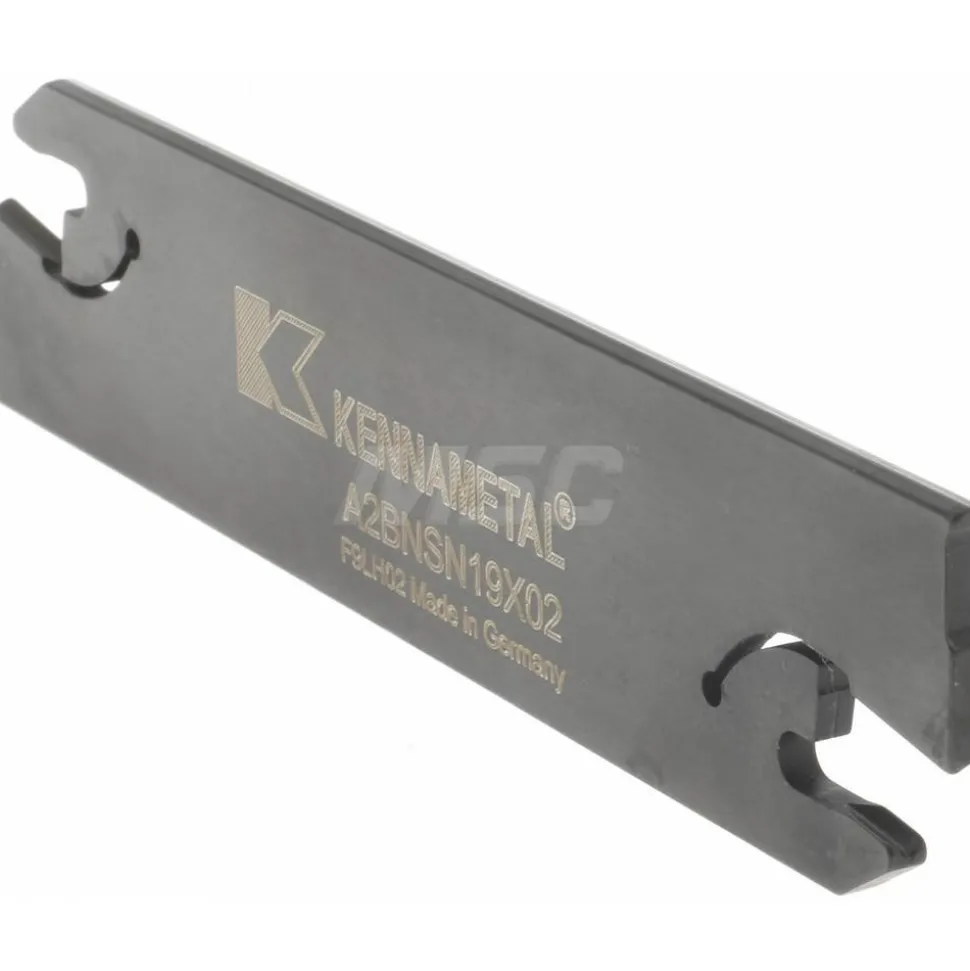

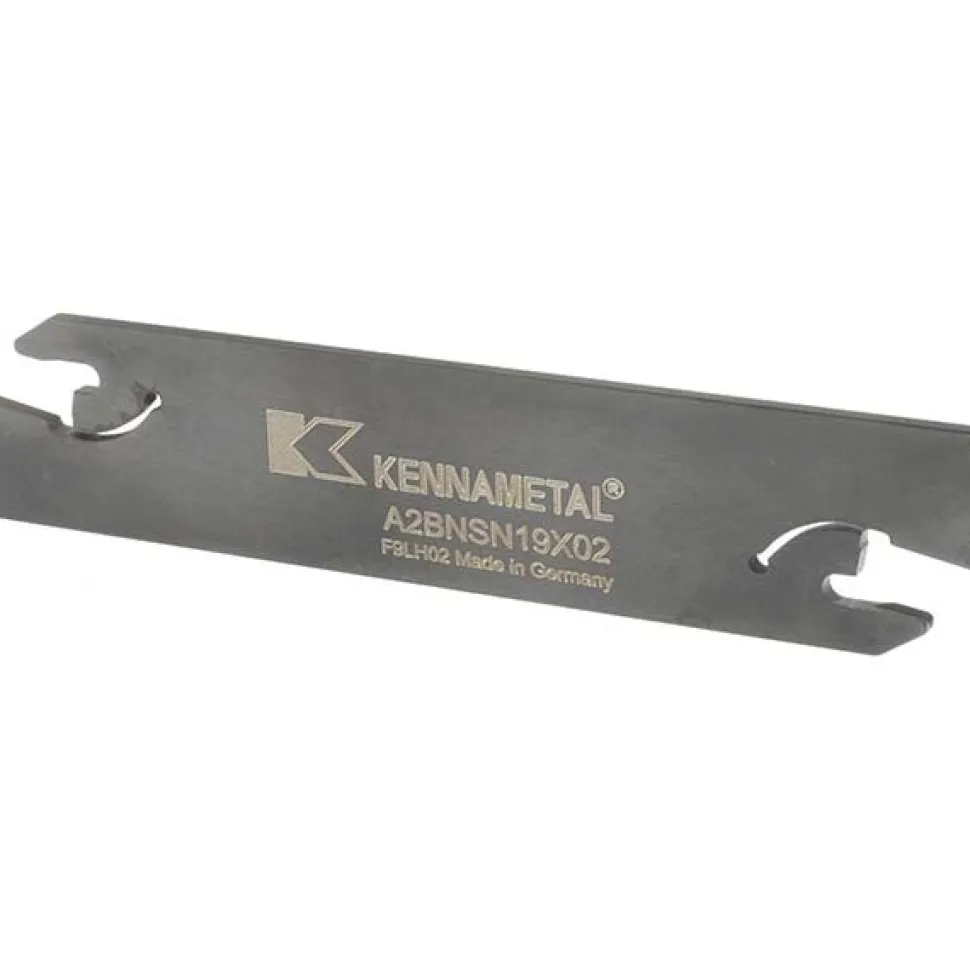

A2BNSN Double End Neutral Indexable Cutoff Blade

Original price was: 171,00 $.Current price is: 111,89 $.

Specifications

End Type: Double	Cutting Direction: Neutral
Blade Height (mm): 19.00	Blade Height (Decimal Inch): 0.7480
Blade Width (Decimal Inch): 0.0700	Blade Width (mm): 1.80
Blade Overall Length (Decimal Inch): 3.3858	Blade Overall Length (mm): 86.00
Blade Style: A2BNSN	Insert Holding Method: Self Grip
Series: A2 Cut-Off	Insert Style: A2 022…
Insert Width (mm): 2.20	Insert Seat Size: 2
Maximum Depth of Cut (Decimal Inch): 0.7900	Maximum Depth of Cut (mm): 20.00
Cutting Height (mm): 15.50	Cutting Height (Decimal Inch): 0.6102
Minimum Insert Width (Decimal Inch): 0.0866	Minimum Insert Width (mm): 2.20
MSC/Manufacturer Number: A2BNSN19X02	Insert Width: 0.0866
Coating Classification: Kennametal	UNSPSC Code: 23241600
Country of Origin: Germany
End Type: Double
Cutting Direction: Neutral
Blade Height (mm): 19.00
Blade Height (Decimal Inch): 0.7480
Blade Width (Decimal Inch): 0.0700
Blade Width (mm): 1.80
Blade Overall Length (Decimal Inch): 3.3858
Blade Overall Length (mm): 86.00
Blade Style: A2BNSN
Insert Holding Method: Self Grip
Series: A2 Cut-Off
Insert Style: A2 022…
Insert Width (mm): 2.20
Insert Seat Size: 2
Maximum Depth of Cut (Decimal Inch): 0.7900
Maximum Depth of Cut (mm): 20.00
Cutting Height (mm): 15.50
Cutting Height (Decimal Inch): 0.6102
Minimum Insert Width (Decimal Inch): 0.0866
Minimum Insert Width (mm): 2.20
MSC/Manufacturer Number: A2BNSN19X02
Insert Width: 0.0866
Coating Classification: Kennametal
UNSPSC Code: 23241600
Country of Origin: Germany
