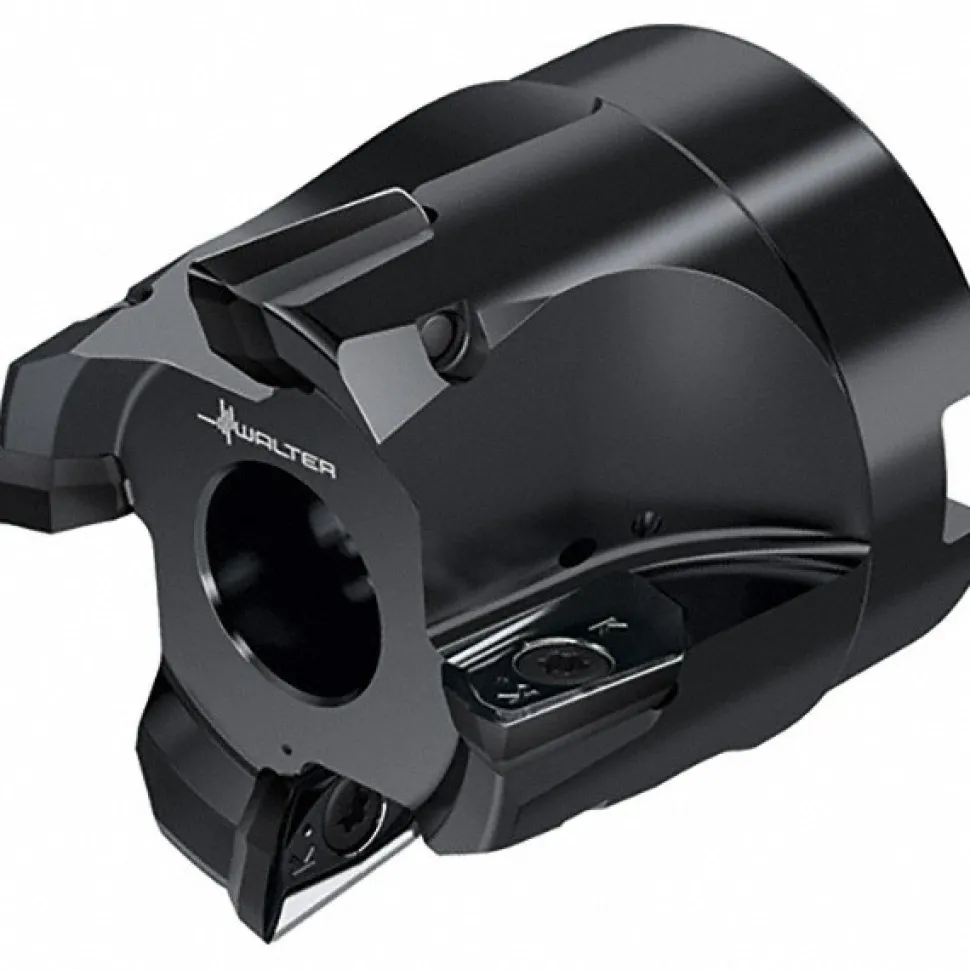

76.2mm Cut Dia, 25.4mm Arbor Hole Dia, Indexable Square-Shoulder Face Mill
Original price was: 1 432,00 $.130,89 $Current price is: 130,89 $.
Specifications
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | Maximum Cutting Diameter (mm): 76.20 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Cutter Style: M2131 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0 | Series: M2131-UB1 |
| Maximum Ramping Angle: 4.00 | Overall Height (mm): 50.80 |
| Overall Height (Decimal Inch): 2.0000 | Tool Application: Ramping |
| Primary Workpiece Material: Non-Ferrous Metal | Primary Workpiece Material Code: N |
| Standards: ISO | Cutting Edge Length (Decimal Inch): 0.7870 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: Yes | Number Of Cutter Inserts: 5 |
| Number Of Flutes: 5 | Country of Origin: China |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Cutting Diameter (mm): 76.20 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Cutter Style: M2131 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0 | |
| Series: M2131-UB1 | |
| Maximum Ramping Angle: 4.00 | |
| Overall Height (mm): 50.80 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Tool Application: Ramping | |
| Primary Workpiece Material: Non-Ferrous Metal | |
| Primary Workpiece Material Code: N | |
| Standards: ISO | |
| Cutting Edge Length (Decimal Inch): 0.7870 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: China |
| MSC# | 54434741 |
| Mfr# | 6836982 |
