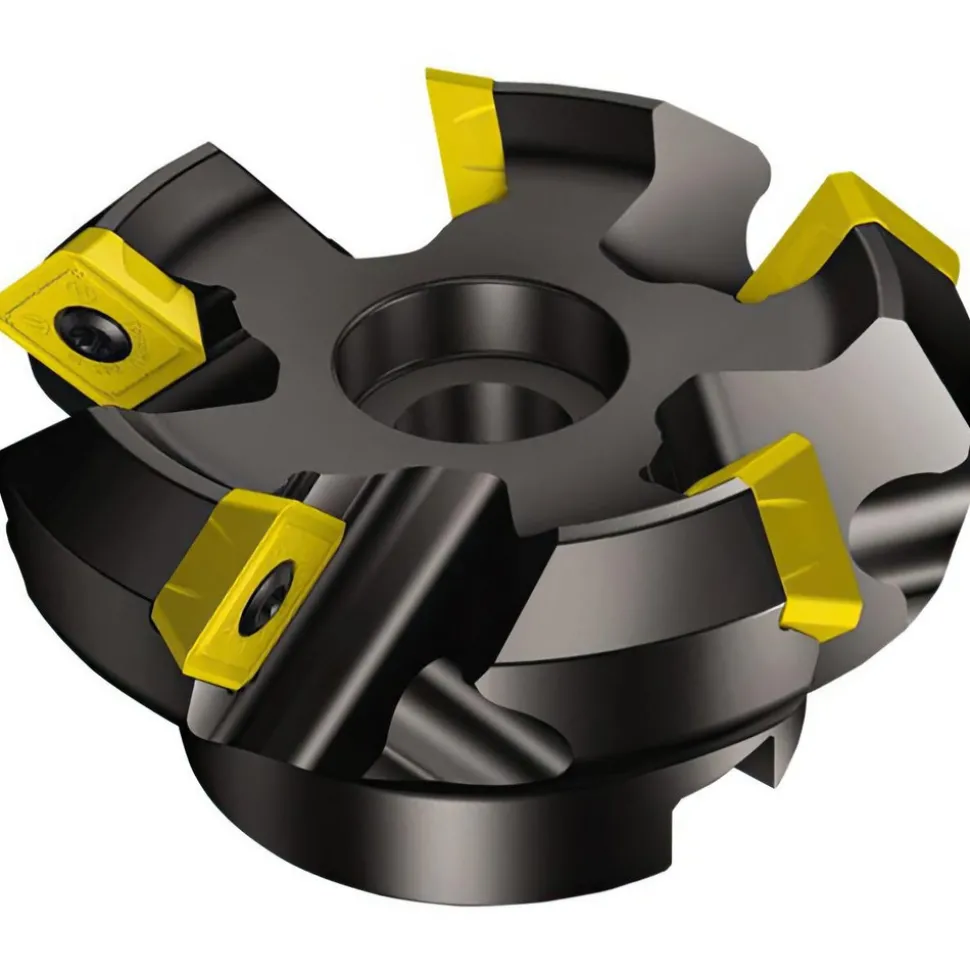

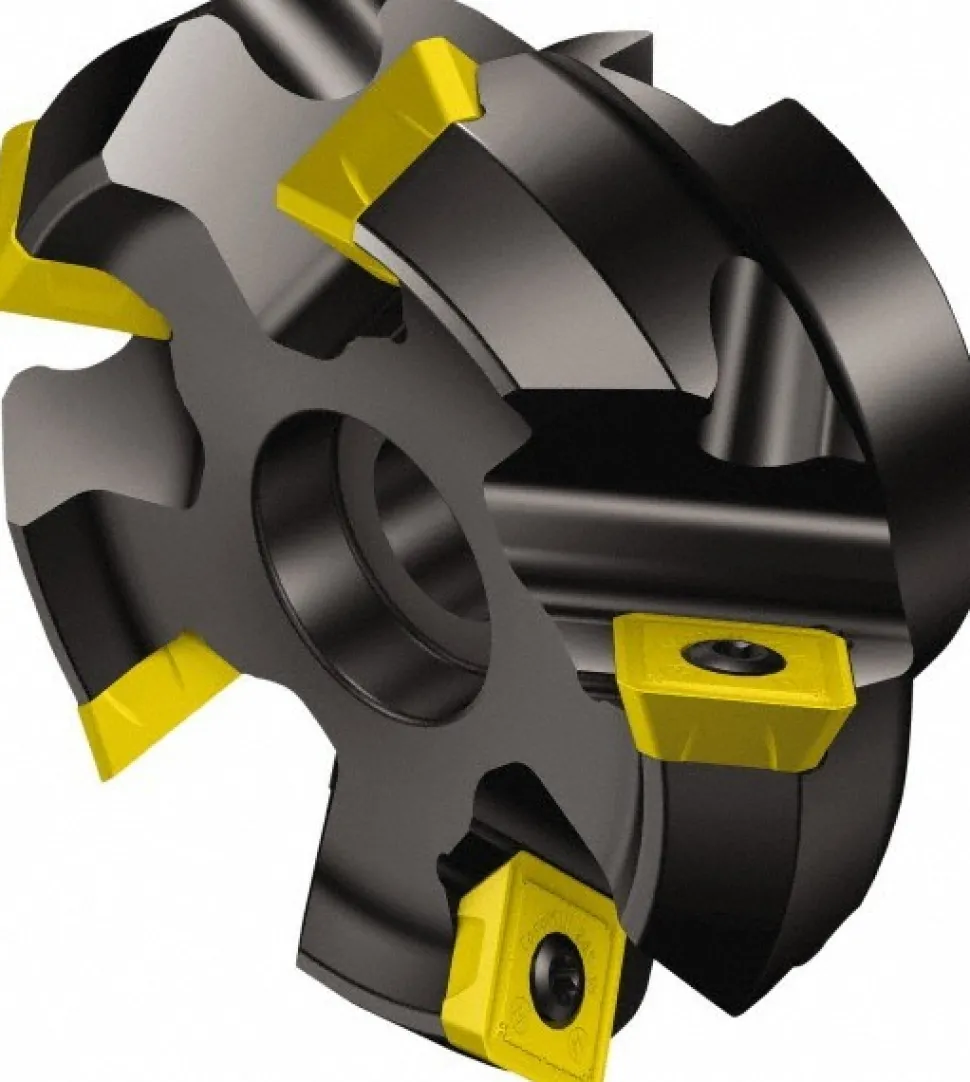

5" Cut Dia, 1-1/2" Arbor Hole, 0.24" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill

5″ Cut Dia, 1-1/2″ Arbor Hole, 0.24″ Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill

140,89 $

SKU: SKU2EmnHro6rN Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

Minimum Cutting Diameter (Decimal Inch): 5.0000	Minimum Cutting Diameter (Inch): 5
Maximum Cutting Diameter (Decimal Inch): 5.4920	Maximum Depth of Cut (Decimal Inch): 0.2400
Arbor Hole Diameter (Decimal Inch): 1.5000	Arbor Hole Diameter (Inch): 1-1/2
Compatible Insert Size Code: R245-12T3	Cutter Style: RA245..Rxx
Cutting Direction: Right Hand	Series: CoroMill 245
Keyway Width (Decimal Inch): 0.6331	Overall Height (Decimal Inch): 2.4803
Maximum RPM: 10100	Complete Insert Compatibility: R245-12T3..
Toolholder Material: Steel	Number Of Cutter Inserts: 8
Coolant Through: No	UNSPSC Code: 23291600
Country of Origin: UNITED STATES
Minimum Cutting Diameter (Decimal Inch): 5.0000
Minimum Cutting Diameter (Inch): 5
Maximum Cutting Diameter (Decimal Inch): 5.4920
Maximum Depth of Cut (Decimal Inch): 0.2400
Arbor Hole Diameter (Decimal Inch): 1.5000
Arbor Hole Diameter (Inch): 1-1/2
Compatible Insert Size Code: R245-12T3
Cutter Style: RA245..Rxx
Cutting Direction: Right Hand
Series: CoroMill 245
Keyway Width (Decimal Inch): 0.6331
Overall Height (Decimal Inch): 2.4803
Maximum RPM: 10100
Complete Insert Compatibility: R245-12T3..
Toolholder Material: Steel
Number Of Cutter Inserts: 8
Coolant Through: No
UNSPSC Code: 23291600
Country of Origin: UNITED STATES
