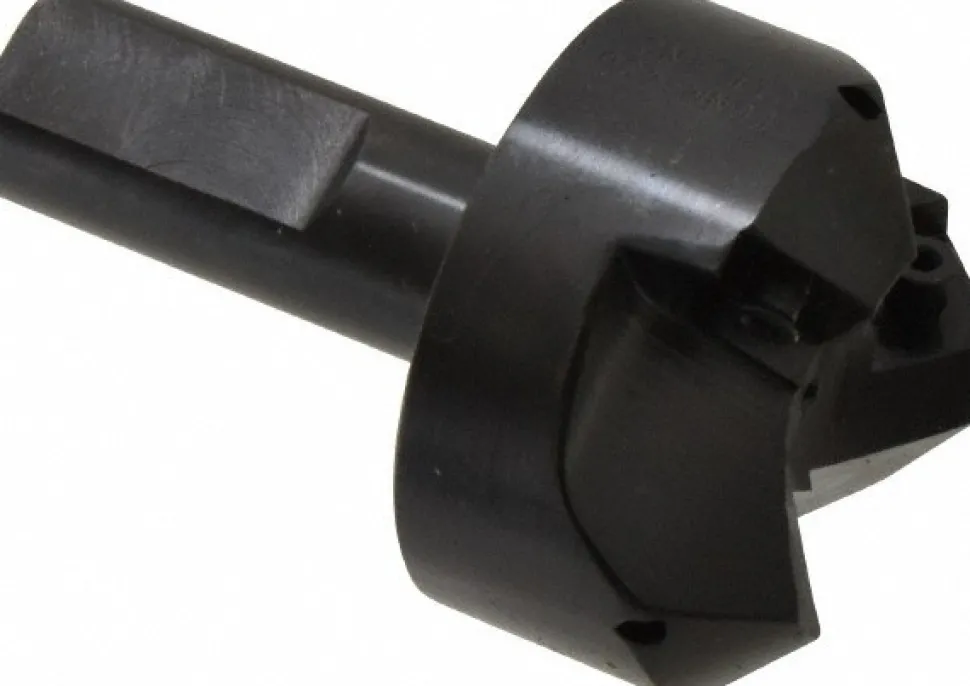

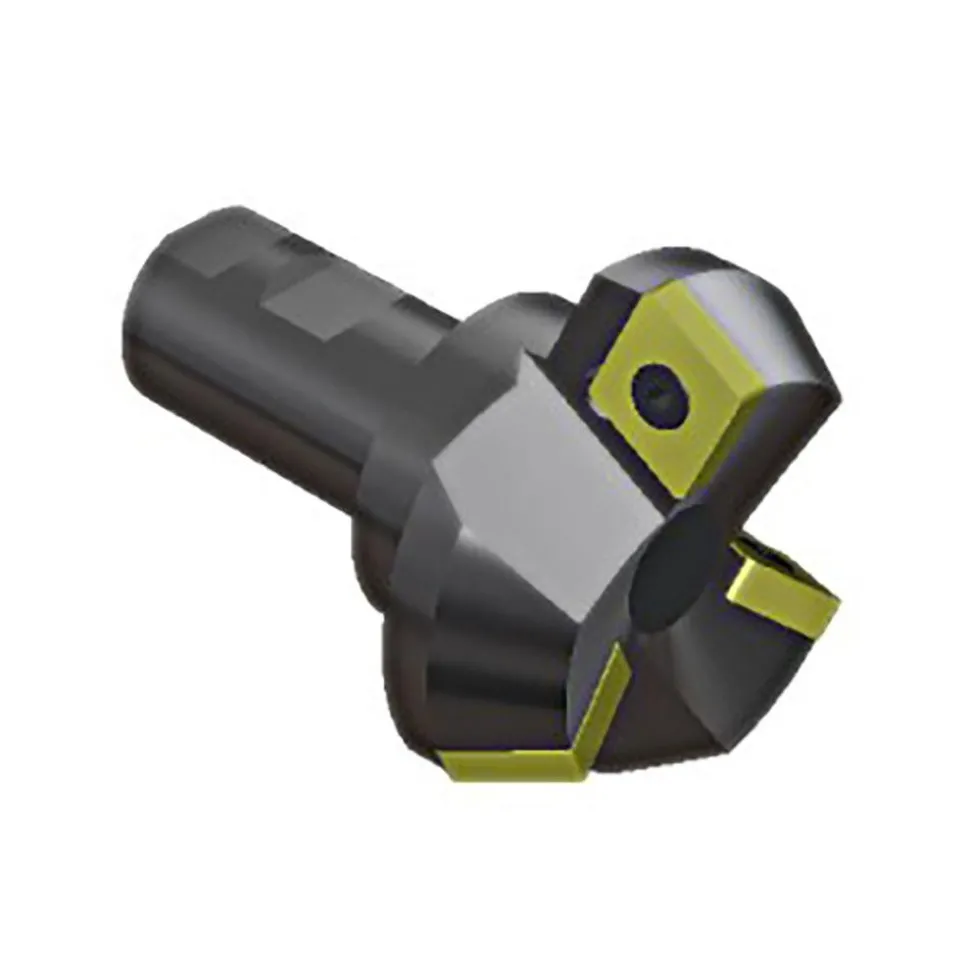

45° Lead Angle, 1-1/2" Cut Dia, Indexable & Chamfer End Mill

45° Lead Angle, 1-1/2″ Cut Dia, Indexable & Chamfer End Mill

134,99 $

SKU: SKUWM2s5X4hhG Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Cutting Tool Technologies Brand: Cutting Tool Technologies

Description
Reviews (0)

Specifications

Minimum Cutting Diameter (Inch): 1-1/2	Minimum Cutting Diameter (Decimal Inch): 1.5000
Maximum Cutting Diameter (Inch): 1-1/2	Maximum Cutting Diameter (Decimal Inch): 1.5000
Maximum Depth of Cut (Decimal Inch): 0.3200	Compatible Insert Size Code: CNMG 432
Shank Diameter (Inch): 3/4	Shank Diameter (Decimal Inch): 0.7500
Number Of Cutter Inserts: 3	Insert Style: CNMG 432
Insert Holding Method: Screw	Overall Length (Decimal Inch): 3.2500
Overall Height (Decimal Inch): 1.2500	Toolholder Style: ECNM
Maximum Body Diameter (Decimal Inch): 0.7500	Tool Application: Milling
Head Length (Decimal Inch): 1.2500	UNSPSC Code: 23291600
Number Of Flutes: 3	Included Angle Degree: 45
Shank Type: Flatted	Country of Origin: UNITED STATES
Minimum Cutting Diameter (Inch): 1-1/2
Minimum Cutting Diameter (Decimal Inch): 1.5000
Maximum Cutting Diameter (Inch): 1-1/2
Maximum Cutting Diameter (Decimal Inch): 1.5000
Maximum Depth of Cut (Decimal Inch): 0.3200
Compatible Insert Size Code: CNMG 432
Shank Diameter (Inch): 3/4
Shank Diameter (Decimal Inch): 0.7500
Number Of Cutter Inserts: 3
Insert Style: CNMG 432
Insert Holding Method: Screw
Overall Length (Decimal Inch): 3.2500
Overall Height (Decimal Inch): 1.2500
Toolholder Style: ECNM
Maximum Body Diameter (Decimal Inch): 0.7500
Tool Application: Milling
Head Length (Decimal Inch): 1.2500
UNSPSC Code: 23291600
Number Of Flutes: 3
Included Angle Degree: 45
Shank Type: Flatted
Country of Origin: UNITED STATES
