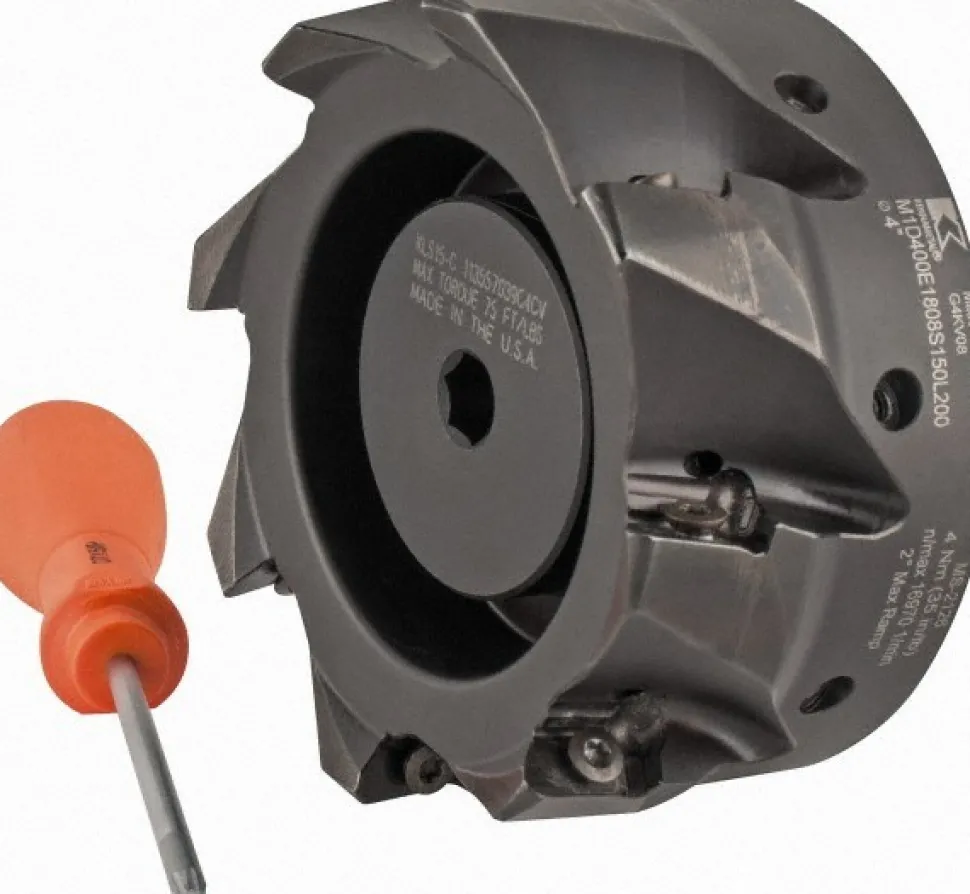

4″ Cut Dia, 1-1/2″ Arbor Hole Dia, 18.03mm Max Depth, Indexable Square-Shoulder Face Mill
120,99 $
Specifications
| Maximum Cutting Diameter (Inch): 4 | Maximum Cutting Diameter (Decimal Inch): 4.0000 |
| Maximum Cutting Diameter (mm): 101.60 | Maximum Depth of Cut (mm): 18.03 |
| Maximum Depth of Cut (Decimal Inch): 0.7100 | Arbor Hole Diameter (Inch): 1-1/2 |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | Compatible Insert Size Code: EC18..; EP18.. |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Lead Angle: 0/90 | Series: Mill 1-18 |
| Maximum Body Diameter (Decimal Inch): 3.8940 | Overall Height (mm): 50.80 |
| Overall Height (Inch): 2 | Overall Height (Decimal Inch): 2.0000 |
| Keyway Width (mm): 16.36 | Keyway Width (Decimal Inch): 0.6441 |
| Hub Diameter (mm): 92.08 | Hub Diameter (Decimal Inch): 3.6252 |
| Coolant Hole Diameter (Decimal Inch): 3.0000 | UNSPSC Code: 27112803 |
| Coolant Through: Yes | Number Of Cutter Inserts: 8 |
| Number Of Flutes: 8 | Country of Origin: Bulgaria |
| Maximum Cutting Diameter (Inch): 4 | |
| Maximum Cutting Diameter (Decimal Inch): 4.0000 | |
| Maximum Cutting Diameter (mm): 101.60 | |
| Maximum Depth of Cut (mm): 18.03 | |
| Maximum Depth of Cut (Decimal Inch): 0.7100 | |
| Arbor Hole Diameter (Inch): 1-1/2 | |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | |
| Compatible Insert Size Code: EC18..; EP18.. | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: Mill 1-18 | |
| Maximum Body Diameter (Decimal Inch): 3.8940 | |
| Overall Height (mm): 50.80 | |
| Overall Height (Inch): 2 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Keyway Width (mm): 16.36 | |
| Keyway Width (Decimal Inch): 0.6441 | |
| Hub Diameter (mm): 92.08 | |
| Hub Diameter (Decimal Inch): 3.6252 | |
| Coolant Hole Diameter (Decimal Inch): 3.0000 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 8 | |
| Number Of Flutes: 8 | |
| Country of Origin: Bulgaria |
| MSC# | 01230762 |
| Mfr# | 2267644 |
| Big Book# | 712 |
