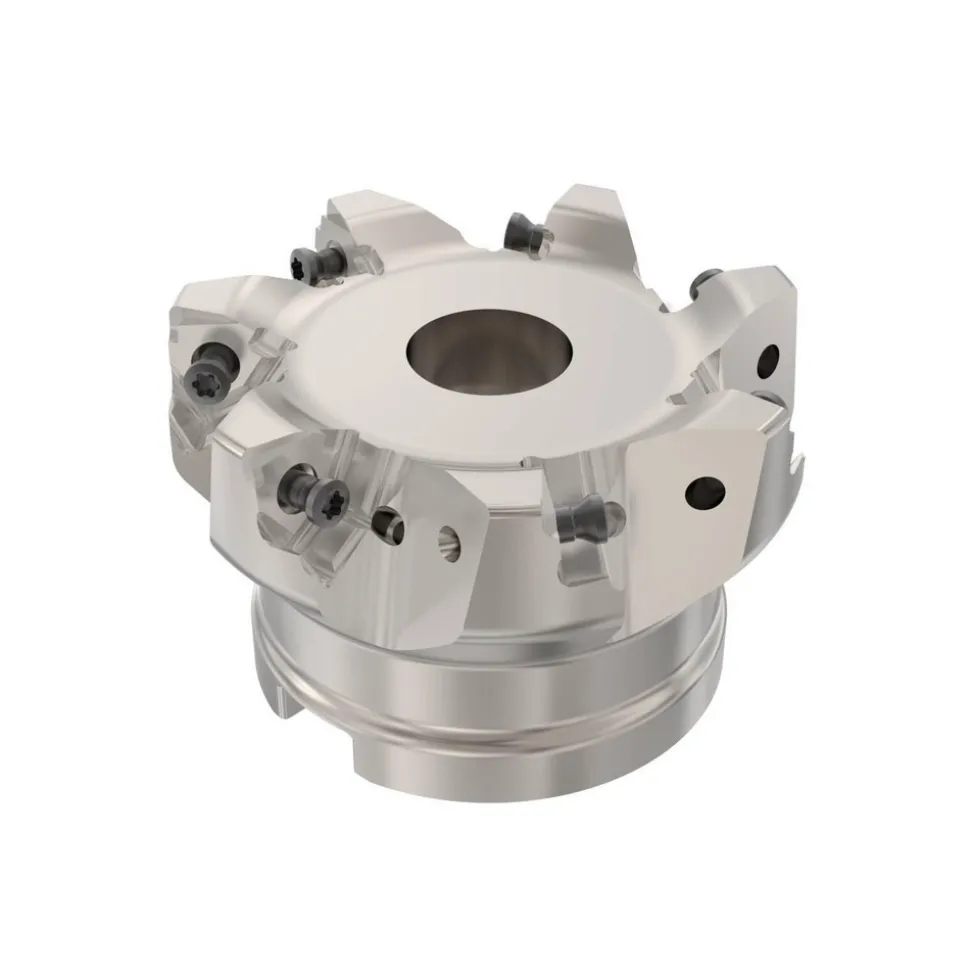

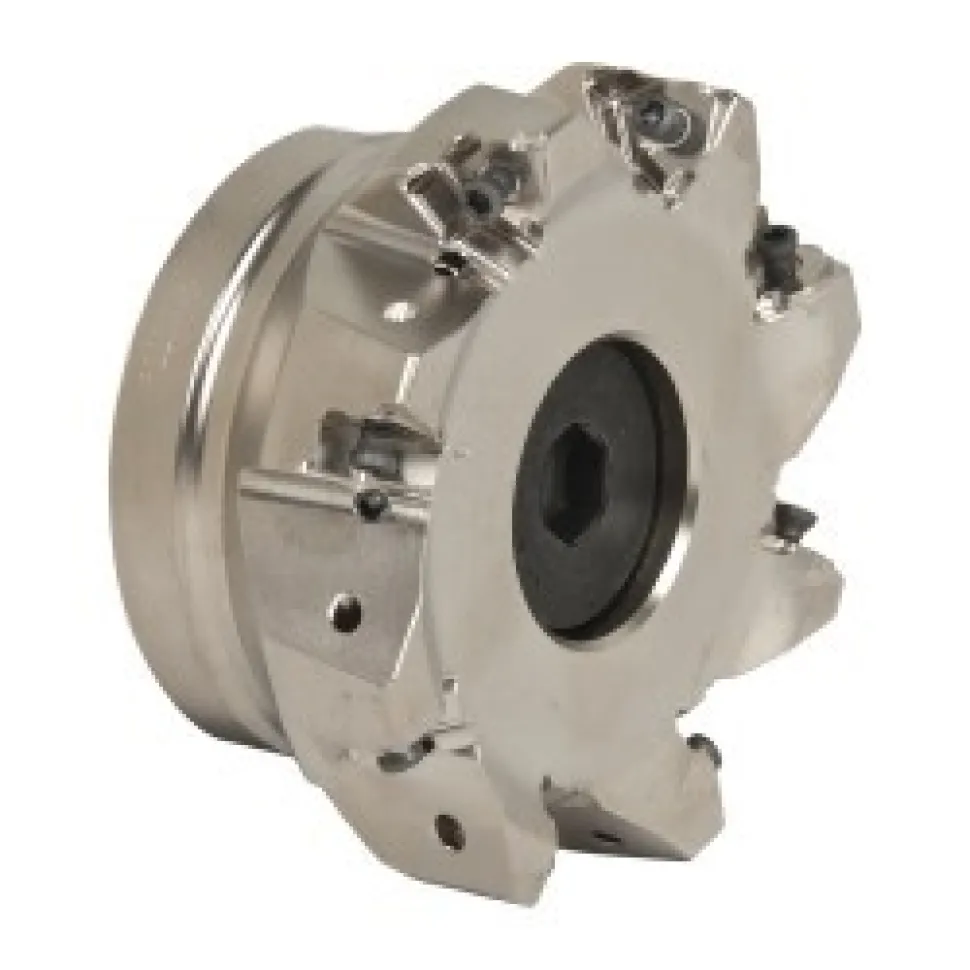

4″ Cut Dia, 1-1/2″ Arbor Hole Dia, 0.295″ Max Depth, Indexable Square-Shoulder Face Mill
126,89 $
Specifications
| Maximum Cutting Diameter (Inch): 4 | Maximum Cutting Diameter (Decimal Inch): 4.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.2950 | Arbor Hole Diameter (Inch): 1-1/2 |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | Compatible Insert Size Code: XNEX 0806 |
| Cutter Style: R220.96 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Rake: Negative | Series: Square 6 |
| Maximum Ramping Angle: 0.00 | Overall Height (Decimal Inch): 1.9700 |
| Keyway Width (Decimal Inch): 0.6300 | Hub Diameter (mm): 90.00 |
| Pitch Type: Medium | Tool Application: Slotting |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 8 | Number Of Flutes: 8 |
| Country of Origin: France | |
| Maximum Cutting Diameter (Inch): 4 | |
| Maximum Cutting Diameter (Decimal Inch): 4.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.2950 | |
| Arbor Hole Diameter (Inch): 1-1/2 | |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | |
| Compatible Insert Size Code: XNEX 0806 | |
| Cutter Style: R220.96 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Negative | |
| Series: Square 6 | |
| Maximum Ramping Angle: 0.00 | |
| Overall Height (Decimal Inch): 1.9700 | |
| Keyway Width (Decimal Inch): 0.6300 | |
| Hub Diameter (mm): 90.00 | |
| Pitch Type: Medium | |
| Tool Application: Slotting | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 8 | |
| Number Of Flutes: 8 | |
| Country of Origin: France |
| MSC# | 55189831 |
| Mfr# | 02642886 |
| Big Book# | 671 |
