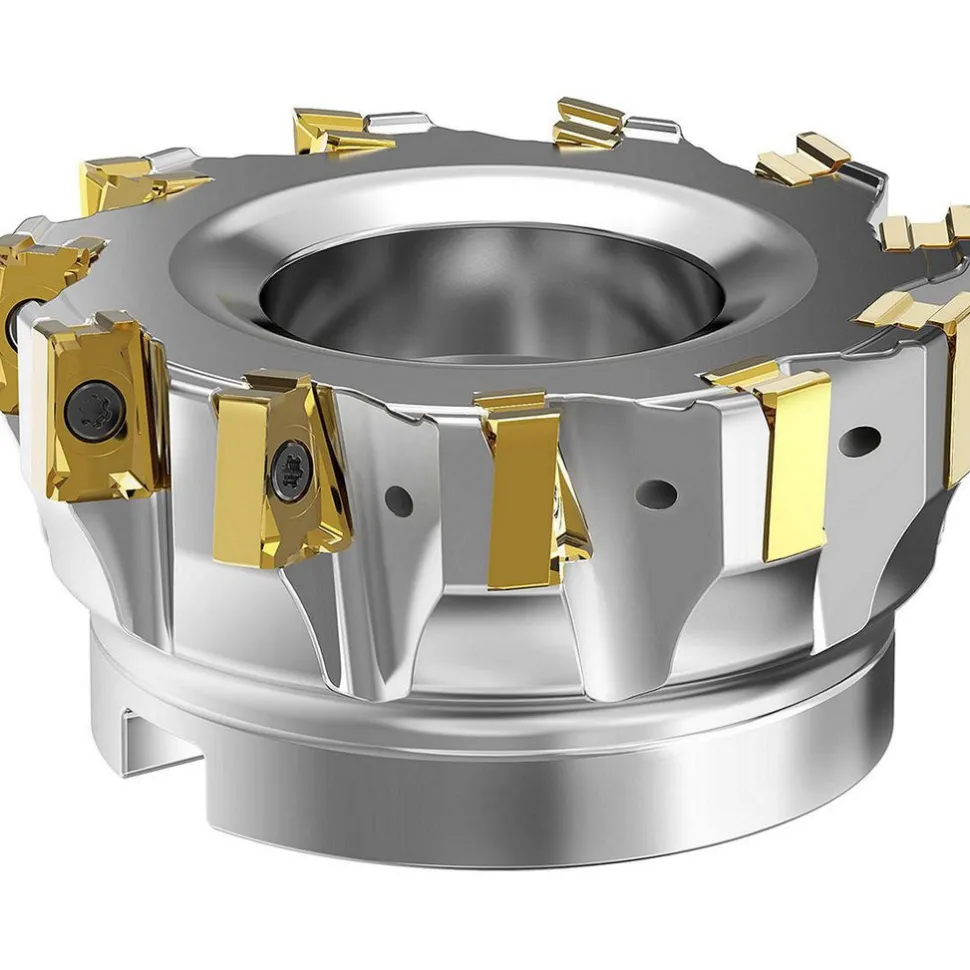

3" Cut Dia, 1" Arbor Hole Dia, 15.5mm Max Depth, Indexable Square-Shoulder Face Mill

3″ Cut Dia, 1″ Arbor Hole Dia, 15.5mm Max Depth, Indexable Square-Shoulder Face Mill

120,89 $

SKU: SKU9pk4ezf4RK Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Maximum Cutting Diameter (Inch): 3	Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Cutting Diameter (mm): 76.20	Maximum Depth of Cut (mm): 15.50
Maximum Depth of Cut (Decimal Inch): 0.6100	Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000	Compatible Insert Size Code: LNGU15T608SRGE
Insert Holding Method: Screw; Clamp	Lead Angle: 0
Series: MILL 4-15	Overall Height (mm): 44.45
Overall Height (Decimal Inch): 1.7500	UNSPSC Code: 27112803
Number Of Cutter Inserts: 7
Maximum Cutting Diameter (Inch): 3
Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Cutting Diameter (mm): 76.20
Maximum Depth of Cut (mm): 15.50
Maximum Depth of Cut (Decimal Inch): 0.6100
Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000
Compatible Insert Size Code: LNGU15T608SRGE
Insert Holding Method: Screw; Clamp
Lead Angle: 0
Series: MILL 4-15
Overall Height (mm): 44.45
Overall Height (Decimal Inch): 1.7500
UNSPSC Code: 27112803
Number Of Cutter Inserts: 7
