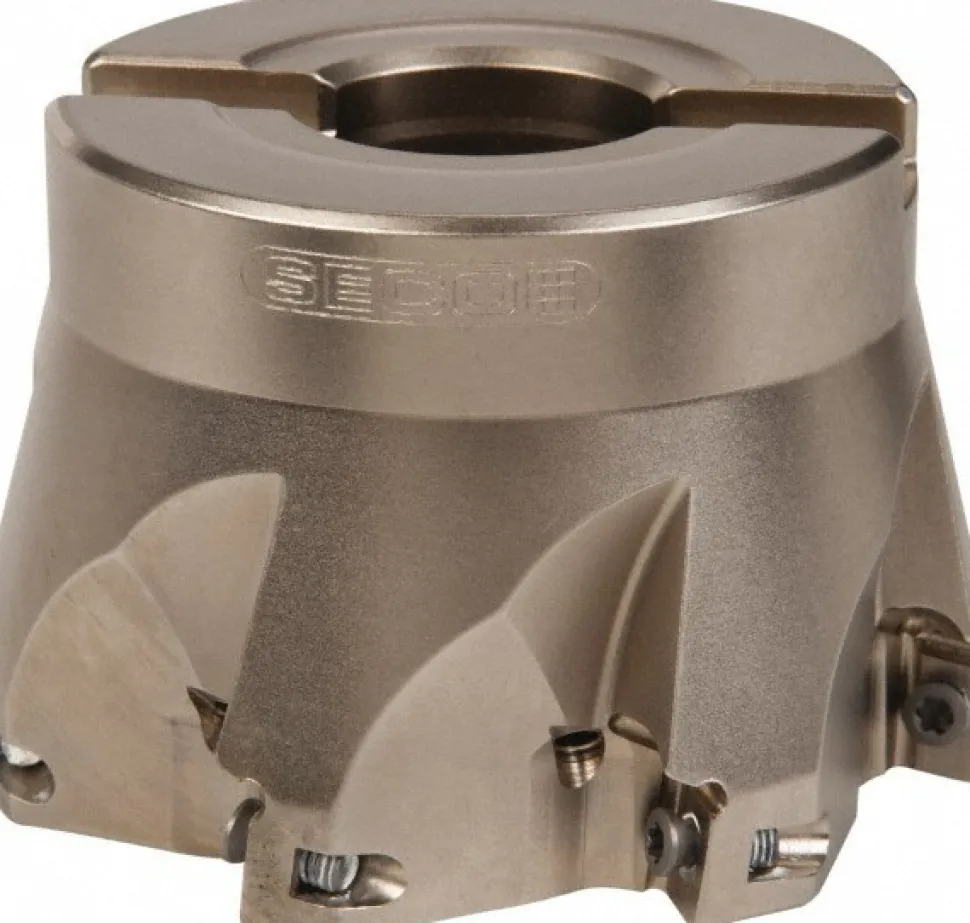

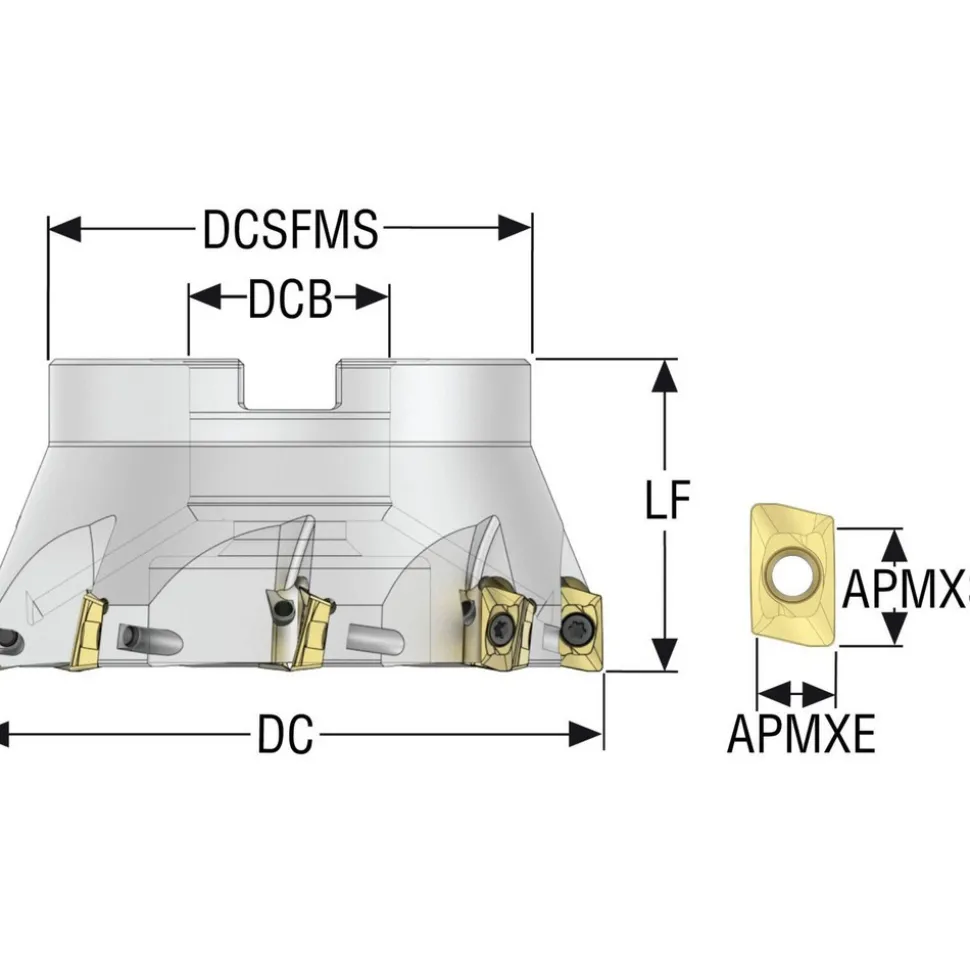

3″ Cut Dia, 1″ Arbor Hole Dia, 0.433″ Max Depth, Indexable Square-Shoulder Face Mill
122,99 $
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: XO X1204 |
| Cutter Style: R220.69 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Rake: Positive (Axial); Negative (Radial) | Series: Super Turbo |
| Maximum Ramping Angle: 1.00 | Overall Height (Inch): 2 |
| Overall Height (Decimal Inch): 2.0000 | Keyway Width (mm): 9.70 |
| Hub Diameter (mm): 62.00 | Tool Application: Helical Interpolation; Ramping; Slotting |
| Complete Insert Compatibility: XOMX 1204; XOEX1204 | UNSPSC Code: 27112803 |
| Coolant Through: Yes | Number Of Cutter Inserts: 7 |
| Number Of Flutes: 7 | Country of Origin: India |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: XO X1204 | |
| Cutter Style: R220.69 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Positive (Axial); Negative (Radial) | |
| Series: Super Turbo | |
| Maximum Ramping Angle: 1.00 | |
| Overall Height (Inch): 2 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Keyway Width (mm): 9.70 | |
| Hub Diameter (mm): 62.00 | |
| Tool Application: Helical Interpolation; Ramping; Slotting | |
| Complete Insert Compatibility: XOMX 1204; XOEX1204 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 7 | |
| Number Of Flutes: 7 | |
| Country of Origin: India |
| MSC# | 83251454 |
| Mfr# | 02689822 |
| Big Book# | 669 |
