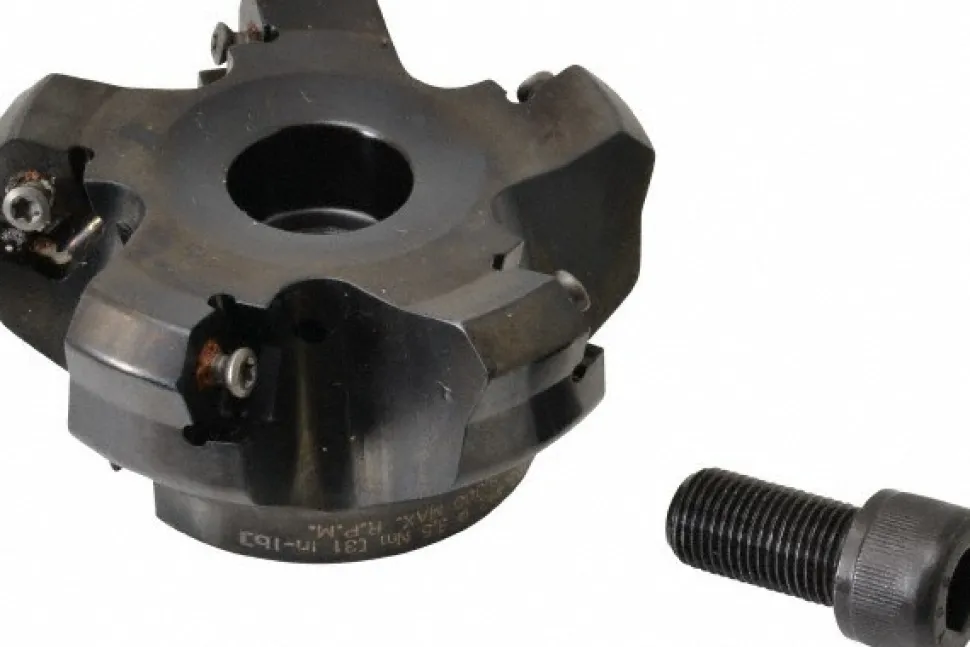

3" Cut Dia, 1" Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill

3″ Cut Dia, 1″ Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill

132,99 $

SKU: SKU3oJy3pZH3d Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Minimum Cutting Diameter (Decimal Inch): 3.0000	Minimum Cutting Diameter (Inch): 3
Maximum Cutting Diameter (Decimal Inch): 3.4330	Maximum Depth of Cut (mm): 4.50
Maximum Depth of Cut (Decimal Inch): 0.1770	Arbor Hole Diameter (mm): 25.40
Arbor Hole Diameter (Decimal Inch): 1.0000	Arbor Hole Diameter (Inch): 1
Compatible Insert Size Code: HNGJ 535ANENLD	Cutter Style: KSHR
Cutting Direction: Right Hand	Insert Holding Method: Screw
Series: Dodeka Series	Hub Diameter (Decimal Inch): 2.1890
Overall Height (Inch): 1-3/4	Overall Height (Decimal Inch): 1.7500
Maximum Body Diameter (Decimal Inch): 3.4330	Pitch Type: Extra Coarse
Maximum RPM: 8300	Number Of Cutter Inserts: 5
Coolant Through: Yes	Number Of Flutes: 5
UNSPSC Code: 23291600	Country of Origin: Bulgaria
Minimum Cutting Diameter (Decimal Inch): 3.0000
Minimum Cutting Diameter (Inch): 3
Maximum Cutting Diameter (Decimal Inch): 3.4330
Maximum Depth of Cut (mm): 4.50
Maximum Depth of Cut (Decimal Inch): 0.1770
Arbor Hole Diameter (mm): 25.40
Arbor Hole Diameter (Decimal Inch): 1.0000
Arbor Hole Diameter (Inch): 1
Compatible Insert Size Code: HNGJ 535ANENLD
Cutter Style: KSHR
Cutting Direction: Right Hand
Insert Holding Method: Screw
Series: Dodeka Series
Hub Diameter (Decimal Inch): 2.1890
Overall Height (Inch): 1-3/4
Overall Height (Decimal Inch): 1.7500
Maximum Body Diameter (Decimal Inch): 3.4330
Pitch Type: Extra Coarse
Maximum RPM: 8300
Number Of Cutter Inserts: 5
Coolant Through: Yes
Number Of Flutes: 5
UNSPSC Code: 23291600
Country of Origin: Bulgaria
