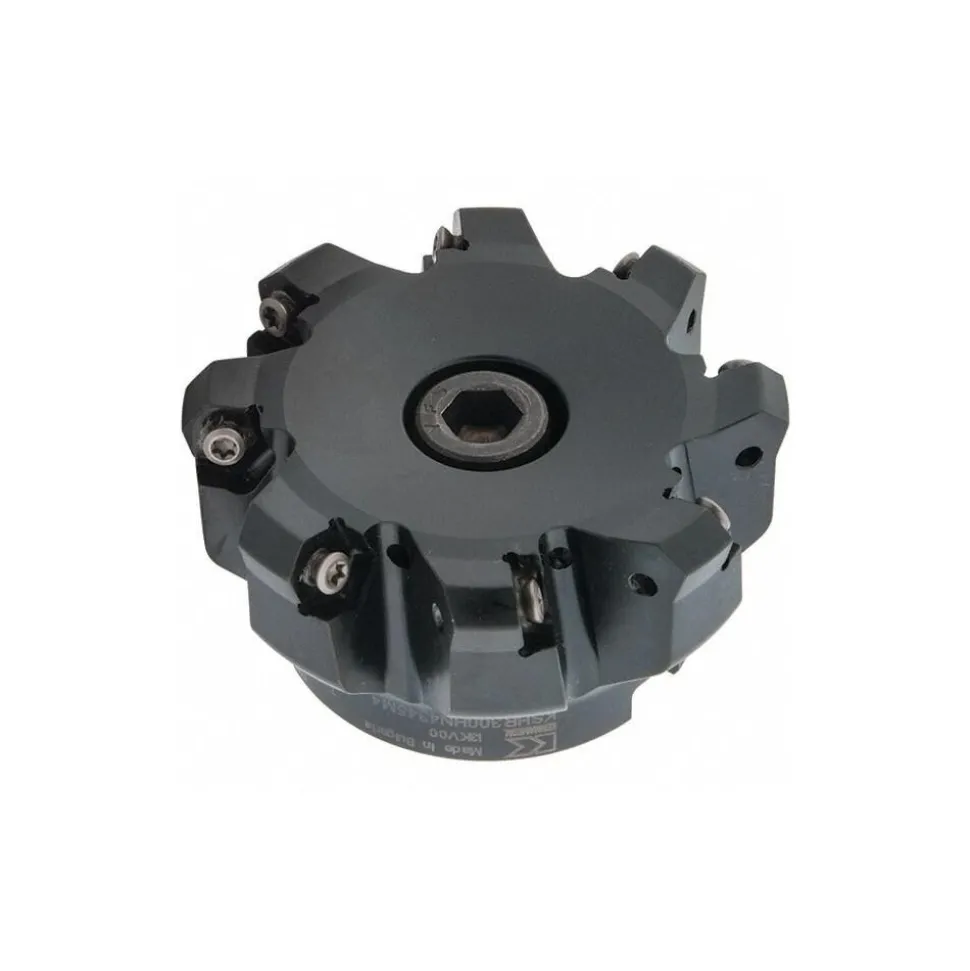

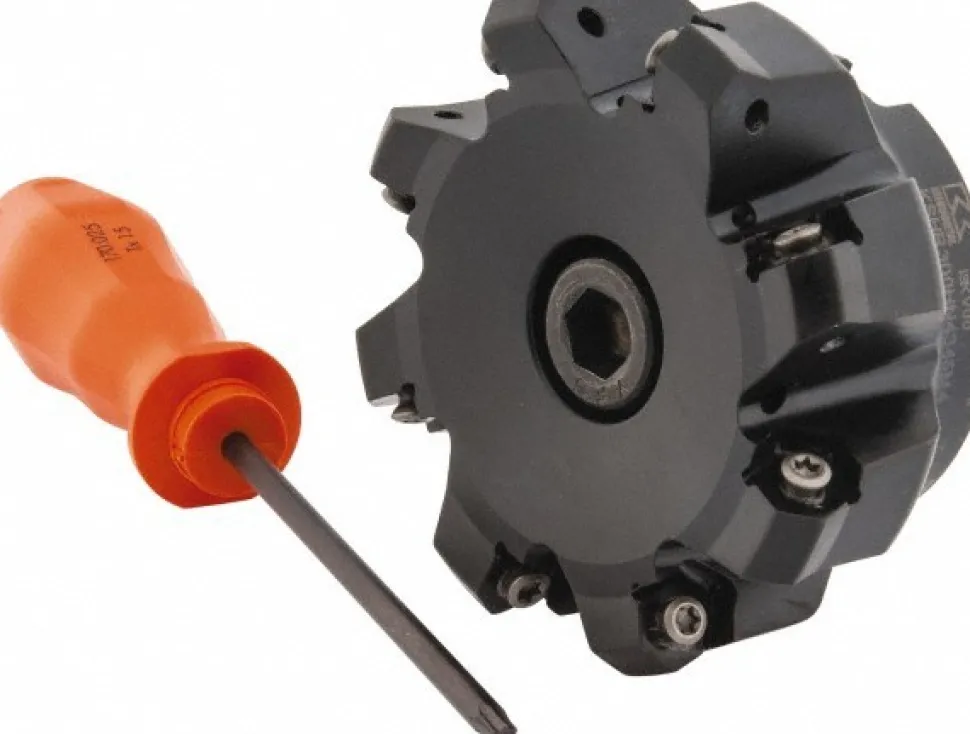

3″ Cut Dia, 1″ Arbor Hole, 3.23mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
Original price was: 1 229,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | Minimum Cutting Diameter (Inch): 3 |
| Maximum Cutting Diameter (Decimal Inch): 3.3208 | Maximum Depth of Cut (mm): 3.23 |
| Maximum Depth of Cut (Decimal Inch): 0.1270 | Arbor Hole Diameter (mm): 25.40 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Arbor Hole Diameter (Inch): 1 |
| Compatible Insert Size Code: HNGJ 0604 | Cutter Style: KSHR |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Series: Dodeka Series | Hub Diameter (mm): 55.60 |
| Hub Diameter (Decimal Inch): 2.1890 | Overall Height (mm): 44.45 |
| Overall Height (Decimal Inch): 1.7500 | Maximum Body Diameter (Decimal Inch): 3.2280 |
| Maximum RPM: 8300 | Complete Insert Compatibility: HNGJ 0604ANENLD |
| Number Of Cutter Inserts: 8 | Coolant Through: Yes |
| Number Of Flutes: 8 | UNSPSC Code: 23291600 |
| Country of Origin: Bulgaria | |
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | |
| Minimum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.3208 | |
| Maximum Depth of Cut (mm): 3.23 | |
| Maximum Depth of Cut (Decimal Inch): 0.1270 | |
| Arbor Hole Diameter (mm): 25.40 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Compatible Insert Size Code: HNGJ 0604 | |
| Cutter Style: KSHR | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: Dodeka Series | |
| Hub Diameter (mm): 55.60 | |
| Hub Diameter (Decimal Inch): 2.1890 | |
| Overall Height (mm): 44.45 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Maximum Body Diameter (Decimal Inch): 3.2280 | |
| Maximum RPM: 8300 | |
| Complete Insert Compatibility: HNGJ 0604ANENLD | |
| Number Of Cutter Inserts: 8 | |
| Coolant Through: Yes | |
| Number Of Flutes: 8 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Bulgaria |
| MSC# | 52545464 |
| Mfr# | 4130495 |
