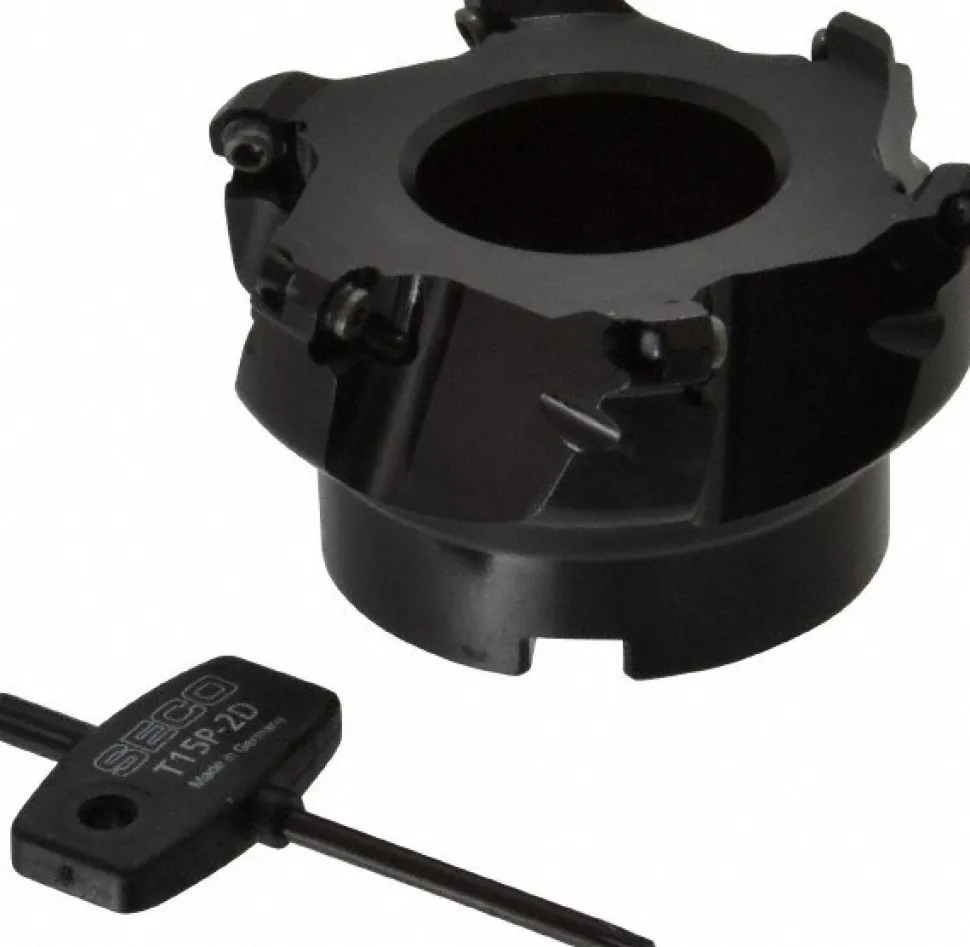

3.15″ Cut Dia, 1″ Arbor Hole, 0.138″ Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill
132,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.1500 | Maximum Cutting Diameter (Decimal Inch): 3.6200 |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Arbor Hole Diameter (Inch): 1 | Compatible Insert Size Code: OF 05T305 |
| Cutter Style: R220.43 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Positive |
| Series: R220.43 | Hub Diameter (Decimal Inch): 2.4410 |
| Keyway Width (mm): 9.70 | Keyway Width (Decimal Inch): 0.3800 |
| Overall Height (Inch): 2 | Overall Height (Decimal Inch): 2.0000 |
| Maximum Body Diameter (Decimal Inch): 3.5000 | Pitch Type: Normal |
| Maximum RPM: 9400 | Tool Application: Facing |
| Number Of Cutter Inserts: 6 | Coolant Through: No |
| Number Of Flutes: 6 | UNSPSC Code: 23291600 |
| Country of Origin: India | |
| Minimum Cutting Diameter (Decimal Inch): 3.1500 | |
| Maximum Cutting Diameter (Decimal Inch): 3.6200 | |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Compatible Insert Size Code: OF 05T305 | |
| Cutter Style: R220.43 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Positive | |
| Series: R220.43 | |
| Hub Diameter (Decimal Inch): 2.4410 | |
| Keyway Width (mm): 9.70 | |
| Keyway Width (Decimal Inch): 0.3800 | |
| Overall Height (Inch): 2 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Maximum Body Diameter (Decimal Inch): 3.5000 | |
| Pitch Type: Normal | |
| Maximum RPM: 9400 | |
| Tool Application: Facing | |
| Number Of Cutter Inserts: 6 | |
| Coolant Through: No | |
| Number Of Flutes: 6 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: India |
| MSC# | 06322119 |
| Mfr# | 00086840 |
| Big Book# | 672 |
