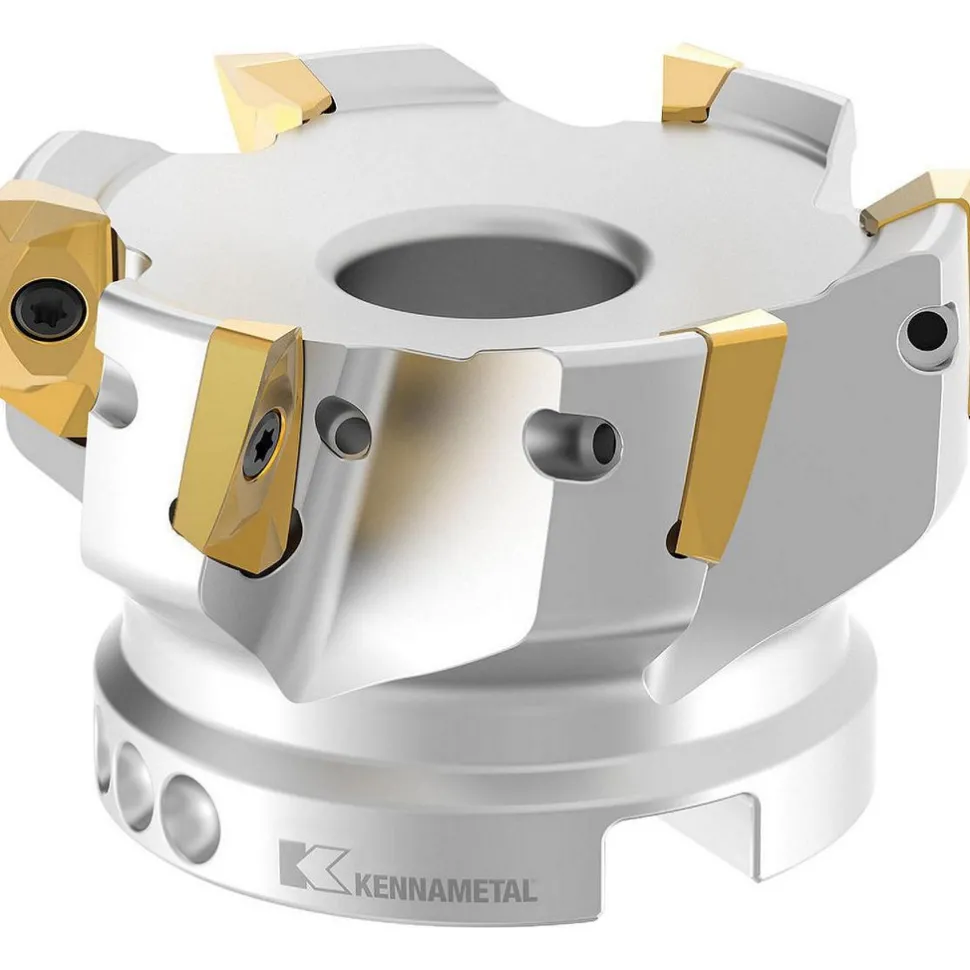

2" Cut Dia, 3/4" Arbor Hole Dia, 14mm Max Depth, Indexable Square-Shoulder Face Mill

2″ Cut Dia, 3/4″ Arbor Hole Dia, 14mm Max Depth, Indexable Square-Shoulder Face Mill

128,89 $

SKU: SKUyM4wDT8Xl2 Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Maximum Cutting Diameter (Inch): 2	Maximum Cutting Diameter (Decimal Inch): 2.0000
Maximum Depth of Cut (mm): 14.00	Arbor Hole Diameter (Inch): 3/4
Compatible Insert Size Code: E.. 14..	Cutter Style: M1
Cutting Direction: Right Hand	Insert Holding Method: Screw; Clamp
Lead Angle: 0	Series: Mill 1-14
Maximum Body Diameter (Decimal Inch): 1.9360	Overall Height (mm): 40.00
Hub Diameter (Inch): 1-3/4	Coolant Hole Diameter (Decimal Inch): 0.0940
UNSPSC Code: 27112803	Toolholder Material: Steel
Coolant Through: Yes	Number Of Cutter Inserts: 3
Number Of Flutes: 3
Maximum Cutting Diameter (Inch): 2
Maximum Cutting Diameter (Decimal Inch): 2.0000
Maximum Depth of Cut (mm): 14.00
Arbor Hole Diameter (Inch): 3/4
Compatible Insert Size Code: E.. 14..
Cutter Style: M1
Cutting Direction: Right Hand
Insert Holding Method: Screw; Clamp
Lead Angle: 0
Series: Mill 1-14
Maximum Body Diameter (Decimal Inch): 1.9360
Overall Height (mm): 40.00
Hub Diameter (Inch): 1-3/4
Coolant Hole Diameter (Decimal Inch): 0.0940
UNSPSC Code: 27112803
Toolholder Material: Steel
Coolant Through: Yes
Number Of Cutter Inserts: 3
Number Of Flutes: 3
