Sale!

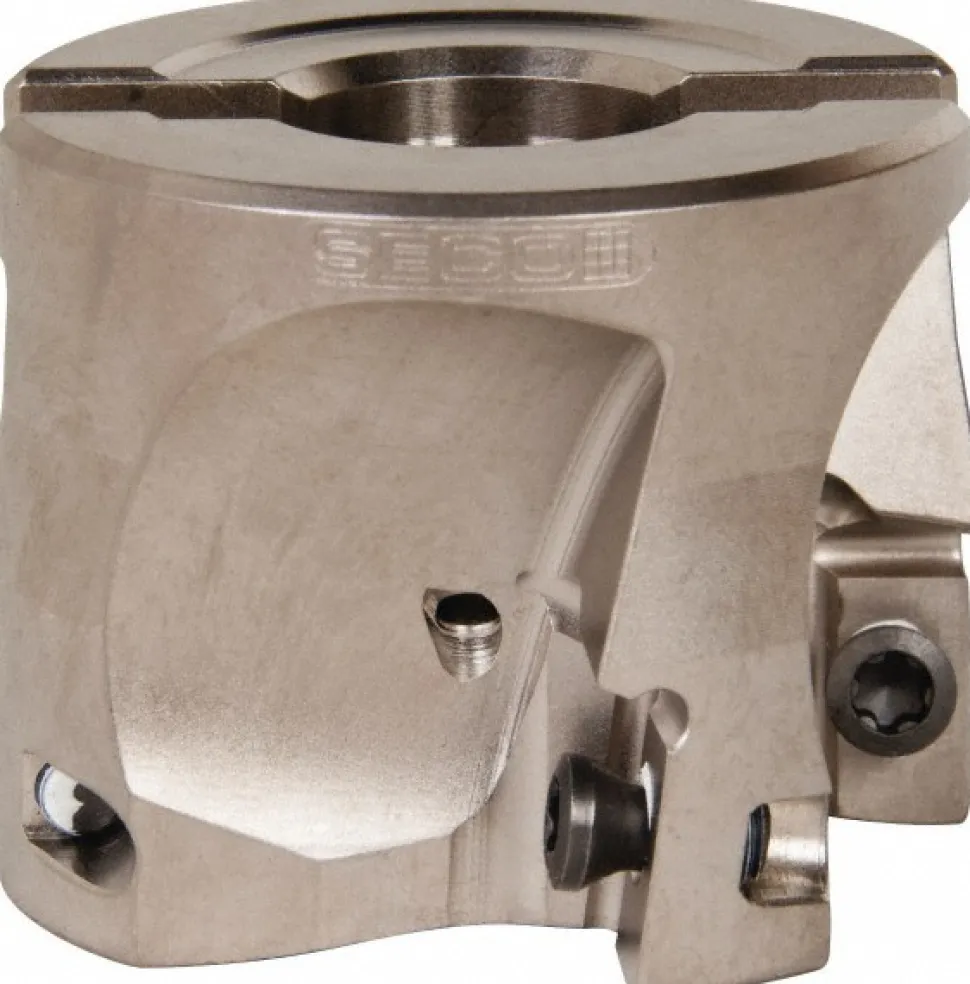

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.669″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 867,00 $.120,99 $Current price is: 120,99 $.
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.6690 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: XO X1806 |
| Cutter Style: R220.69 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Rake: Positive (Axial); Negative (Radial) | Series: Power Turbo |
| Maximum Ramping Angle: 3.00 | Overall Height (Decimal Inch): 1.5750 |
| Keyway Width (mm): 8.20 | Hub Diameter (mm): 47.00 |
| Pitch Type: Medium | Tool Application: Helical Interpolation; Ramping; Slotting |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 4 | Number Of Flutes: 4 |
| Country of Origin: India | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.6690 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: XO X1806 | |
| Cutter Style: R220.69 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Positive (Axial); Negative (Radial) | |
| Series: Power Turbo | |
| Maximum Ramping Angle: 3.00 | |
| Overall Height (Decimal Inch): 1.5750 | |
| Keyway Width (mm): 8.20 | |
| Hub Diameter (mm): 47.00 | |
| Pitch Type: Medium | |
| Tool Application: Helical Interpolation; Ramping; Slotting | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 4 | |
| Number Of Flutes: 4 | |
| Country of Origin: India |
| MSC# | 83250738 |
| Mfr# | 02694975 |
| Big Book# | 670 |
Be the first to review “2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.669″ Max Depth, Indexable Square-Shoulder Face Mill”
