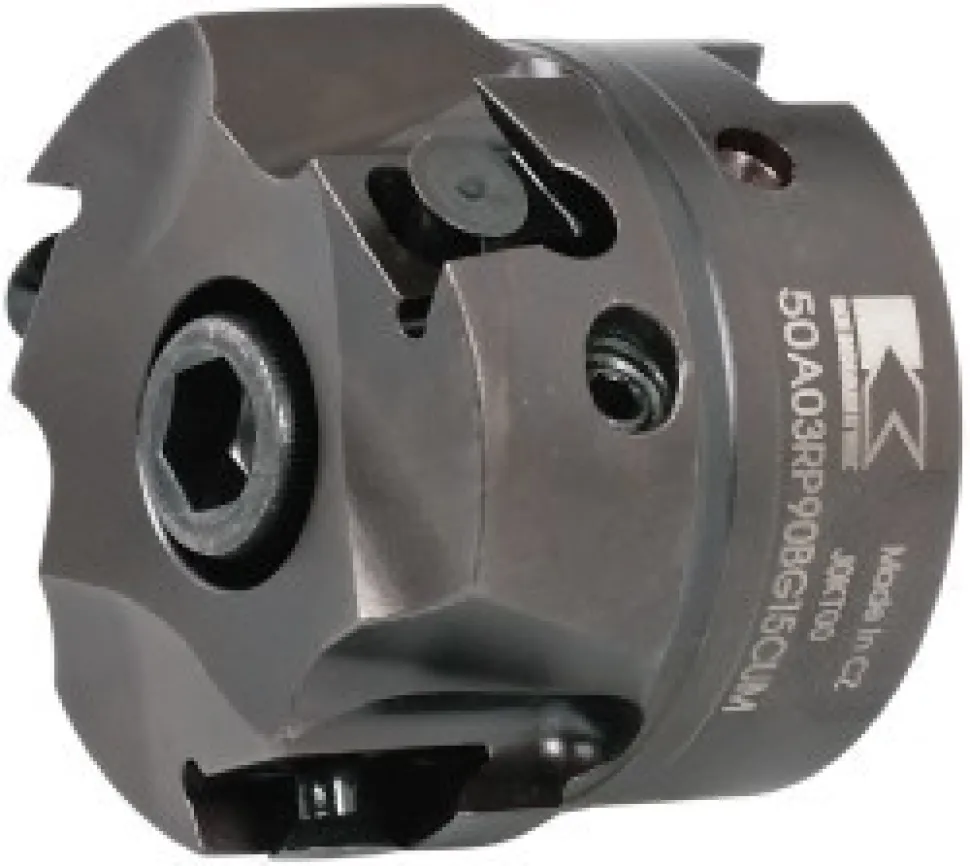

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.394″ Max Depth, Indexable Square-Shoulder Face Mill

138,89 $

SKU: SKUThqymL9oxd Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Maximum Cutting Diameter (Inch): 2	Maximum Cutting Diameter (Decimal Inch): 2.0000
Maximum Cutting Diameter (mm): 50.80	Maximum Depth of Cut (Decimal Inch): 0.3940
Arbor Hole Diameter (Inch): 3/4	Arbor Hole Diameter (Decimal Inch): 0.7500
Compatible Insert Size Code: BGHX 15L5…	Cutting Direction: Right Hand
Insert Holding Method: Clamp	Lead Angle: 0/90
Rake: Positive	Rake Angle: 24.00
Series: Fix-Perfect	Maximum Body Diameter (Decimal Inch): 1.9060
Overall Height (mm): 39.88	Overall Height (Decimal Inch): 1.5700
Keyway Width (mm): 8.31	Keyway Width (Decimal Inch): 0.3272
Hub Diameter (mm): 44.45	Hub Diameter (Decimal Inch): 1.7500
Hub Diameter (Inch): 1-3/4	UNSPSC Code: 27112803
Coolant Through: No	Number Of Cutter Inserts: 3
Number Of Flutes: 3	Country of Origin: Czechia
Maximum Cutting Diameter (Inch): 2
Maximum Cutting Diameter (Decimal Inch): 2.0000
Maximum Cutting Diameter (mm): 50.80
Maximum Depth of Cut (Decimal Inch): 0.3940
Arbor Hole Diameter (Inch): 3/4
Arbor Hole Diameter (Decimal Inch): 0.7500
Compatible Insert Size Code: BGHX 15L5…
Cutting Direction: Right Hand
Insert Holding Method: Clamp
Lead Angle: 0/90
Rake: Positive
Rake Angle: 24.00
Series: Fix-Perfect
Maximum Body Diameter (Decimal Inch): 1.9060
Overall Height (mm): 39.88
Overall Height (Decimal Inch): 1.5700
Keyway Width (mm): 8.31
Keyway Width (Decimal Inch): 0.3272
Hub Diameter (mm): 44.45
Hub Diameter (Decimal Inch): 1.7500
Hub Diameter (Inch): 1-3/4
UNSPSC Code: 27112803
Coolant Through: No
Number Of Cutter Inserts: 3
Number Of Flutes: 3
Country of Origin: Czechia
