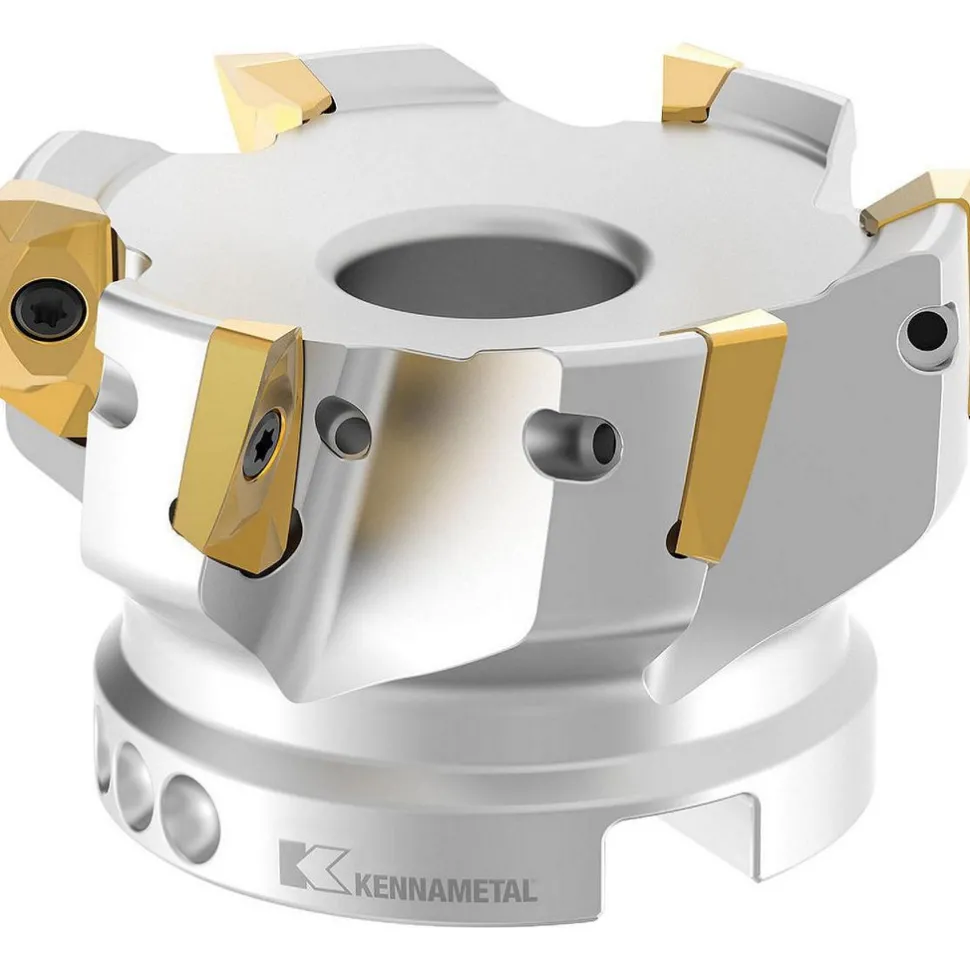

2-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 14.22mm Max Depth, Indexable Square-Shoulder Face Mill
140,99 $
Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Cutting Diameter (mm): 63.50 |
| Maximum Depth of Cut (mm): 14.22 | Maximum Depth of Cut (Decimal Inch): 0.5600 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: EP14..; EC14.. | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 0/90 |
| Series: Mill 1-14 | Maximum Body Diameter (Decimal Inch): 2.4490 |
| Overall Height (mm): 40.00 | Overall Height (Decimal Inch): 1.5750 |
| Keyway Width (Decimal Inch): 0.3300 | Hub Diameter (mm): 44.45 |
| Hub Diameter (Decimal Inch): 1.7500 | Hub Diameter (Inch): 1-3/4 |
| Coolant Hole Diameter (Decimal Inch): 3.0000 | UNSPSC Code: 27112803 |
| Coolant Through: Yes | Number Of Cutter Inserts: 5 |
| Number Of Flutes: 5 | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (mm): 63.50 | |
| Maximum Depth of Cut (mm): 14.22 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: EP14..; EC14.. | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: Mill 1-14 | |
| Maximum Body Diameter (Decimal Inch): 2.4490 | |
| Overall Height (mm): 40.00 | |
| Overall Height (Decimal Inch): 1.5750 | |
| Keyway Width (Decimal Inch): 0.3300 | |
| Hub Diameter (mm): 44.45 | |
| Hub Diameter (Decimal Inch): 1.7500 | |
| Hub Diameter (Inch): 1-3/4 | |
| Coolant Hole Diameter (Decimal Inch): 3.0000 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 |
| MSC# | 01231034 |
| Mfr# | 2624274 |
| Big Book# | 711 |
