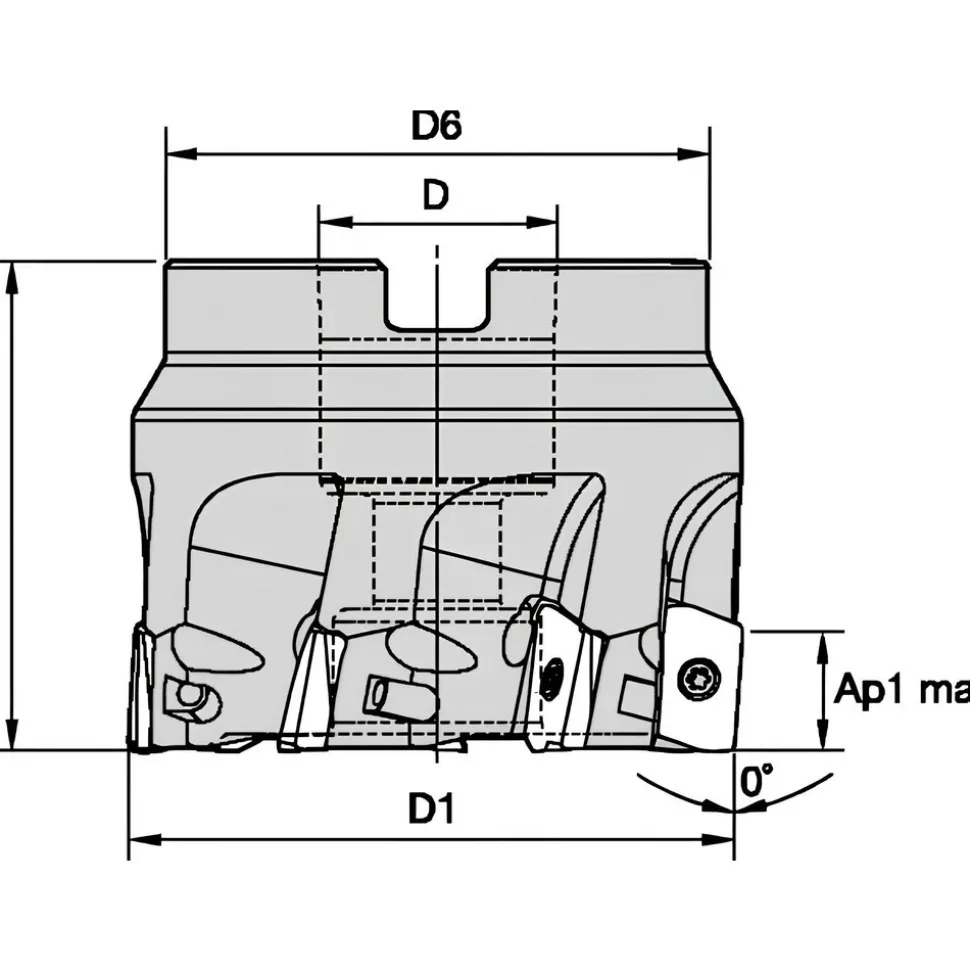

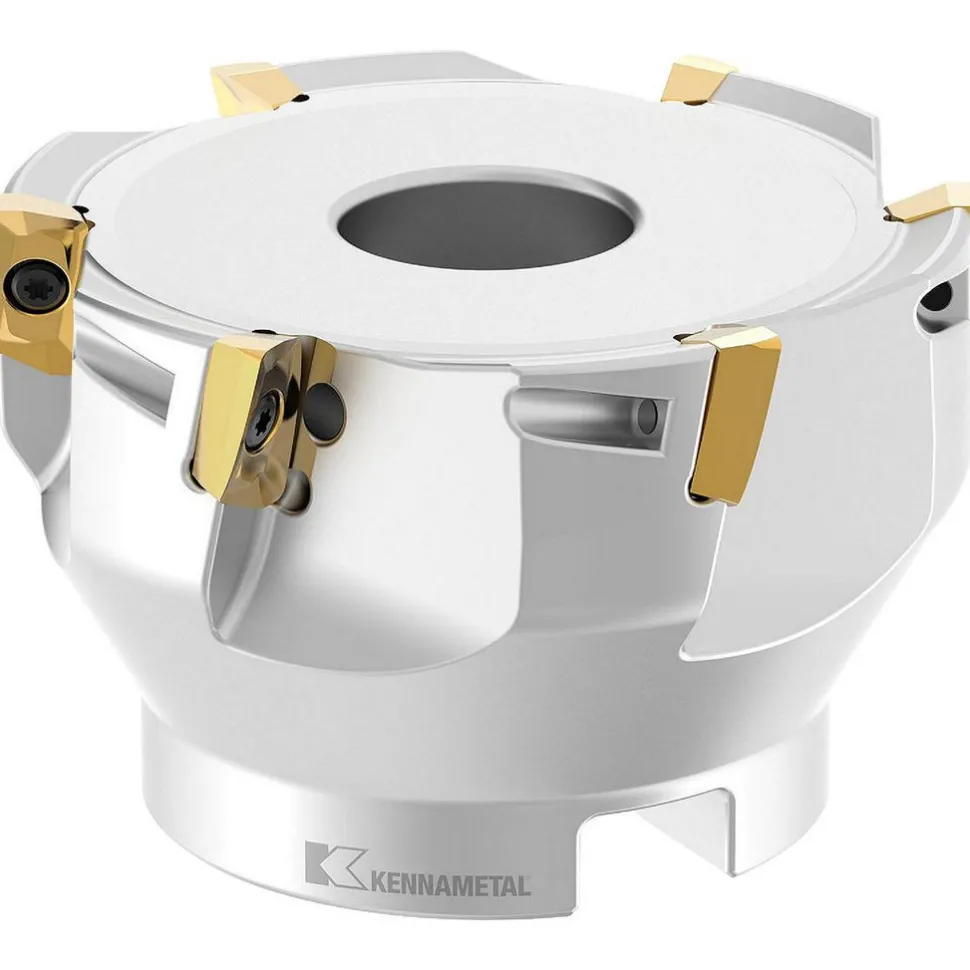

2-1/2" Cut Dia, 3/4" Arbor Hole Dia, 0.389" Max Depth, Indexable Square-Shoulder Face Mill

2-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.389″ Max Depth, Indexable Square-Shoulder Face Mill

Original price was: 897,00 $.Current price is: 124,89 $.

SKU: SKUmIb7JjrLTK Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Maximum Cutting Diameter (Inch): 2-1/2	Maximum Depth of Cut (Decimal Inch): 0.3890
Arbor Hole Diameter (Inch): 3/4	Arbor Hole Diameter (Decimal Inch): 0.7500
Compatible Insert Size Code: EP10..; EC10..	Cutting Direction: Right Hand
Insert Holding Method: Screw; Clamp	Lead Angle: 0/90
Series: Mill 1-10	Overall Height (Decimal Inch): 1.5750
Hub Diameter (Decimal Inch): 1.7500	Hub Diameter (Inch): 1-3/4
Pitch Type: Coarse	UNSPSC Code: 27112803
Coolant Through: No	Number Of Cutter Inserts: 6
Number Of Flutes: 6	Country of Origin: Bulgaria
Maximum Cutting Diameter (Inch): 2-1/2
Maximum Depth of Cut (Decimal Inch): 0.3890
Arbor Hole Diameter (Inch): 3/4
Arbor Hole Diameter (Decimal Inch): 0.7500
Compatible Insert Size Code: EP10..; EC10..
Cutting Direction: Right Hand
Insert Holding Method: Screw; Clamp
Lead Angle: 0/90
Series: Mill 1-10
Overall Height (Decimal Inch): 1.5750
Hub Diameter (Decimal Inch): 1.7500
Hub Diameter (Inch): 1-3/4
Pitch Type: Coarse
UNSPSC Code: 27112803
Coolant Through: No
Number Of Cutter Inserts: 6
Number Of Flutes: 6
Country of Origin: Bulgaria
