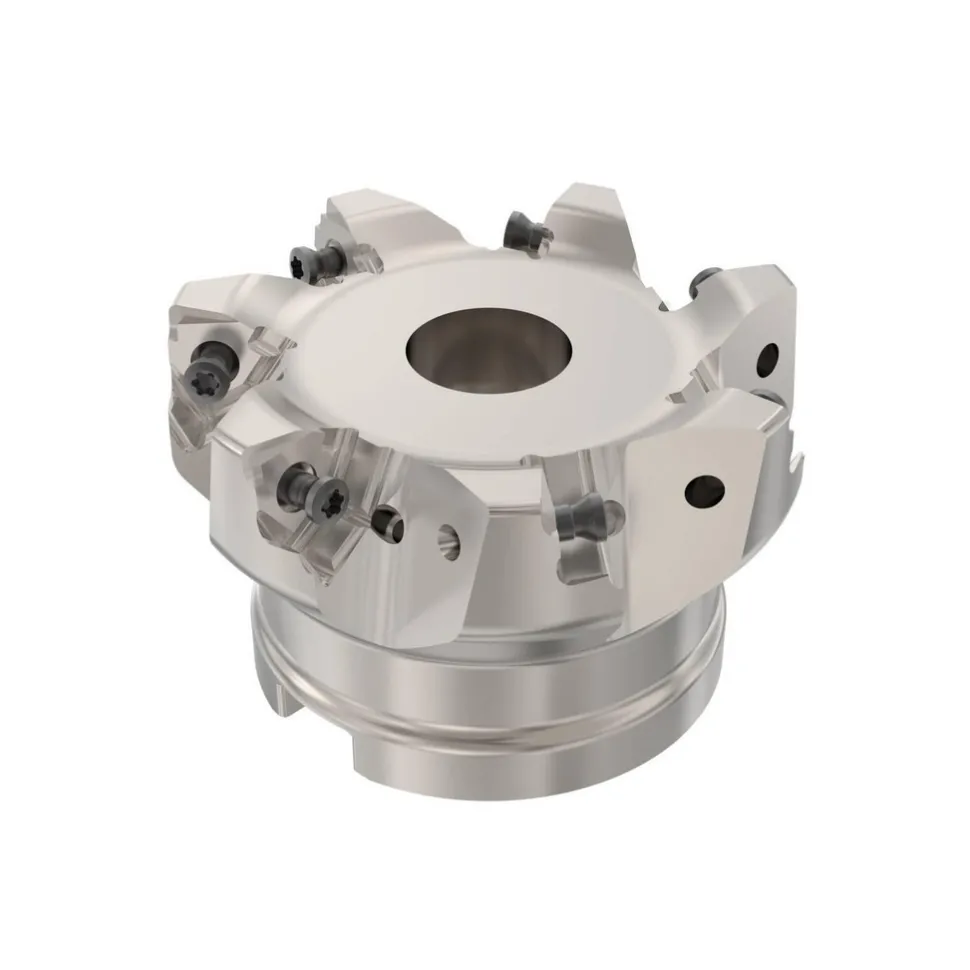

2-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.295″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 1 048,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Depth of Cut (Decimal Inch): 0.2950 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: XNEX 0806 | Cutter Style: R220.96 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Rake: Negative |
| Series: Square 6 | Maximum Ramping Angle: 0.00 |
| Overall Height (Decimal Inch): 1.5700 | Keyway Width (Decimal Inch): 0.3200 |
| Hub Diameter (mm): 47.00 | Pitch Type: Medium |
| Tool Application: Slotting | UNSPSC Code: 27112803 |
| Coolant Through: Yes | Number Of Cutter Inserts: 6 |
| Number Of Flutes: 6 | Country of Origin: France |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.2950 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: XNEX 0806 | |
| Cutter Style: R220.96 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Negative | |
| Series: Square 6 | |
| Maximum Ramping Angle: 0.00 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (Decimal Inch): 0.3200 | |
| Hub Diameter (mm): 47.00 | |
| Pitch Type: Medium | |
| Tool Application: Slotting | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Country of Origin: France |
| MSC# | 55189773 |
| Mfr# | 02642874 |
| Big Book# | 671 |
