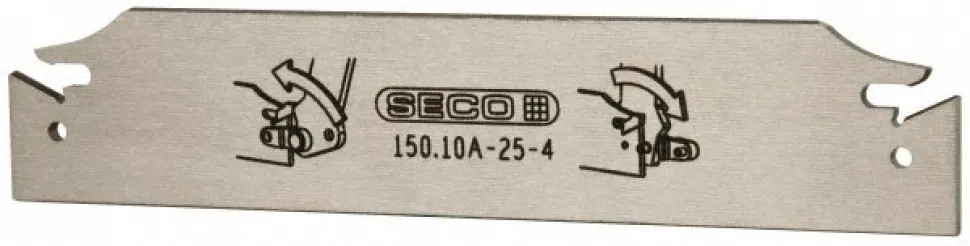

150.10A Double End Neutral Indexable Cutoff Blade

126,89 $

Specifications

End Type: Double	Cutting Direction: Neutral
Hand: Left Hand; Right Hand	Blade Height (Decimal Inch): 0.9840
Blade Width (Decimal Inch): 0.1300	Blade Overall Length (Decimal Inch): 5.9100
Blade Style: 150.10A	Insert Holding Method: Self Grip
Maximum Workpiece Diameter (Decimal Inch): 4.8000	Series: 150.10
Tool Block Style: 150.10-25	Cutting Tool Application: Parting
Standards: ISO	Insert Seat Size: 4
Cutting Height (Decimal Inch): 0.9840	Minimum Insert Width (Decimal Inch): 0.1610
Insert Corner Radius (Decimal Inch): 0.0090	Complete Insert Compatibility: 150.10-4..
Complete Tool Block/Toolholder Style Compatibility: 150.10-…-25	MSC/Manufacturer Number: 150.10A-25-4
Insert Width: 0.1610	UNSPSC Code: 23241600
Country of Origin: Sweden
End Type: Double
Cutting Direction: Neutral
Hand: Left Hand; Right Hand
Blade Height (Decimal Inch): 0.9840
Blade Width (Decimal Inch): 0.1300
Blade Overall Length (Decimal Inch): 5.9100
Blade Style: 150.10A
Insert Holding Method: Self Grip
Maximum Workpiece Diameter (Decimal Inch): 4.8000
Series: 150.10
Tool Block Style: 150.10-25
Cutting Tool Application: Parting
Standards: ISO
Insert Seat Size: 4
Cutting Height (Decimal Inch): 0.9840
Minimum Insert Width (Decimal Inch): 0.1610
Insert Corner Radius (Decimal Inch): 0.0090
Complete Insert Compatibility: 150.10-4..
Complete Tool Block/Toolholder Style Compatibility: 150.10-…-25
MSC/Manufacturer Number: 150.10A-25-4
Insert Width: 0.1610
UNSPSC Code: 23241600
Country of Origin: Sweden
