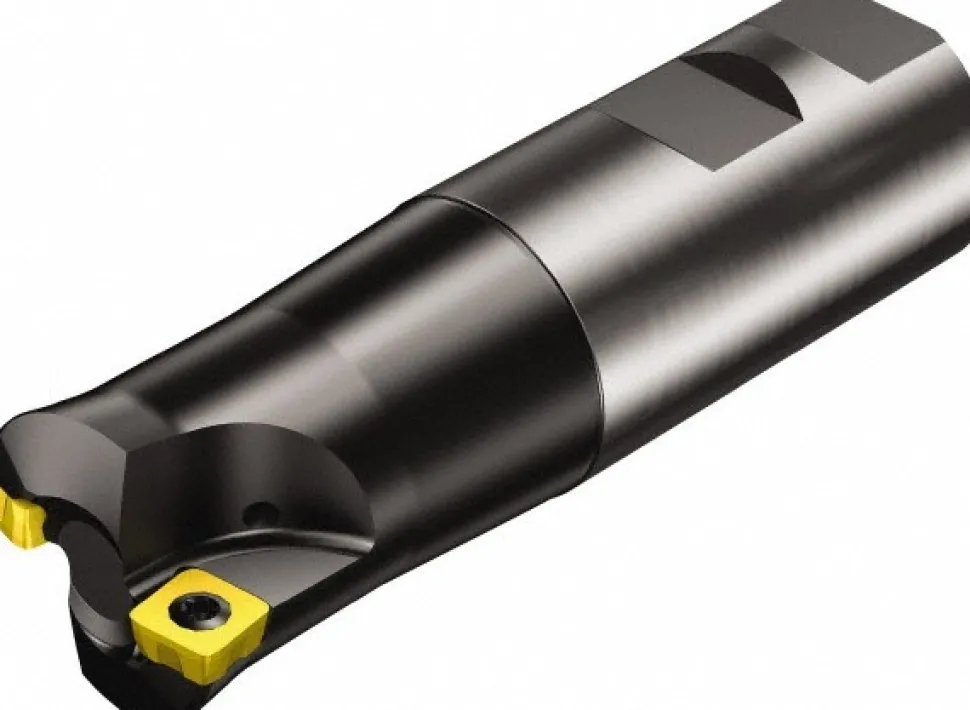

11.3mm Cut Dia, 1″ Arbor Hole Dia, 1.2mm Max Depth, Indexable Square-Shoulder Face Mill
132,89 $
Specifications
| Maximum Cutting Diameter (Decimal Inch): 0.4449 | Maximum Cutting Diameter (mm): 11.30 |
| Maximum Depth of Cut (mm): 1.20 | Maximum Depth of Cut (Decimal Inch): 0.0472 |
| Arbor Hole Diameter (Inch): 1 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: R210-090412M | Cutter Style: RA210 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 10 | Rake: Positive |
| Series: CoroMill 210 | Maximum Body Diameter (Decimal Inch): 0.4449 |
| Overall Height (mm): 130.57 | Overall Height (Decimal Inch): 5.1406 |
| Hub Diameter (mm): 25.40 | Hub Diameter (Decimal Inch): 1.2000 |
| Hub Diameter (Inch): 1 | Pitch Type: Close |
| Cutting Edge Length (Decimal Inch): 0.0472 | Complete Insert Compatibility: R210-090412M- |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: Yes | Number Of Cutter Inserts: 2 |
| Number Of Flutes: 2 | Country of Origin: UNITED STATES |
| Maximum Cutting Diameter (Decimal Inch): 0.4449 | |
| Maximum Cutting Diameter (mm): 11.30 | |
| Maximum Depth of Cut (mm): 1.20 | |
| Maximum Depth of Cut (Decimal Inch): 0.0472 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: R210-090412M | |
| Cutter Style: RA210 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 10 | |
| Rake: Positive | |
| Series: CoroMill 210 | |
| Maximum Body Diameter (Decimal Inch): 0.4449 | |
| Overall Height (mm): 130.57 | |
| Overall Height (Decimal Inch): 5.1406 | |
| Hub Diameter (mm): 25.40 | |
| Hub Diameter (Decimal Inch): 1.2000 | |
| Hub Diameter (Inch): 1 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.0472 | |
| Complete Insert Compatibility: R210-090412M- | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 2 | |
| Number Of Flutes: 2 | |
| Country of Origin: UNITED STATES |
| MSC# | 52064839 |
| Mfr# | 5738746 |
