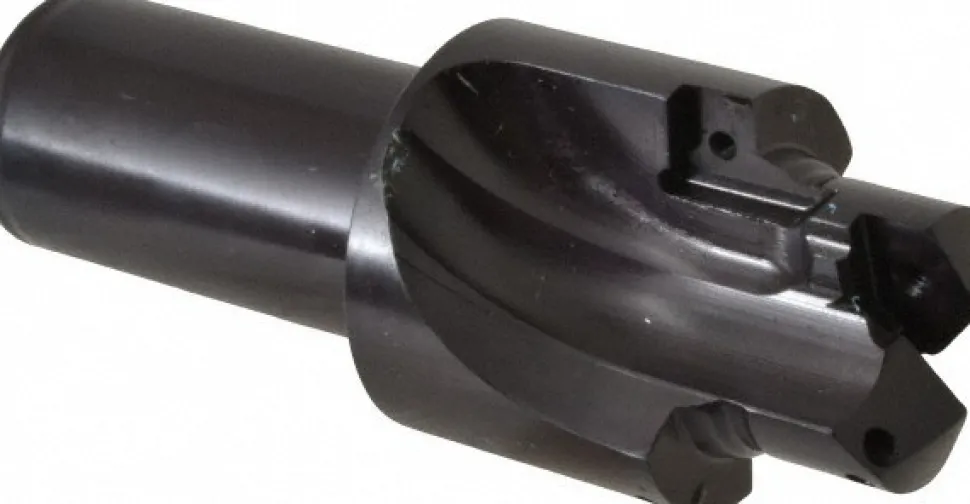

1-5/16-12, 1.231″ Pilot Dia, 1.907″ Spotface Dia, 0.906″ Pilot Length, Tube Dash 16, Indexable Porting Tool

132,89 $

SKU: SKU2dmzxxbMmj Categories: Indexable Cutting Tools, Indexable Holemaking, Shop All Products Tag: Allied Machine And Engineering Brand: Allied Machine And Engineering

Description
Reviews (0)

Specifications

Port Standard Designation: IS0 11926-1; SAE J1926-1/MS-16142	Pilot Insert Type: Spade Blade Insert
Port Thread Size: 1-5/16-12	Tube Dash Number: 16.000
Pilot Diameter (Decimal Inch): 1.2310	Spotface Diameter (Decimal Inch): 1.9070
Shank Diameter (Inch): 0.3125	Compatible Insert Style: J1926
Number of Porting Inserts: 2	Compatible Insert Size Code: 4C12H-1.231; 452H-1.231
Coated: Coated	Porting Diameter (Decimal Inch): 1.4000
Overall Length (Decimal Inch): 4.9210	Seal Angle Length: 0.318 in
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; H; K; N
Through Coolant: No; Yes	Porting Angle: 15
Porting Angle Length (Decimal Inch): 0.1380	Head Length (Decimal Inch): 2.6400
Shank Length (Decimal Inch): 2.2810	Series: AccuPort 432
UNSPSC Code: 23241603	Country of Origin: UNITED STATES
Port Standard Designation: IS0 11926-1; SAE J1926-1/MS-16142
Pilot Insert Type: Spade Blade Insert
Port Thread Size: 1-5/16-12
Tube Dash Number: 16.000
Pilot Diameter (Decimal Inch): 1.2310
Spotface Diameter (Decimal Inch): 1.9070
Shank Diameter (Inch): 0.3125
Compatible Insert Style: J1926
Number of Porting Inserts: 2
Compatible Insert Size Code: 4C12H-1.231; 452H-1.231
Coated: Coated
Porting Diameter (Decimal Inch): 1.4000
Overall Length (Decimal Inch): 4.9210
Seal Angle Length: 0.318 in
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; H; K; N
Through Coolant: No; Yes
Porting Angle: 15
Porting Angle Length (Decimal Inch): 0.1380
Head Length (Decimal Inch): 2.6400
Shank Length (Decimal Inch): 2.2810
Series: AccuPort 432
UNSPSC Code: 23241603
Country of Origin: UNITED STATES
