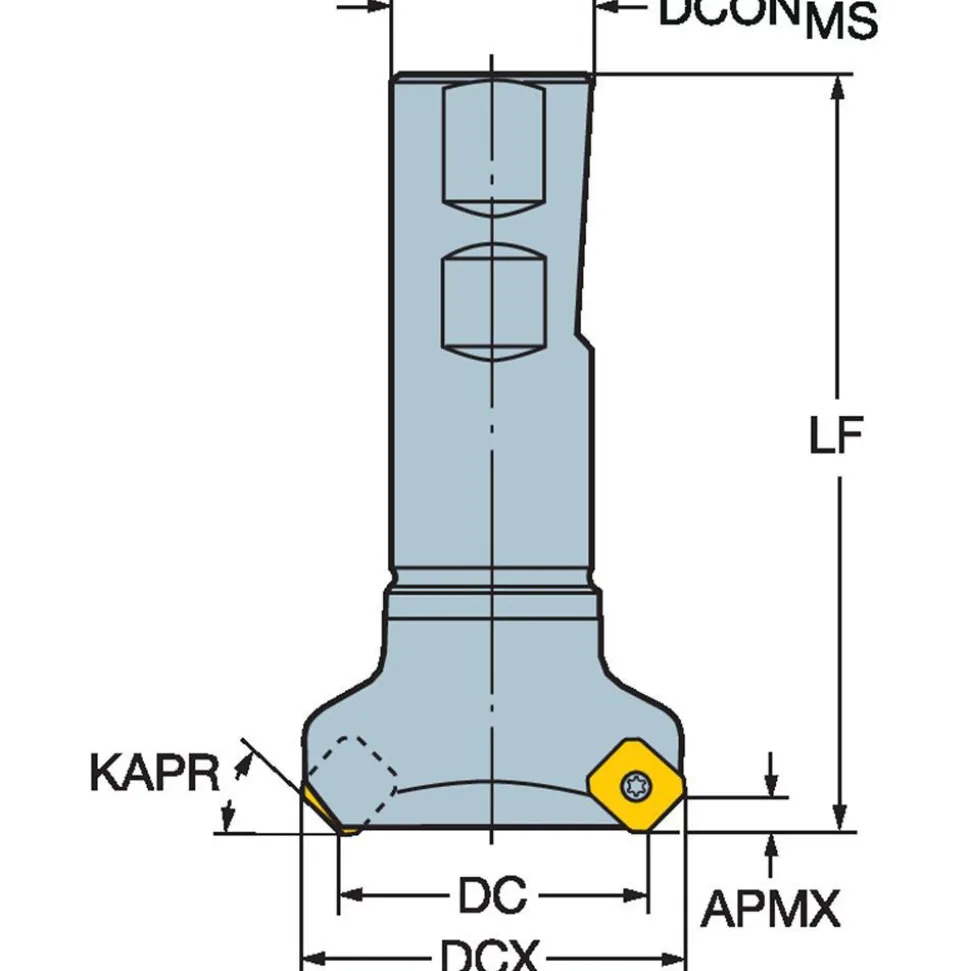

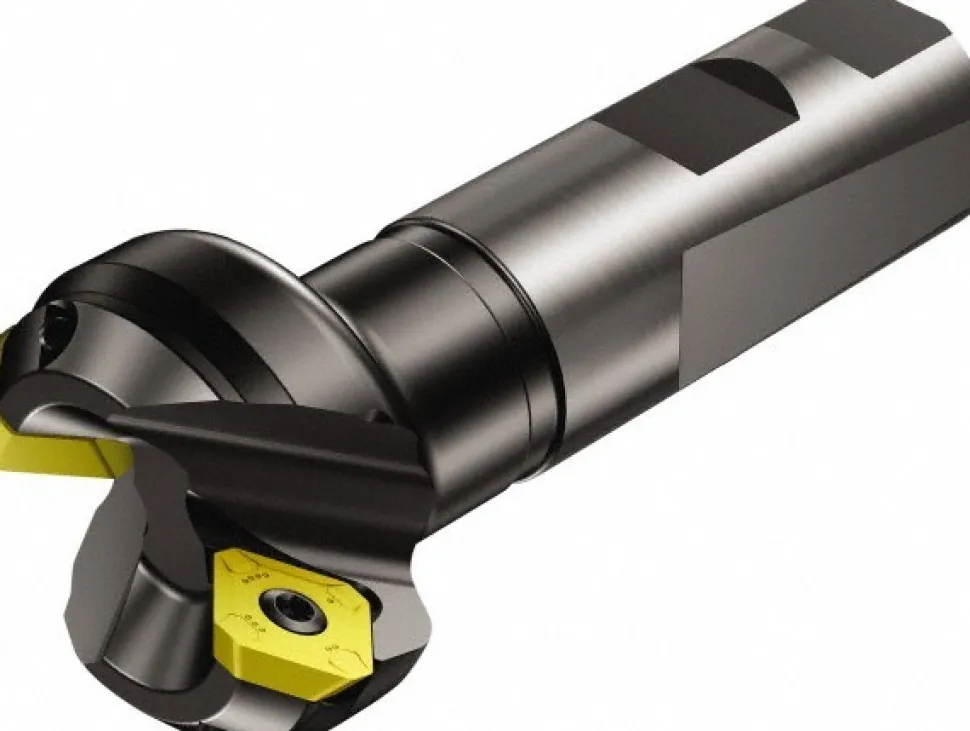

1-1/4″ Cut Dia, 1″ Arbor Hole Dia, 6.096mm Max Depth, Indexable Square-Shoulder Face Mill
136,89 $
Specifications
| Maximum Cutting Diameter (Inch): 1-1/4 | Maximum Cutting Diameter (mm): 31.75 |
| Maximum Depth of Cut (mm): 6.10 | Maximum Depth of Cut (Decimal Inch): 0.2400 |
| Arbor Hole Diameter (Inch): 1 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: R245-12T3.. | Cutter Style: RA245 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 45 | Rake: Positive |
| Series: CoroMill 245 | Maximum Body Diameter (Decimal Inch): 1.2500 |
| Overall Height (mm): 98.00 | Overall Height (Decimal Inch): 3.8583 |
| Hub Diameter (mm): 25.40 | Hub Diameter (Decimal Inch): 1.0000 |
| Hub Diameter (Inch): 1 | Pitch Type: Close |
| Cutting Edge Length (Decimal Inch): 0.2400 | Complete Insert Compatibility: R245-12T3.. |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: No | Number Of Cutter Inserts: 3 |
| Number Of Flutes: 3 | Country of Origin: UNITED STATES |
| Maximum Cutting Diameter (Inch): 1-1/4 | |
| Maximum Cutting Diameter (mm): 31.75 | |
| Maximum Depth of Cut (mm): 6.10 | |
| Maximum Depth of Cut (Decimal Inch): 0.2400 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: R245-12T3.. | |
| Cutter Style: RA245 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 45 | |
| Rake: Positive | |
| Series: CoroMill 245 | |
| Maximum Body Diameter (Decimal Inch): 1.2500 | |
| Overall Height (mm): 98.00 | |
| Overall Height (Decimal Inch): 3.8583 | |
| Hub Diameter (mm): 25.40 | |
| Hub Diameter (Decimal Inch): 1.0000 | |
| Hub Diameter (Inch): 1 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.2400 | |
| Complete Insert Compatibility: R245-12T3.. | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 3 | |
| Number Of Flutes: 3 | |
| Country of Origin: UNITED STATES |
| MSC# | 77651016 |
| Mfr# | 5738657 |
