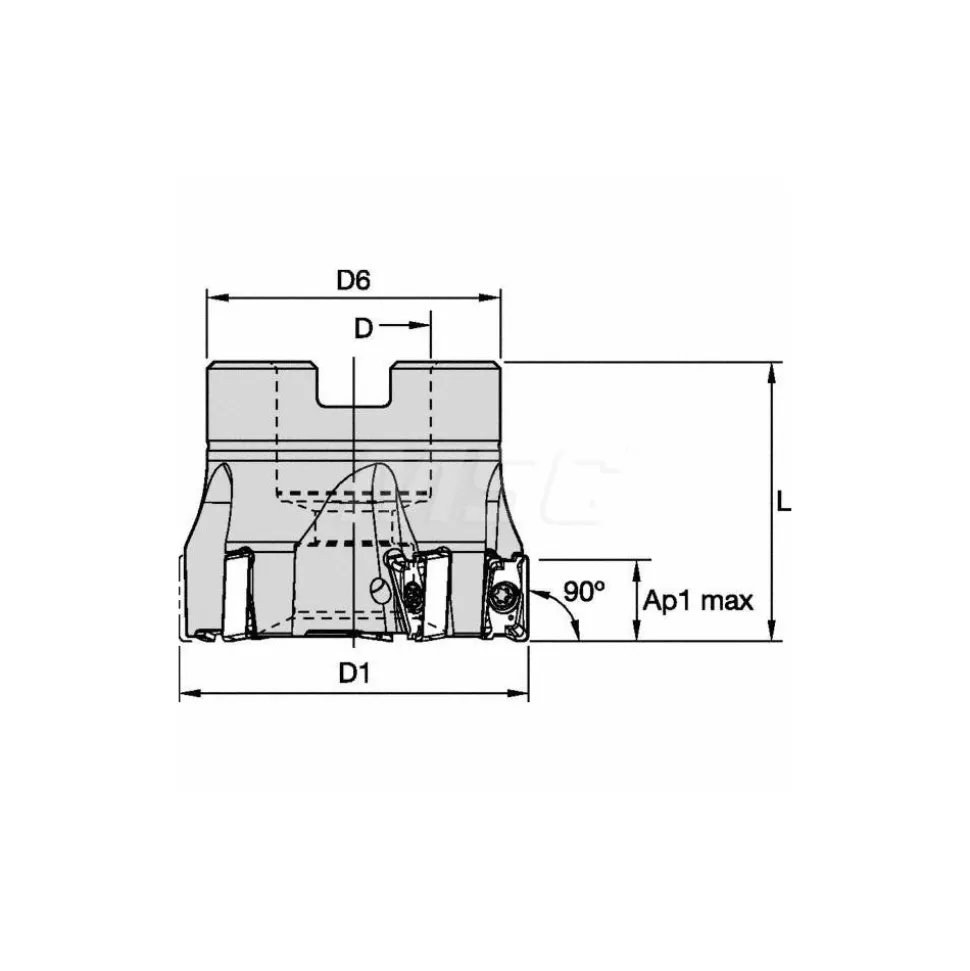

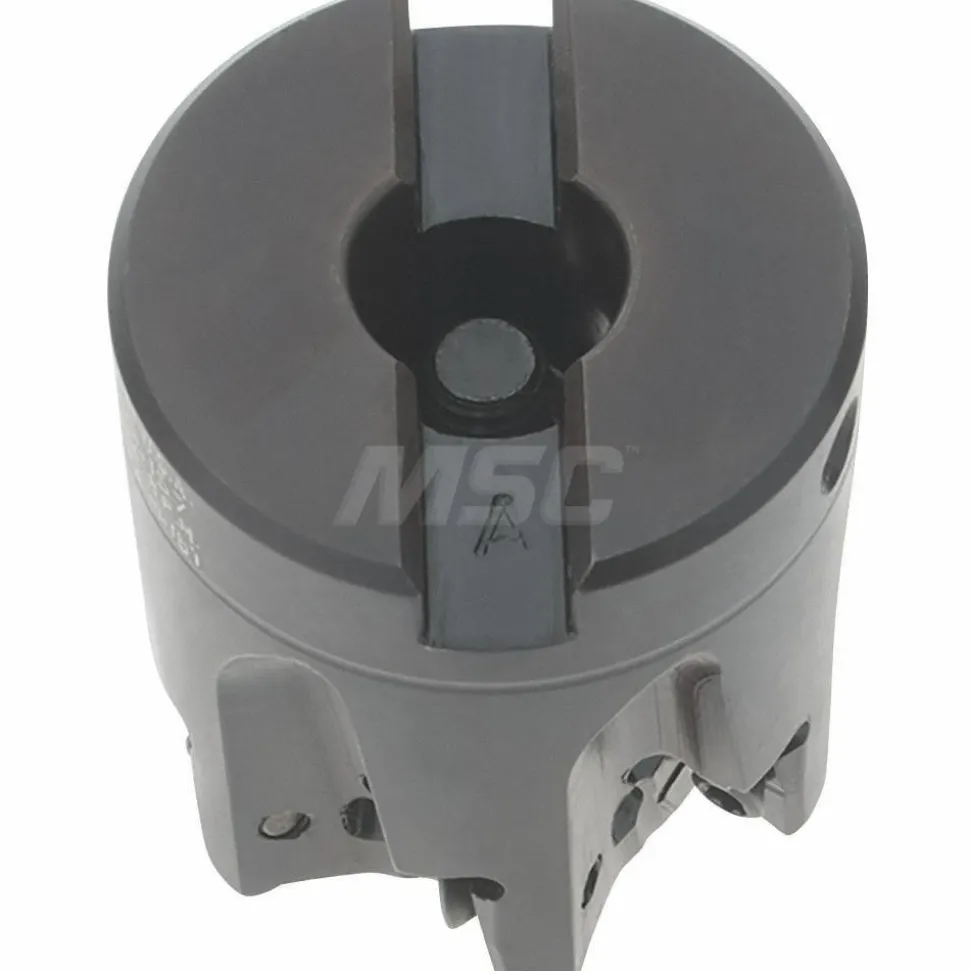

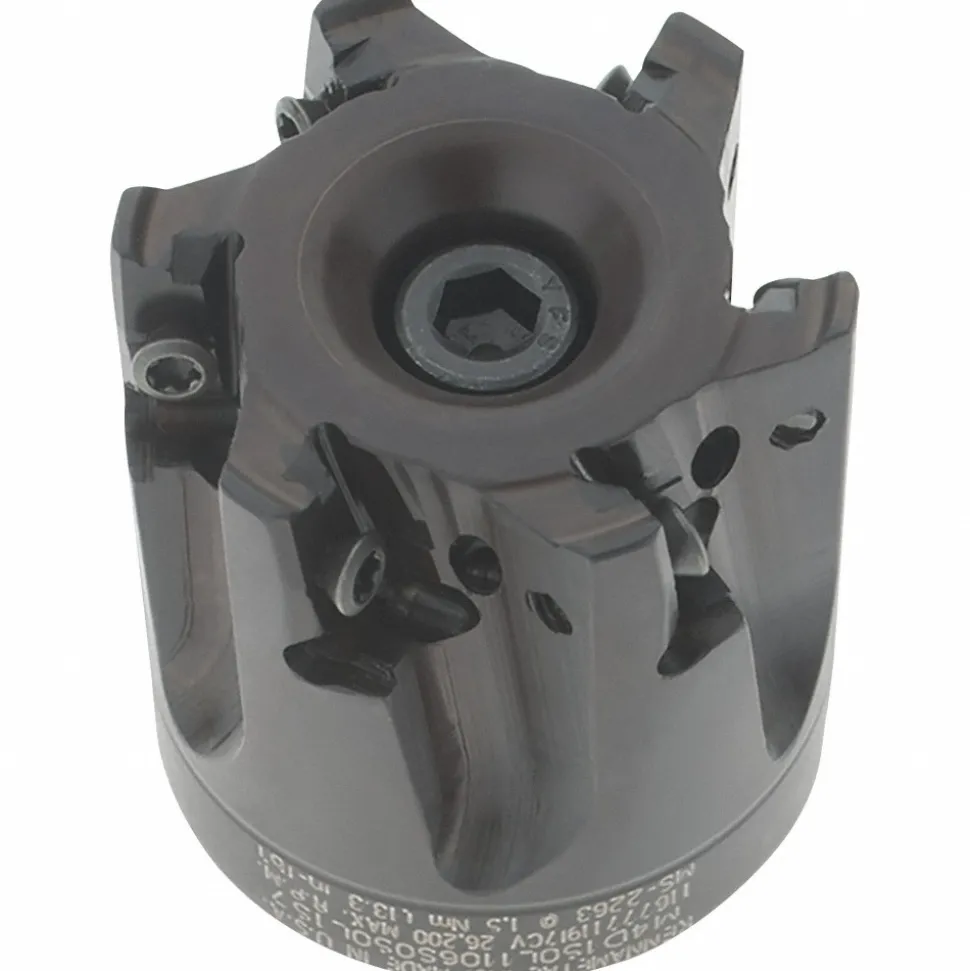

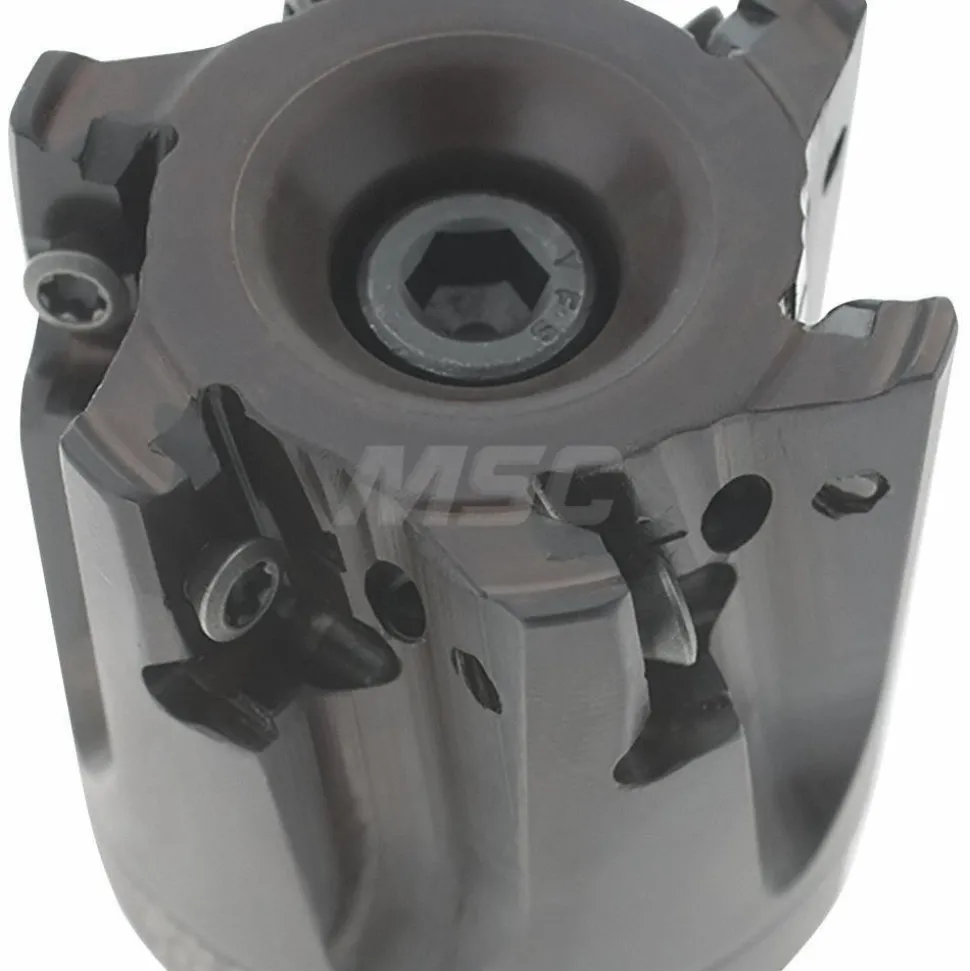

1-1/2" Cut Dia, 1/2" Arbor Hole Dia, 11mm Max Depth, Indexable Square-Shoulder Face Mill

1-1/2″ Cut Dia, 1/2″ Arbor Hole Dia, 11mm Max Depth, Indexable Square-Shoulder Face Mill

136,99 $

SKU: SKUbrBwCHJ3O7 Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Maximum Cutting Diameter (Inch): 1-1/2	Maximum Depth of Cut (mm): 11.00
Arbor Hole Diameter (Inch): 1/2	Arbor Hole Diameter (Decimal Inch): 0.5000
Compatible Insert Size Code: LNGU110408SRGE	Cutting Direction: Right Hand
Insert Holding Method: Screw; Clamp	Lead Angle: 0
Rake: Negative	Series: Mill 4-11
Maximum Body Diameter (Decimal Inch): 1.4210	Overall Height (mm): 40.00
Hub Diameter (mm): 36.10	Coolant Hole Diameter (Decimal Inch): 0.0870
UNSPSC Code: 27112803	Toolholder Material: Steel
Coolant Through: Yes	Number Of Cutter Inserts: 6
Number Of Flutes: 6	Country of Origin: UNITED STATES
Maximum Cutting Diameter (Inch): 1-1/2
Maximum Depth of Cut (mm): 11.00
Arbor Hole Diameter (Inch): 1/2
Arbor Hole Diameter (Decimal Inch): 0.5000
Compatible Insert Size Code: LNGU110408SRGE
Cutting Direction: Right Hand
Insert Holding Method: Screw; Clamp
Lead Angle: 0
Rake: Negative
Series: Mill 4-11
Maximum Body Diameter (Decimal Inch): 1.4210
Overall Height (mm): 40.00
Hub Diameter (mm): 36.10
Coolant Hole Diameter (Decimal Inch): 0.0870
UNSPSC Code: 27112803
Toolholder Material: Steel
Coolant Through: Yes
Number Of Cutter Inserts: 6
Number Of Flutes: 6
Country of Origin: UNITED STATES
